Strainrite delivers GMP-grade filter bags, cartridges, and vessels engineered for the exacting purity and compliance requirements of chemical manufacturing and active pharmaceutical ingredient production. Featuring validated sterilizing-grade Mem-Pleat SG membranes, Endo-MAXX CN endotoxin reduction filters, Cellulose Acetate membranes for low-protein-binding applications, and Duo-Pleat pre-final dual cartridges — all from our 81,000 ft² ISO 9001-certified facility in Auburn, Maine.
The global active pharmaceutical ingredients (API) market was valued at approximately USD 144 billion in 2025 and is projected to reach USD 198 billion by 2030 at a CAGR of 6.6%, driven by oncology, immunology, and biosimilar production demands. With the pharmaceutical membrane filtration market valued at approximately USD 9.3 billion in 2024 and projected to reach USD 15.6 billion by 2029 (Market Data Forecast), the demand for validated, high-performance liquid filtration is intensifying. Strainrite's latest product catalog introduces Mem-Pleat C & Pur-MAXX C Cellulose Acetate membrane cartridges (naturally low-binding for maximum protein recovery), expanded Duo-Pleat & Duo-MAXX dual-pleated cartridges that combine pre-filtration and final membrane in a single element, and Brevi-MAXX compact cartridges for pilot-scale and POU applications. Combined with our proven Mem-Pleat SG sterilizing-grade and Endo-MAXX CN endotoxin reduction lines, Strainrite provides a complete, validated filtration portfolio for chemical and API manufacturers.
Chemical processing and API manufacturing involve multi-step synthesis, purification, and finishing operations — each requiring validated filtration to ensure product purity, process consistency, and regulatory compliance. Strainrite provides solutions for every critical filtration stage.
01
Incoming chemicals, solvents, and intermediates may contain particulate, debris, and impurities from transport and storage. Strainrite's chemically resistant filter bags — including SPMF absolute-rated, Carbon & Chemical Ready, and Hi-Pro Micro bags — provide reliable pre-filtration that protects reactors, pumps, and downstream equipment. For high-flow applications, MADD-MAXX large-diameter pleated elements (7" OD, available in microglass, polypropylene microfiber, and resin-bonded media) and the new HIGH-FLOW elements (up to 500 GPM per 60" element) deliver exceptional throughput in corrosive chemical environments.
02
Multi-step chemical synthesis generates intermediates requiring purification between reaction stages. Strainrite's Clarity Membrane Cartridges — including Mem-Pleat N & Pur-MAXX N Nylon 6,6 (0.1–1.2µm for fine chemicals and API), Mem-Pleat CN & Pur-MAXX CN Charged Nylon (positive zeta potential for sub-micron particle and endotoxin capture), and the Mem-Pleat C & Pur-MAXX C Cellulose Acetate (naturally low-binding for maximum protein recovery in biological processing) — remove catalyst residues, precipitates, and byproducts. Pur-Pleat Select gradient-density depth cartridges with HSL technology excel at removing gels from viscous chemical streams.
03
Sterile and final filtration of APIs, buffers, and WFI demands validated performance. Strainrite's Mem-Pleat SG & Pur-MAXX SG sterilizing-grade PES membrane cartridges are validated for complete removal of Brevundimonas diminuta at 10⁷ CFU/cm² — meeting the highest standards for sterile fluid production. Integrity tested with bubble point, diffusion, and USP physiochemical test compliance, these 316 SS-reinforced cartridges serve vaccines, large volume parenterals, cell culture purification, and CIP/WFI water. The Duo-Pleat & Duo-MAXX dual-pleated cartridges combine a borosilicate microglass or polypropylene pre-filter with a PES, Nylon, or Polysulfone final membrane in a single element — extending final filter life and reducing processing time.
04
Endotoxin contamination in pharmaceutical water and injectable products poses critical safety risks. Strainrite's Endo-MAXX CN Charged Nylon cartridges are third-party verified to deliver >2 log reduction of bacterial endotoxin using the gel-clot characterization method — with 316 SS insert standard and validation documentation (validated #873474 — validation data available on request). Vent-MAXX double-layer PTFE membrane filters provide sterilizing-grade tank venting validated for bacterial removal in air at 10⁷ CFU/cm² per ASTM F838-05, with Water Intrusion Test values >60 psi. New Brevi-MAXX compact cartridges (2.25" OD) in PES, Charged Nylon, and PTFE media offer a scalable pilot-to-production format for pharmaceutical R&D and POU applications.

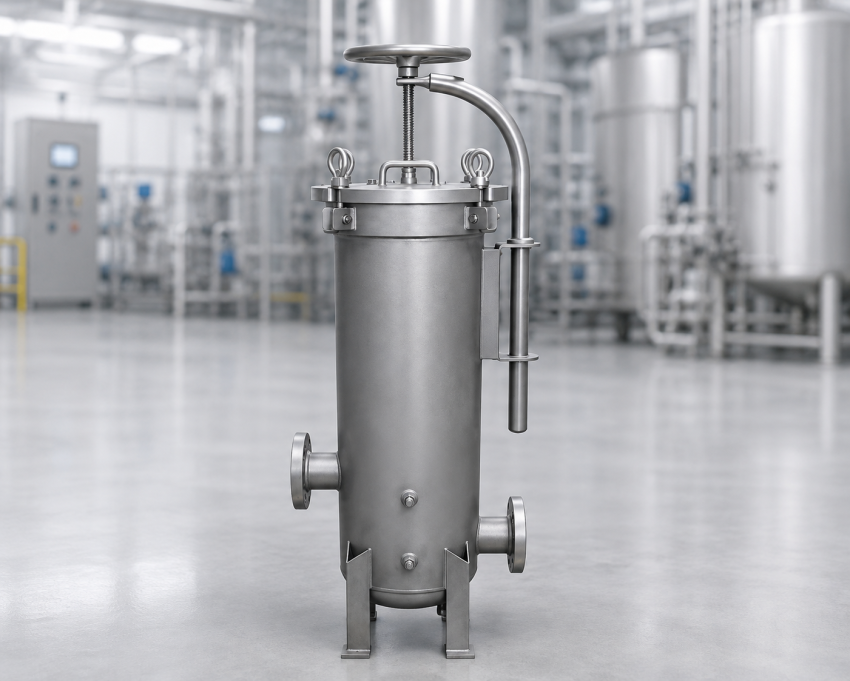

Raw Material & Solvent Pre-Filtration
Intermediate & Process Filtration
Final API Purification Filtration
Chemical and API manufacturers operate under some of the most stringent regulatory frameworks in any industry. Strainrite meets this challenge with products manufactured in ISO 9001-accredited, silicone-free facilities — with many product lines produced in accordance with GMP standards. Our Pur-MAXX sterilizing-grade filters, Endo-MAXX endotoxin-removal cartridges, and Vent-MAXX gas filtration products are manufactured in validated cleanrooms with comprehensive documentation including bacterial retention testing, integrity test correlation, extractable and leachable profiles, and USP Class VI biocompatibility certification. For large-scale operations, our SRID Series industrial vessels handle flow rates up to 5,000 gpm at pressures up to 3,000 psi — fabricated from materials including 316 Stainless, Alloy C-276, and Titanium to withstand the most corrosive chemical environments.
Chemical and API manufacturers must demonstrate validated, traceable filtration performance to regulatory agencies worldwide. Strainrite's quality systems and certifications are designed to support rigorous compliance programs.
Strainrite's manufacturing facilities are ISO 9001-accredited with documented procedures for every stage of production. Our GMP-compliant product lines are manufactured in validated cleanrooms with complete batch traceability — supporting regulatory submissions to the FDA, EMA, and other global health authorities. Every critical-grade filter is 100% integrity tested before shipment.
Strainrite provides full validation guides for critical filtration products, including documented bacterial retention testing, integrity test correlation, LAL endotoxin testing, cytotoxicity testing, USP Physicochemical testing, and USP Class VI Biological Reactivity certification. Our filters are validated for multiple steam sterilization cycles — supporting the rigorous revalidation requirements of pharmaceutical and API manufacturing.
Mem-Pleat SG & Pur-MAXX SG Sterilizing-Grade PES Cartridges
validated 0.2µm Brevundimonas diminuta removal for sterile API, WFI, and parenteral filtration | Endo-MAXX CN Charged Nylon Cartridges — third-party verified >2 log endotoxin reduction with 316 SS insert
Mem-Pleat C & Pur-MAXX C Cellulose Acetate Cartridges
naturally low-binding membrane for protein and enzyme filtration
Duo-Pleat & Duo-MAXX Dual Pleated Cartridges
pre-filter + final membrane in one element for extended filter life
Mem-Pleat CN & Pur-MAXX CN Charged Nylon Cartridges
positive zeta potential for sub-micron particle and endotoxin capture
Mem-Pleat N & Pur-MAXX N Nylon 6,6 Cartridges
hydrophilic membrane for fine chemicals, biological fluids, and API
Vent-MAXX Double-Layer PTFE Cartridges
sterilizing-grade tank vent and process air/gas filtration
Brevi-MAXX Compact Cartridges
pilot-scale and POU filtration in 2.25" format with full media range

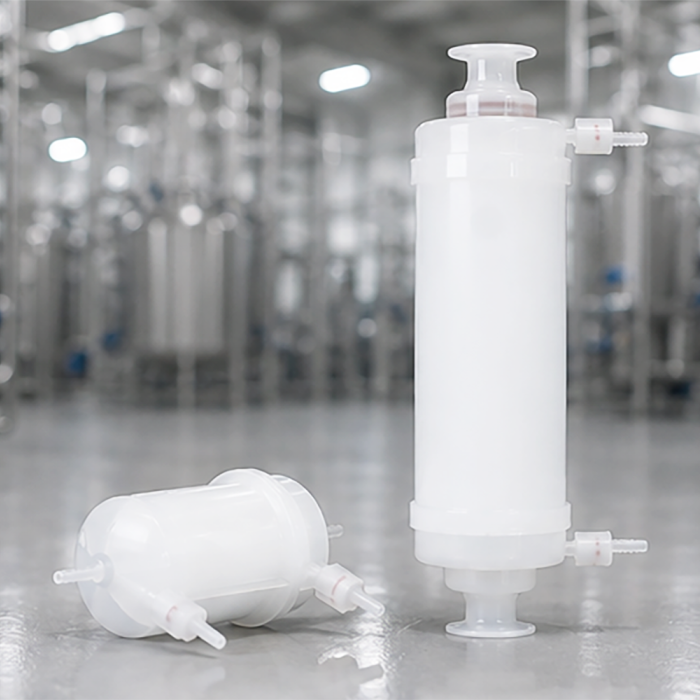

MAXX-Cap Capsule Filters
self-contained disposable units for aseptic and contained processing
SPMF & Hi-Pro Micro Filter Bags
absolute-rated and high-efficiency bags for chemical and solvent filtration
Carbon & Chemical Ready Bags
catalyst recovery and solvent purification specialty bags

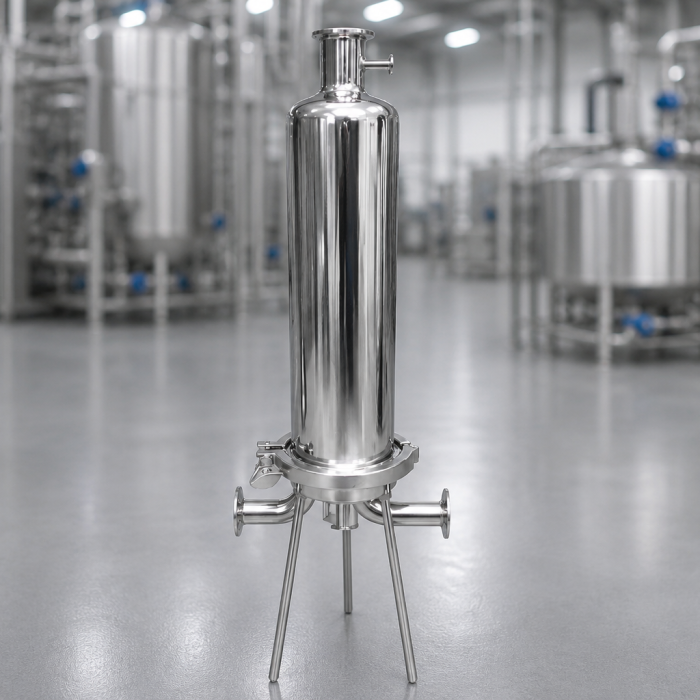

SRCT & SRC Sanitary-Grade Vessels
304/316 SS with electropolished finish for pharmaceutical-grade service
Learn how Strainrite's validated filtration solutions have helped chemical processors and pharmaceutical manufacturers improve product purity, reduce production bottlenecks, and achieve regulatory approval.
Request a GMP Filtration Assessment
A manufacturing facility using a traditional filter press faced reliance on filter aid, safety risks, high operational expenses, labor-intensive changeouts, and inconsistent product quality due to downstream contamination and haze.
A hydantoin manufacturer relied on lenticular type stacked filter pads, which limited production throughput and led to high filter media consumption — driving up operational costs and requiring frequent maintenance.
