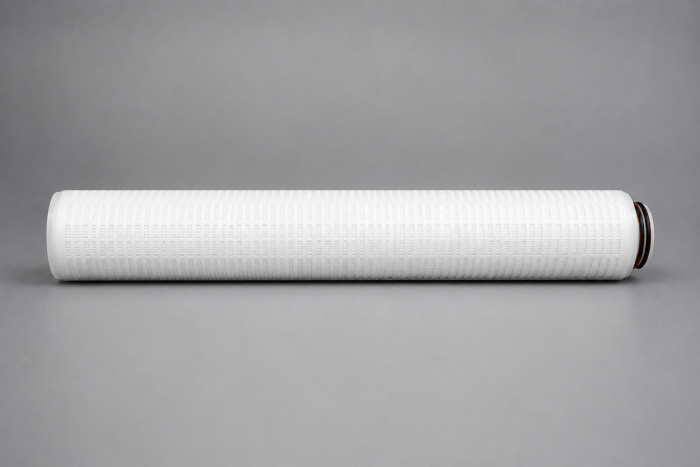

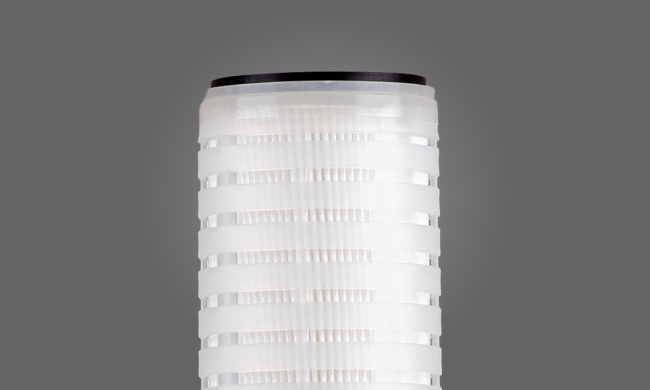

Continuous Pleat-Rite Continuous Pleat Polypropylene Depth
Strainrite's continuous pleat all-polypropylene filter cartridges optimize throughput while achieving consistent and repeatable effluent quality.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.1, 0.2, 0.5, 1, 2.5, 5, 10, 15, 20, 40, 70 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Efficiency |
CPP0.1 — BETA100 @ 0.1µm CPP0.2 — BETA100 @ 0.2µm CPP0.5 — BETA100 @ 0.5µm CPP1 — BETA100 @ 1µm CPP2.5 — BETA100 @ 2.5µm CPP5 — BETA100 @ 5µm CPP10 — BETA100 @ 10µm CPP15 — BETA100 @ 15µm CPP20 — BETA100 @ 20µm CPP40 — BETA100 @ 40µm CPP70 — BETA100 @ 70µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene microfiber |
| End Caps | Polypropylene |
| Pleat Support Material | Polypropylene |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Single packaging available. Bulk packaging in case quantities to reduce material disposal: 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | Extruded cage: 2.55" (6.48 cm) | Molded cage: 2.68" (6.81 cm) |
| Approximate Surface Area Per 10" | General grade: 4–6 square feet | Water grade: 3–4.5 square feet |
| Lengths | 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Our filter media is constructed on the latest continuous microfiber blowing equipment that precisely control fiber diameter and integrity across the entire web.
Utilizing state-of-the-art on-line monitoring equipment, we are able to deliver the industry's most uniform and consistent media ensuring unparalleled product consistency.
These filters are manufactured in continuous lengths without binders or resins resulting in an extremely clean non-fiber releasing filter. All construction materials comply with FDA Title 21 of The Code of Federal Regulations for food and beverage contact.
Features & Benefits
CPP elements have between 4–6 ft² of surface area per 10" equivalent
Water grade elements have between 3–4.5 ft² of surface area per 10" equivalent
High efficiency media provides reliable, consistent and repeatable filtration results
High surface area pleat design for greater surface area ensures longer service life, fewer change outs and reduced operating costs per cartridge
FDA Title 21 compliant for food and beverage contact
100% polypropylene construction offers a wide range of chemical compatibility
Thermally bonded construction ensures a cleaner filtrate
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Solvent Filtration
DI/RO Prefiltration
General Water Filtration
General Chemical
Liquefied Sugar
Waste Water
Bleach
