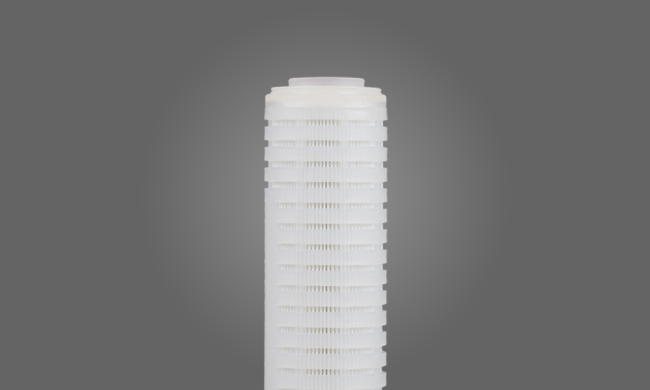

Fiber-MAXX / Glass-Pleat Absolute-Rated Microglass Depth Cartridges
Strainrite's absolute-rated microglass cartridges utilize a high surface area and high void volume media, incorporating microglass fibers in a uniform matrix that optimizes element flow rate and service life unattainable by other microfiber technologies. This revolutionary microfiber matrix optimizes pore size geometry required to offer absolute-rated filtration performance. Strainrite's non-calendared microglass cartridges exhibit significantly reduced resistance to flow when compared to similarly rated microfiber technologies. These cartridges are an excellent choice for filtering beverages such as beer and wine, as they do not remove flavor enhancing proteins.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| ASTM F795-88 Retention Rating | 0.8, 0.9, 1, 2, 3, 5, 10, 15 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty polypropylene; 275°F (135°C) continuous duty polyester |
| Efficiency |
GP0.8/FMX0.8 — 99.98% @ 0.8µm | 90.00% @ 0.25µm GP0.9/FMX0.9 — 99.98% @ 0.9µm | 90.00% @ 0.45µm GP1/FMX1 — 99.98% @ 1µm | 90.00% @ 0.65µm GP2/FMX2 — 99.98% @ 2µm | 90.00% @ 1µm GP3/FMX3 — 99.98% @ 3µm | 90.00% @ 1.5µm GP5/FMX5 — 99.98% @ 5µm | 90.00% @ 2.5µm GP10/FMX10 — 99.98% @ 10µm | 90.00% @ 5µm GP15/FMX15 — 99.98% @ 15µm | 90.00% @ 10µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass |
| End Caps | Polypropylene, polyester |
| Pleat Support Material | Polypropylene, polyester |
| Cage/Core | Polypropylene, polyester |
| Seals | Buna N, fluorocarbon, EPDM, silicone, FEP encapsulated fluorocarbon, FEP encapsulated silicone, PTFE foam, PTFE hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | GP: 2.55" (6.48 cm) | FMX: 2.7" (6.87 cm) |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Our materials of construction meet or exceed the requirements of the CFR 21 for food and beverage contact. Strainrite offers elements that utilize an epoxy binder providing these microglass depth cartridges with an increased range of applications where chemical compatibility is critical.
The Fiber-MAXX now offers a Special Pleat option which provides expected surface area improvements of as much as 45% in general and pharmaceutical grades. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
Features & Benefits
Absolute-rated media
Non-fiber releasing materials with minimal extractables provide high purity filtrate
Low pressure drops yield higher flow rates and reduced processing time
Maximized pleat design coupled with non-calendared microglass matrix offers greater surface area, ensuring longer service life, less downtime and reduced costs
Industrial grade uses an epoxy binder, FDA grade uses an acrylic binder
Special Pleat Option: Optimized pleat geometry
Special Pleat Option: Expected surface area improvements of as much as 25%
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Chemical Processing
Photographic Films
Oil and Gas Production
Inks and Coatings
Plating Solutions
Solvent Filtration
Wastewater
