SRVC

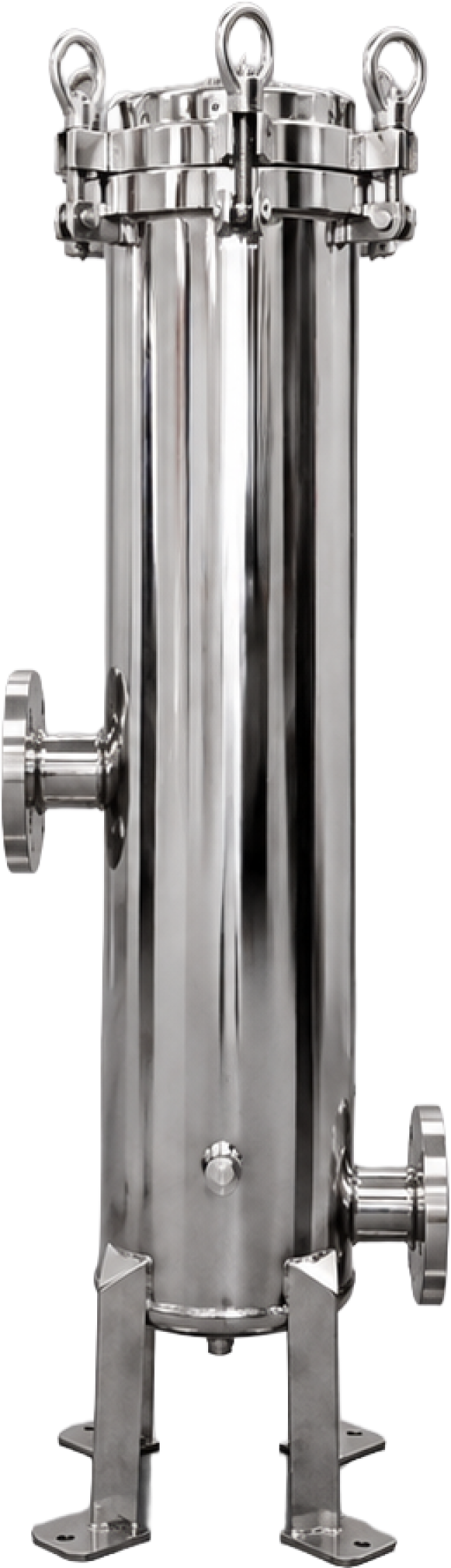

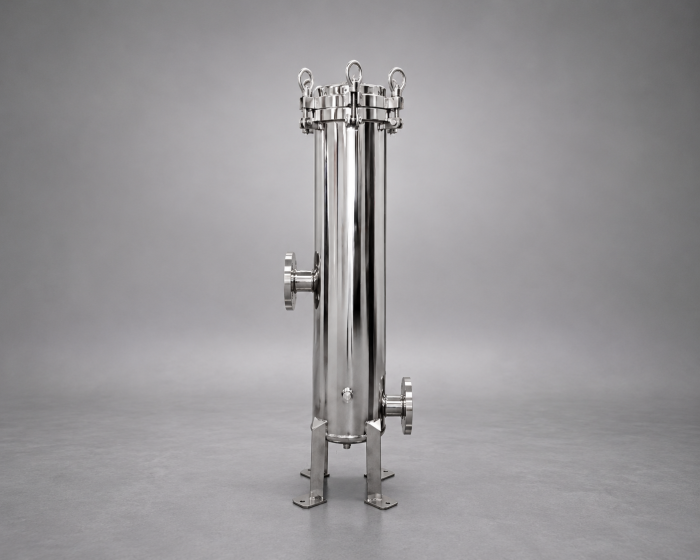

The SRVC Value Design Cartridge Vessels provide economical filtration of a wide variety of liquids in a lightweight, externally polished stainless steel design, with features including a swing bolt secured, quick opening cover and an internal positive pressure cartridge alignment and sealing plate.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Material | 304 Stainless Steel |
| Standard Seals | Fluorocarbon (other material options available: Buna N, EPDM) |
Filtration Performance
| Specification | Detail |
|---|---|
| Maximum Allowable Pressure (Single Cartridge) | 100 psi |
| Maximum Allowable Pressure (Multi-Cartridge) | 150 psi |
| Maximum Allowable Temperature | 300°F (149°C) |
Physical Specifications
| Specification | Detail |
|---|---|
| Cartridge Count | 1, 5, 7, 11, 19 |
| Element Length | 10", 20", 30", 40" |
| Inlet/Outlet |
1" NPT (1-cartridge only) 2" NPT (up to 5-cartridge with 20") 2" RFF 3" RFF 4" RFF |
Advanced Features
| Specification | Detail |
|---|---|
| Code Design | Non-ASME |
| Cartridge Compatibility | DOE and SOE (222); single-round housing accepts C1 (DOE) and C3 (flat/222) cartridges only |
Product Overview
The SRVC vessels accommodate either a single 10" or 20" long, double open end (DOE) or 222 single open end (SOE) filter cartridge. These vessels are manufactured from polished and passivated 304 stainless steel and rated for 100 psi for single cartridge and 150 psi for multi-cartridge. For added corrosion resistance, all cover bolt and leg mounting hardware is made from stainless steel as well.
Features & Benefits
SRVC single & multi-cartridge: Maximum allowable temperature: 300°F (149°C)
Convertible design allows for the use of both DOE and SOE cartridges
Standard seals: Fluorocarbon (other material options available)
Single O-ring design closure assures quick, positive cover sealing
Code design: Non-ASME
Vent and drain connections
Polished exterior & pickle passivate interior/exterior for enhanced corrosion resistance
SRVC single cartridge: Maximum allowable pressure: 100 psi
Clamped O-ring closure seal provides quick and positive seal
In-line 1" FNPT threaded pipe connections for easy installation
Head mounting kit included
SRVC multi-cartridge: Maximum allowable pressure: 150 psi
Swing bolts for fast and easy opening and closing of cover
Swing bolted O-ring closure seal provides quick and positive seal and easy access to the vessel interior and filter cartridges
Standard threaded FNPT vent & drains
Standard stainless steel cartridge support and sealing hardware
