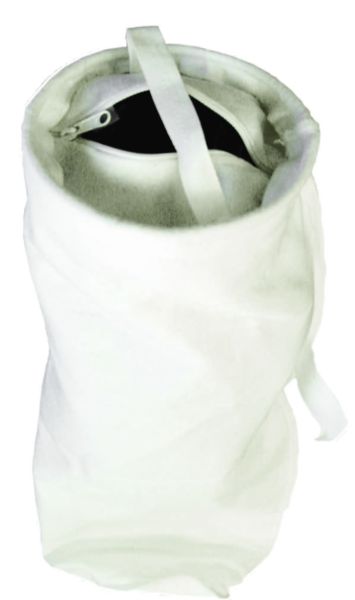

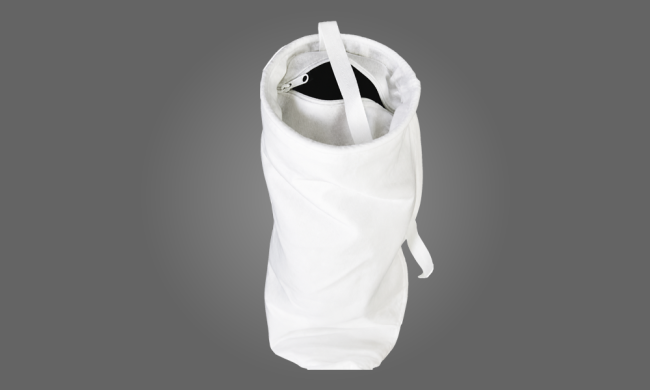

Carbon Ready & Chemical Ready Filter Bag
The Carbon Ready & Chemical Ready Bags are a Strainrite filtration innovation designed to separate and remove undesirable substances from liquid streams. These proprietary filter bags feature an impervious inner liner that does not allow liquids to escape through the side walls. This maximizes contact time with the media and enhances effluent consistancy.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Material | Polypropylene Felt (SP), Polyester Felt (AP) |
| Liner Options | Carbon Ready - Polypropylene Liner; Chemical Ready - Polyethylene Liner |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings | 1, 5, 10, 25, 50, 75, 100, 150, 200 |
Physical Specifications
| Specification | Detail |
|---|---|
| Size |
Size 1: 7" x 16" Size 2: 7" x 30.5" |
| Finish | Singed (S), Plain (P) |
| Ring Options |
P: Polypropylene P-Flange SHS: Carbon Steel Ring* SSHS: Stainless Steel Ring* PRHS: Polypropylene Ring* *For bags with rings, HS is added to standard code, as handle straps (HS) are always standard on Carbon/Chem bags with rings |
Product Overview
Commonly used medias include: carbon, ion exchange resins, clays, alumina as well as other granular chemicals.

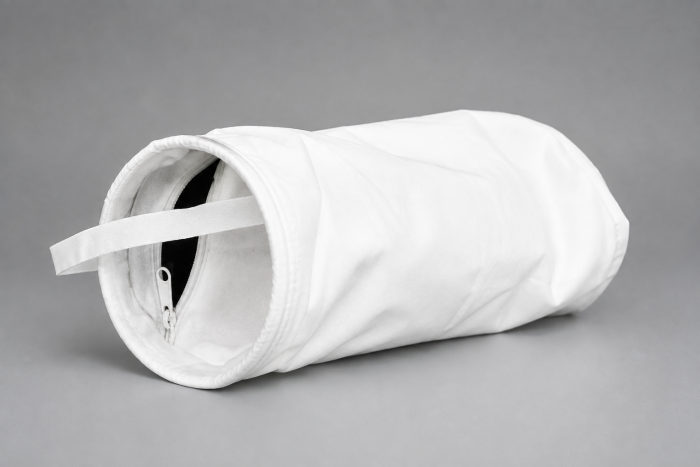

A zippered top disc allows for easy insertion of your media. The clean effluent passes through the bottom and exits the bag.
Features & Benefits
Zippered top disc makes media loading easy
Available in either polypropylene or chemically resistant nylon plastic
Excellent nominal efficiency performance when utilized with a support basket
Non-fiber releasing material
Hygienically superior to cartridge filtration due to inside-out flow dynamic, all impurities are contained inside the filter bag
Reduced product loss due to virtually no media hold-up volume
Markets & Applications
Plating
Parts Cleaning
Waste Water
Produced Water
Machine Cutting Fluids
Groundwater Remediation
