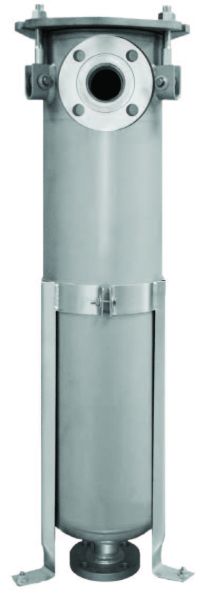

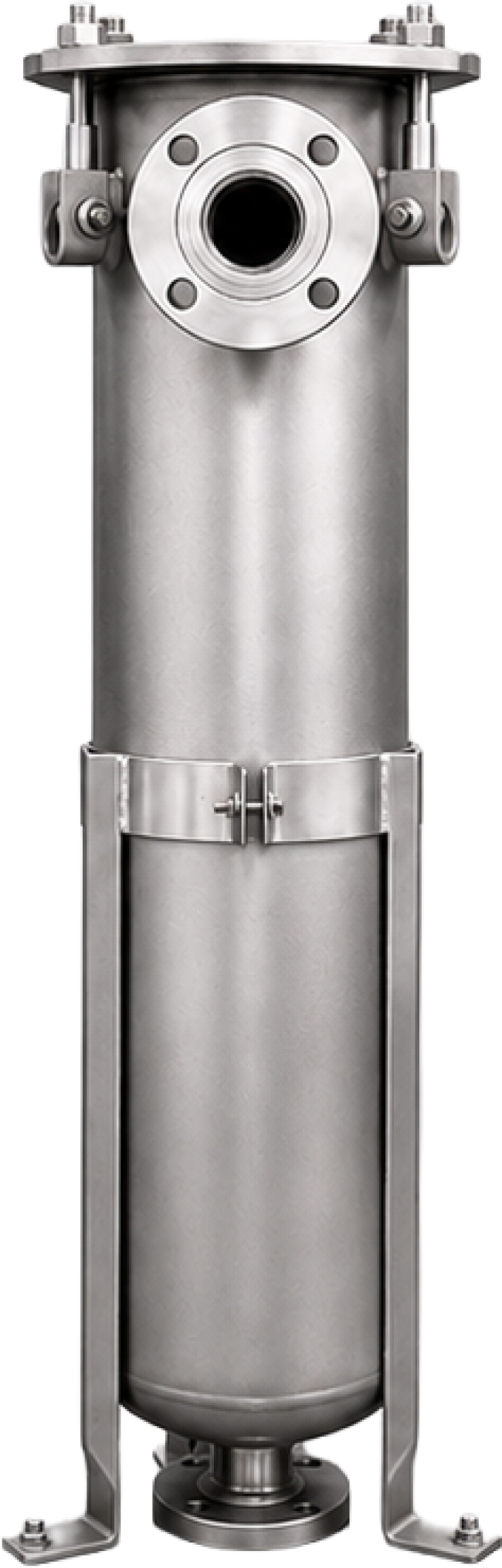

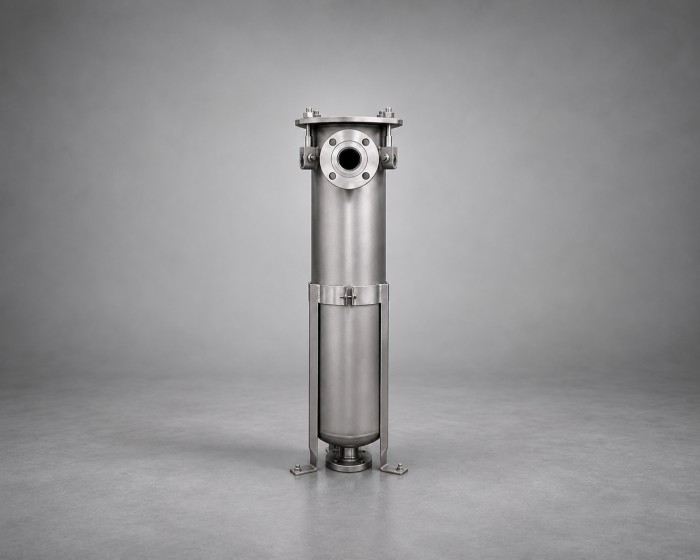

SRID Industrial Duty Bag/Element Vessels
The SRID Industrial Duty series incorporates our unique radial seal design that provides a hermetic seal between the basket and vessel. Utilizing a radial seal with our retainer baskets eliminates "basket rocking", which causes bypass as the basket becomes out of round. "Basket rocking" is common in low cost bag vessels that do not incorporate an O-ring seal and can cause unfiltered liquid bypass. The SRID, with a radial seal, has a machined surface that produces a positive seal to eliminate bypass.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Materials | Carbon Steel, 304 Stainless Steel |
| O-Ring Options | Silicone, Buna N, Fluorocarbon, EPDM, Encapsulated Fluorocarbon |
Physical Specifications
| Specification | Detail |
|---|---|
| Bag Sizes | #1 size bag, #2 size bag |
| Inlet/Outlet Connections (Standard) | 2" NPT, 2" RFF, 3" NPT, 3" RFF |
| Standard Pressure Rating | 150 PSI |
| Maximum Pressure Rating (Twin/Duplex) | 1,000 PSI |
Advanced Features
| Specification | Detail |
|---|---|
| Vessel Style Options | Single, Twin (no valves), Duplex (with valves) |
| Options | Wire mesh basket, Side outlet 180 degrees, Eye nut, Electro polish finish, Mesh-lined basket, Cover lid handle, Differential pressure gauge ports (2), MAXX-Flow / MAXX-Trap basket |
Product Overview
The Strainrite Companies is known for developing some of the industry's most advanced designed filter bags and hybrid cartridge elements on the market. These high efficiency filter bags and elements require a vessel that has a hermetically sealed top to fully capture all of the filters capabilities. The SRID is perfectly positioned to handle: standard bags, absolute rated filters and high efficiency large diameter pleated hybrid filters (Madd Maxx). The SRID vessel line is raising the bar in the OEM market by delivering superior value in a cost-effective design.
SRID Twin and SRID Duplex bag vessels offer economical filtration for nominally rated applications between 150 and 300 gpm.
The SRID Twin filter system is comprised of two #2-size housings piped together and joined to a common header. This design divides flow equally between both housings and also reduces cost approximately 50% compared to a multi-bag housing holding 2 bags inside.
The SRID Duplex filter systems offer great flexibility for continuous on-line filtration requirements. This allows for continuous operation by directing the flow from one vessel to another by opening and closing of valves. This allows one side to be serviced, while the other vessel is in use.
Features & Benefits
Hermetic radial O-ring sealed retainer basket: Eliminates potential for bypass and "basket rocking"
Adjustable tri-pod stand: Offers flexibility when plumbing into an existing line
Inlet/Outlet Orientation:
Inlet/Outlet Orientation: Side-in Bottom-out (standard), Side-in Side-out (optional)
Recessed basket design: Reduces operator exposure to unfiltered liquid. Less mess when making bag changes and no spillage of unfiltered liquids
Standard pressure ratings: 150 PSI
1" Bottom Drain: Allows for full evacuation of fluids
1" NPT bottom drain port
¼" NPT vent port in lid
Perforated retainer basket
Basket is radial O-ring sealed
Adjustable-height legs tripod stand
2" NPT & RFF inlet and outlet connections
Built-in volume displacer in cover
O-ring sealed cover
SRID Optional Feature — Wire mesh basket: Mesh lined baskets for straining application from 20 to 200 mesh
SRID Optional Feature — Side outlet configuration: 3" NPT or RFF connections
SRID Optional Feature — Eye nut closure system: Filter bag compression device
SRID Optional Feature — MAXX-Flow / MAXX-Trap baskets available
SRID Twin Feature — Inlet/Outlet Orientation: Side-in Side-out (standard), Side-in Bottom-out (optional)
SRID Twin Feature — 150 PSI design, available to 1,000 PSI
SRID Twin Feature — 1/8" stainless steel perforated basket (standard)
SRID Twin Feature — Positive cover seal
SRID Twin Feature — Easily cleaned
SRID Twin Feature — Low pressure drop
SRID Twin Feature — Adjustable height tripod stand
SRID Duplex Feature — Inlet/Outlet Orientation: Side-in Side-out (standard), Side-in Bottom-out (optional)
SRID Duplex Feature — 3-piece ball valves standard
SRID Duplex Feature — 150 PSI design, available to 1,000 PSI
SRID Duplex Feature — 1/8" stainless steel perforated basket (standard)
SRID Duplex Feature — Positive cover seal
SRID Duplex Feature — Easily cleaned
SRID Duplex Feature — Low pressure drop
SRID Duplex Feature — Adjustable height tripod stand
