Aqua-Rite EVP
Strainrite's EVP (Enhanced Vertical Pleat) filters are the product of years of successful, application specific filtration in a variety of industries, using the Model 8T as the genesis of the Value-Life Series.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Material | Aqua-Rite polypropylene felt (AR) |
| Ring Options | Polypropylene P-flange, polypropylene M-flange, carbon steel ring, stainless steel ring (polyester flanges not available in Aqua-Rite) |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings | 1T, 1, 5, 10, 25, 50 (75, 100, 150, 200 not available in Aqua-Rite) |
| Efficiency Rating | Absolute-rated cover with gradient depth construction |
Physical Specifications
| Specification | Detail |
|---|---|
| Size 1 Dimensions | 7" x 16" |
| Size 2 Dimensions | 7" x 32" |
| Surface Area — Size 1 | 7 square feet (vs. 2 square feet for standard bag) |
| Surface Area — Size 2 | 14 square feet (vs. 4 square feet for standard bag) |
| Finish Options | Plain (P) only (singed not available in absolute efficiency) |
Product Overview
By working closely with our distributor partners, and their valued customers, we have learned how to amplify the critical features that make the EVP the greatest value in the filtration marketplace today. With proprietary advances in pleat profile and rigidity, graded density materials of construction, and utilized surface area, no filter element provides equal filtration performance, life and loading capacity at a similar price.
The Aqua-Rite EVP features an absolute-rated cover that provides protection and classification while maintaining the gradient depth of the standard EVP.
Features & Benefits

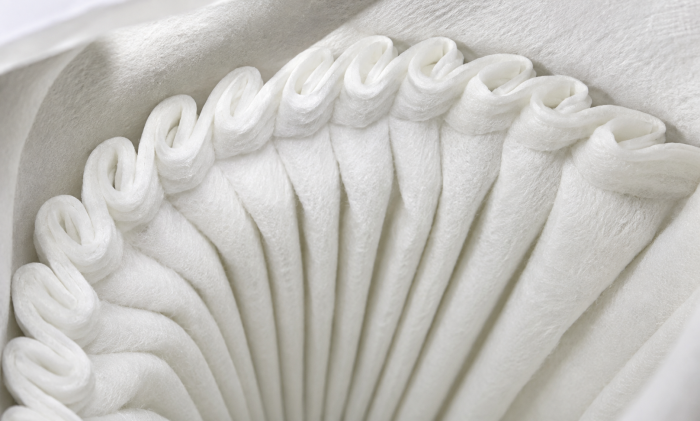

Optimized pleat profile rigidity provides > 50% increases in surface area utilization increase and protects final filter media from premature blinding and increases filter life
True graded density design and increased surface area
Reduced filter element disposal costs
Longer, uninterrupted run times
Reduced employee exposure, reduced product loss and real labor cost-savings due to fewer filter change-outs
No equipment modification required, fits all industry standard #1 and #2 size bag housings
Carbon steel and stainless steel rings and plastic flanges; handle strap included
Optional zero-bypass vessels available
Aqua-Rite EVP: Absolute-rated cover provides protection and classification while maintaining the gradient depth of the standard EVP
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Glycols
Amines
Coolants
Adhesives
Resins
Petrochemicals
Fine Chemicals
Plating Solutions
Food & Beverage Applications
Inks, Paints & Coatings
Cooling Towers
Down Well Injections
Cutting Fluids
High Purity Water
