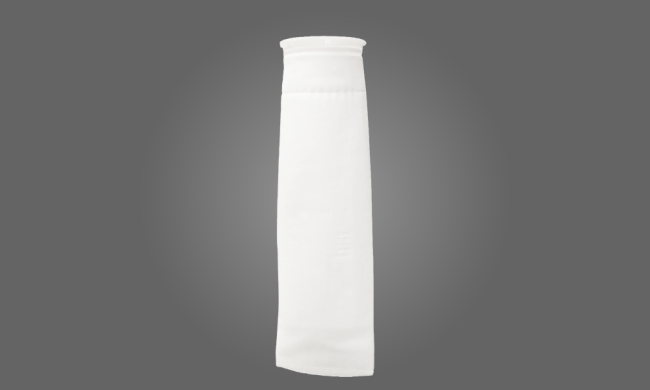

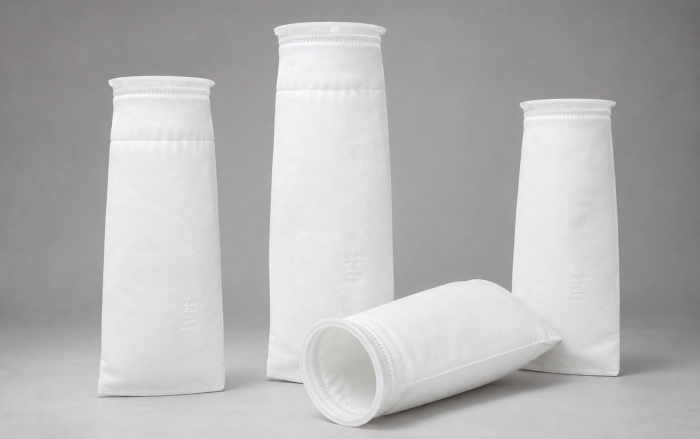

EVP / EVP-A Enhanced Vertical Pleat Extended Life Bags
Strainrite's EVP (Enhanced Vertical Pleat) filters are the product of years of successful, application specific filtration in a variety of industries, using the Model 8T as the genesis of the Value-Life Series.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Material Options | Polypropylene felt (SP), Polyester felt (AP), Aqua-Rite Polypropylene felt (AR) |
| Ring Options | Polypropylene P-Flange (P), Polypropylene M-Flange (M), Polyester P-Flange (PER), Polyester M-Flange (MER), Carbon Steel Ring (S), Stainless Steel Ring (SS) |
| FDA Compliance | EVP-A is FDA compliant |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings | 1T, 1, 5, 10, 25, 50, 75*, 100*, 150*, 200* (*not available in Aqua-Rite) |
| Efficiency Rating | Absolute (A), Nominal (-) |
Physical Specifications
| Specification | Detail |
|---|---|
| Size 1 Dimensions | 7" x 16" |
| Size 2 Dimensions | 7" x 32" |
| Surface Area — Size 1 | 7 square feet versus 2 square feet of media standard bag |
| Surface Area — Size 2 | 14 square feet versus 4 square feet of media standard bag |
| Finish Options | Singed (S)*, Plain (P) (*not available in Absolute efficiency) |
| Housing Compatibility | Fits all industry standard |
Product Overview
By working closely with our distributor partners, and their valued customers, we have learned how to amplify the critical features that make the EVP the greatest value in the filtration marketplace today. With proprietary advances in pleat profile and rigidity, graded density materials of construction, and utilized surface area, no filter element provides equal filtration performance, life and loading capacity at a similar price.
Features & Benefits
Optimized pleat profile rigidity provides > 50% increases in surface area utilization increase and protects final filter media from premature blinding and increases filter life
True graded density design and increased surface area
Reduced filter element disposal costs
Longer, uninterrupted run times
Reduced employee exposure, reduced product loss and real labor cost-savings due to fewer filter change-outs
No equipment modification required, fits all industry standard
Carbon steel and stainless steel rings and plastic flanges; handle strap included
Optional zero-bypass vessels available
EVP-A: FDA compliant
Aqua-Rite EVP: Absolute rated cover provides protection and classification while maintaining the gradient depth of the standard EVP

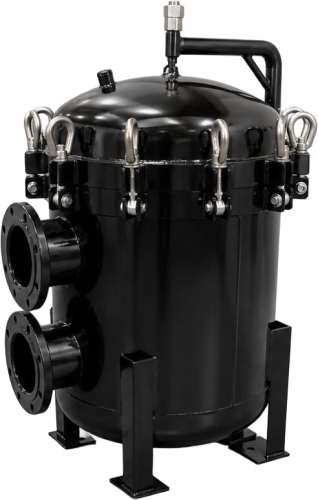

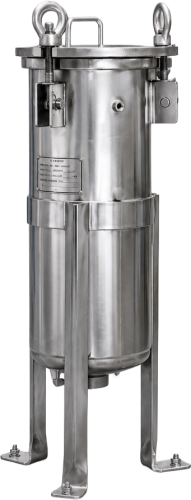

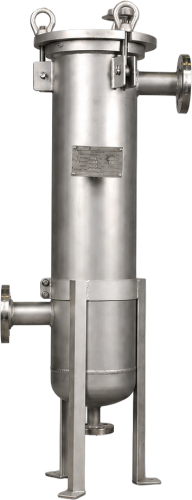

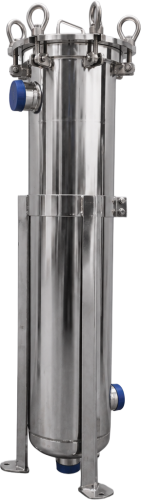

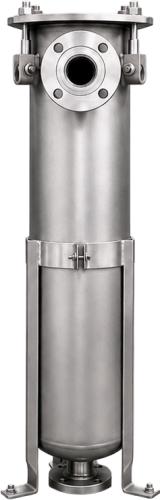

Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Glycols
Amines
Coolants
Adhesives
Resins
Petro-Chemicals
Fine Chemicals
Plating Solutions
Food & Beverage Applications
Inks, Paints & Coatings
Cooling Towers
Down Well Injection
Cutting Fluids
High Purity Water
