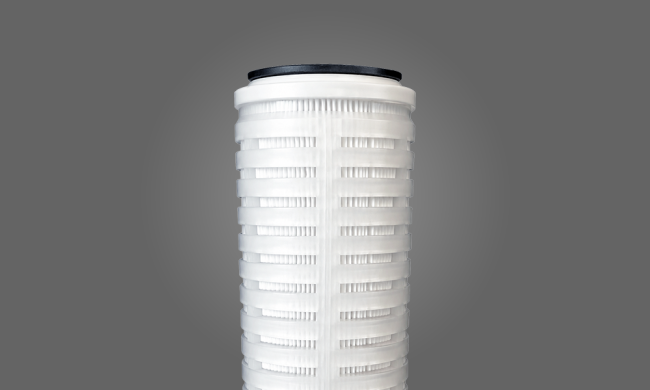

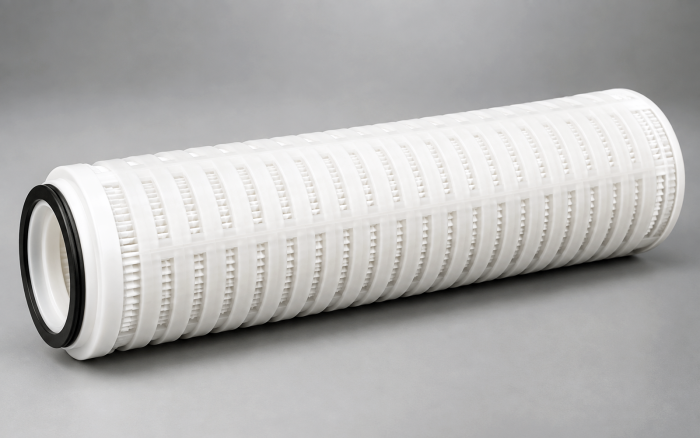

Duo-MAXX / Duo-Pleat Dual-Pleat Cartridge

Designed as a "pre-final" filter, Strainrite's depth over membrane cartridges were created to protect final filters saving money and extending the life of your final filters. These filters incorporate a synchronized media design. This design utilizes a prefiltration layer up-stream over a final membrane layer in the same cartridge. These filters are a pre-filter and a final filter in one.

Download Spec Sheet (PDF)

Duo-MAXX / Duo-Pleat Dual-Pleat Cartridge

Technical Specifications

Filtration Performance

Specification	Detail
Absolute Rated Retention	Polyethersulfone: 0.04, 0.1, 0.2, 0.45, 0.65, 0.8, 1, 1.2, 2 Polysulfone: 0.2, 0.45, 0.65 Nylon: 0.1, 0.2, 0.45, 0.65, 0.8, 1.2
Maximum Differential Pressure	Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C)
Maximum Operating Temperature	180°F (82°C) continuous duty

Materials & Compliance

Specification	Detail
Pre-Filter Media	Borosilicate microglass, polypropylene microfiber
Filter Media	Polyethersulfone, Nylon, Polysulfone
Pleat Support Material	Polypropylene, Polyester
End Caps	Polypropylene, Polyester
Cage/Core	Polypropylene, Polyester
Construction Method	Thermal bond
Seals	Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard
Toxicity	Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact

Advanced Features

Specification	Detail
Sterilization	Cartridge can be sterilized via steam or autoclave: 20 times at 275°F (135°C). Cartridge may be sanitized in place with common sanitizing agents; contact factory for chemical compatibility.
Packaging Economy	Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton \| 10 inch - 24 per carton \| 20 inch - 12 per carton \| 30 inch - 12 per carton \| 40 inch - 9 per carton

Physical Specifications

Specification	Detail
Outside Diameter	DP: 2.55" (6.48 cm) \| DMX: 2.7" (6.87 cm)
Approximate Surface Area	Polypropylene microfiber: 6 square feet per 10" equivalent Borosilicate microglass: 5 square feet per 10" equivalent
Lengths	5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm)

Product Overview

These filters are available in multiple micron ranges and combinations to meet the requirements of your process. They are available in two prefiltration materials: polypropylene microfiber and borosilicate microglass. The final filtration layer is available in Nylon, polysulfone, cellulose acetate, and Strainrite's asymmetric polyethersulfone membrane.
