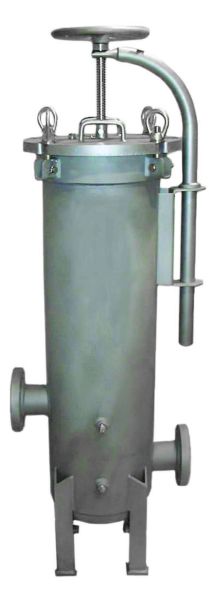

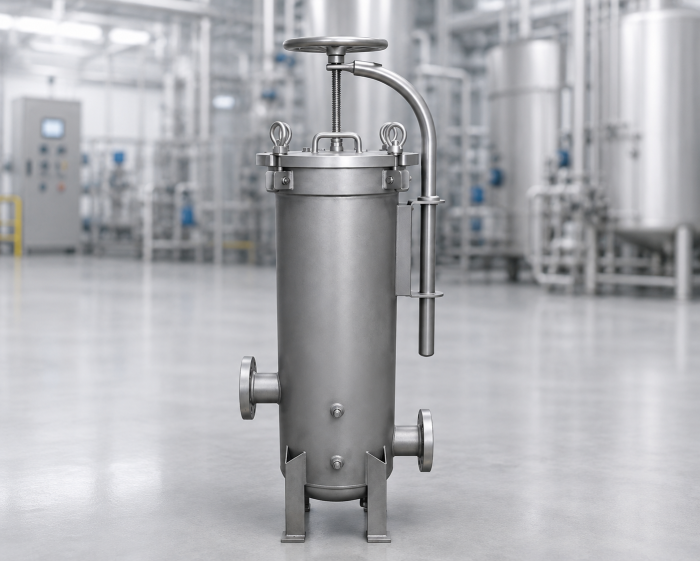

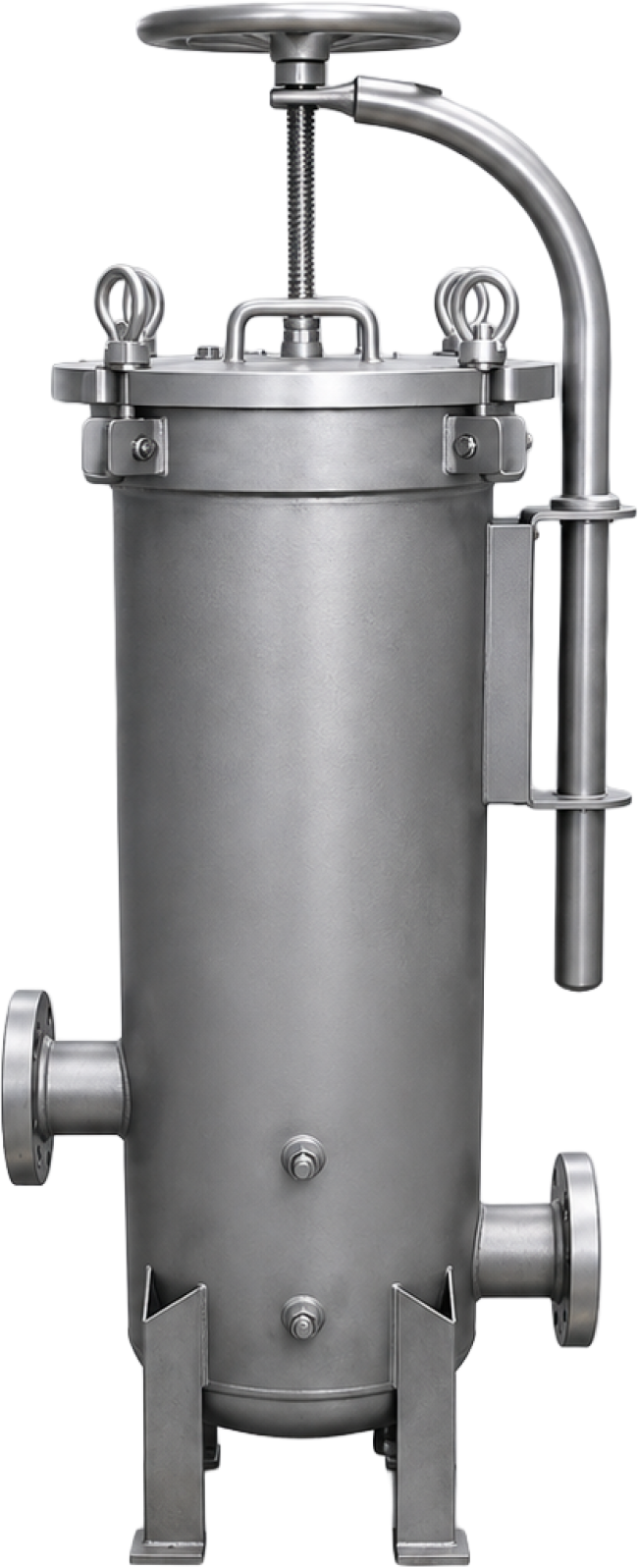

SRC Industrial Duty Cartridge Vessels
The Strainrite Companies is known for developing some of the industry's most advanced designed hybrid cartridge elements on the market. These high efficiency filter elements require a vessel that has a hermetically sealed top to fully capture all of the filters capabilities. The SRC Industrial Duty Cartridge Vessel is perfectly positioned to handle standard cartridges and absolute rated filters.
Technical Specifications
Physical Specifications
| Specification | Detail |
|---|---|
| Design Pressure | 150 psi |
| Closure Style | O-ring sealed cover (Buna N) |
| Flow Direction | Side in / bottom out (SRC8, SRC16, SRC20, SRC26 series) |
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Materials | Carbon steel (A), 304 stainless steel (B), 316 stainless steel (C) |
| End-Cap Options |
C1: Double open ends C3: Flat/222 C6: Flat/226 C7: Fin/226 C8: Fin/222 |
General Information
| Specification | Detail |
|---|---|
| SRC8 Series — Cartridge Count | 4, 5, or 6 round |
| SRC8 Series — Inlet/Outlet | 2" NPT, 2" FLG, 3" NPT, or 3" FLG |
| SRC8 Series — Element Length | 30, 40 |
| SRC16 Series — Cartridge Count | 19 round |
| SRC16 Series — Inlet/Outlet | 3" FLG |
| SRC16 Series — Element Length | 30, 40 |
| SRC20 Series — Cartridge Count | 31 round |
| SRC20 Series — Inlet/Outlet | 4" FLG |
| SRC20 Series — Element Length | 30, 40 |
| SRC26 Series — Cartridge Count | 54 round |
| SRC26 Series — Inlet/Outlet | 6" FLG |
| SRC26 Series — Element Length | 30, 40 |
Features & Benefits
SRCI Series Single Cartridge: 150 psi design pressure, O-ring sealed cover
SRCI Series Single Cartridge: Inlet and outlet connections ¾"–1" NPT
SRCI Series Single Cartridge: Optional ¼" NPT vent port in lid
SRCI Series Single Cartridge: Optional polypropylene inline in 10", 20" housing
SRCI Series Multi-Cartridge: 150 psi design pressure, O-ring sealed cover
SRCI Series Multi-Cartridge: Inlet and outlet connections 2" NPT & RFF, ¼" NPT vent port in lid
SRCI Series Multi-Cartridge: Band clamp style, 2.5"–2.75" cartridge OD — available in 4, 5, 7, 12 round; swing bolt style, 2.5" cartridge OD — available in 22, 36 round
SRCI Series Multi-Cartridge: Optional 3" NPT or RFF connections
SRCI Series Multi-Cartridge: Optional eye nut closure system
SRC8 Series: 150 psi design pressure, O-ring sealed cover (Buna N), side in/bottom out, swing bolt style, tripod stand
SRC8 Series: 4 round — 226 style, 8" housing diameter; 5 round — 2.75" cartridge OD, 8" housing diameter; 6 round — 2.5" cartridge OD, 8" housing diameter
SRC16, SRC20, SRC26 Series: 150 psi design pressure, O-ring sealed cover (Buna N), side in/bottom out, swing bolt style, tripod stand
SRC16, SRC20, SRC26 Series: 19 round — 2.75" cartridge OD, 16" housing diameter; 31 round — 2.75" cartridge OD, 20" housing diameter; 54 round — 2.75" cartridge OD, 26" housing diameter
