Products Filter Bags Micron-Rated Mesh Bags

Multifilament Mesh Micron-Rated Mesh Bags

Multifilament mesh filter bags are manufactured in a narrow range of micron ratings using a multi-strand weave.

Technical Specifications

Materials & Compliance

Specification	Detail
Available Materials	Nylon multifilament (NMU), polyester multifilament (PEMU)

Physical Specifications

Specification	Detail
Micron Ratings (NMU, PEMU)	100T, 100F, 150, 200, 250, 300, 400, 600, 600T, 800
Available Sizes	Size 1: 7" x 16" Size 2: 7" x 32" Size 3: 4.08" x 8" Size 4: 4.08" x 14" Size 25: 4" x 9" Size 30: 4.118" x 10" Size 50: 4" x 21" Size 65: 4.118" x 22"
Ring Options	Polypropylene P-flange, polypropylene M-flange, polyester P-flange, polyester M-flange, draw string, carbon steel ring, stainless steel ring, polypropylene ring, no ring (note: polypropylene Z-flange and automotive style not available for NMU, PEMU)
Finish	Plain (P)
Options	HS handle-strap

Product Overview

Multi-strand woven media is very cost effective for those applications where nominal filtration is required. The media openings are nominally spaced apart and require the use of a support basket to optimize filter performance. This media is excellent when applications require fiber free products from 100 micron up to 800 micron nominal efficiency range.

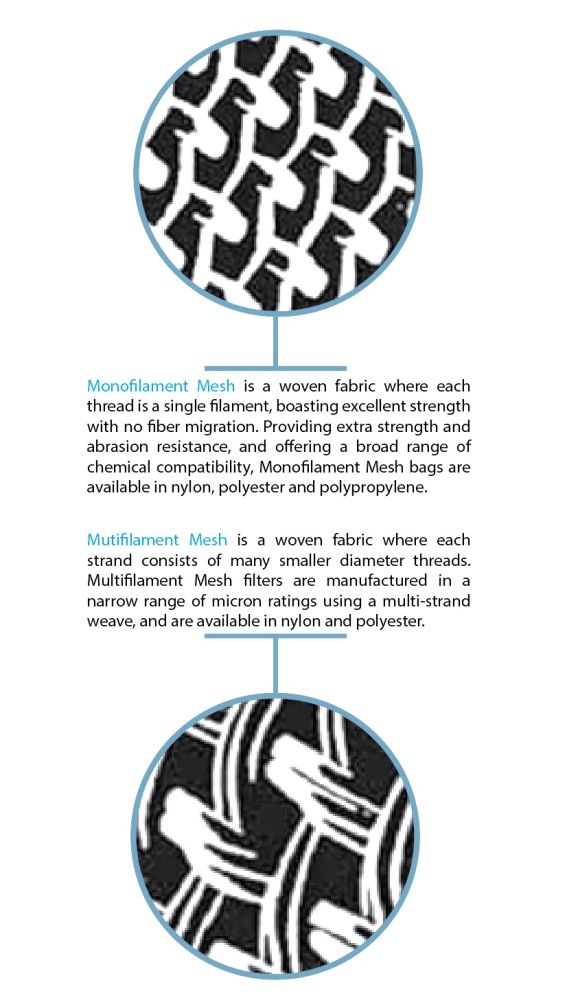

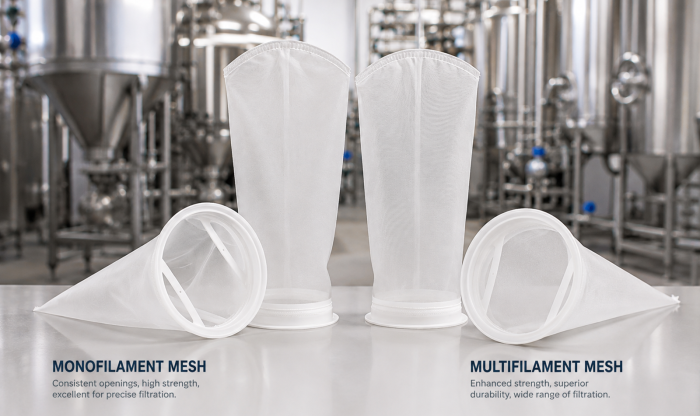

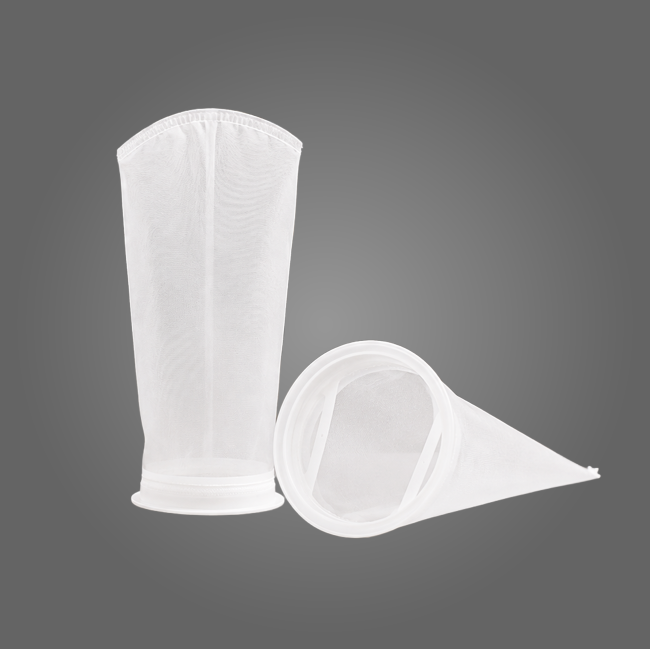

Multifilament mesh is a woven fabric where each strand consists of many smaller diameter threads. Multi-filament mesh filters are manufactured in a narrow range of micron ratings using a multi-strand weave, and are available in nylon and polyester.
