Inside-Out Flow

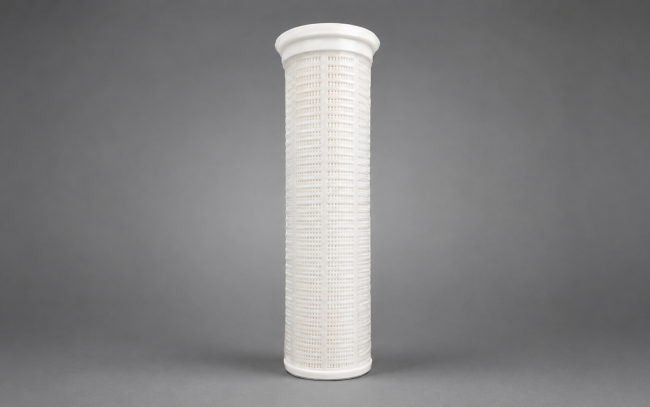

Aqua-MAXX
Strainrite's Aqua-MAXX [Hybrid Filter Technology] filters are engineered for critical high purity applications by optimizing throughput while maintaining absolute rated performance that is both predictable and repeatable. Our superior filter media is constructed on the latest Continuous Composite Microfiber blowing equipment, which accurately controls fiber diameter and web design. This state-of-the-art equipment utilizes online monitoring equipment, delivering the industry's most uniform and consistent media, resulting in unparalleled NSF-compliant product.
Technical Specifications

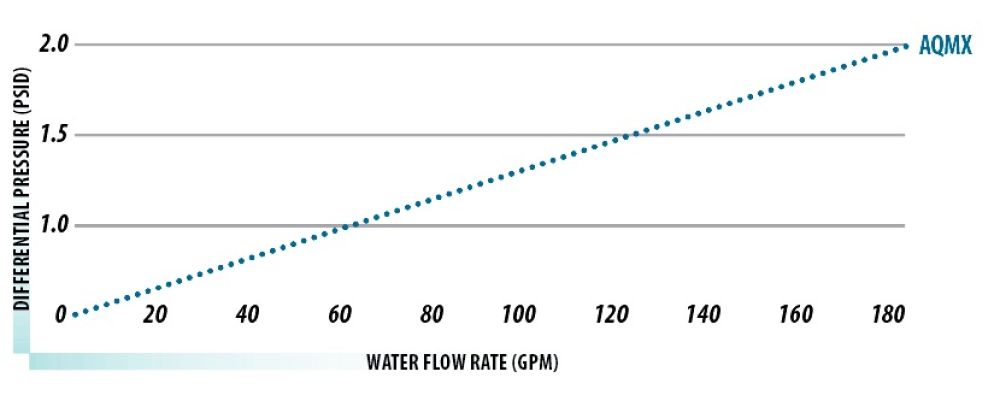

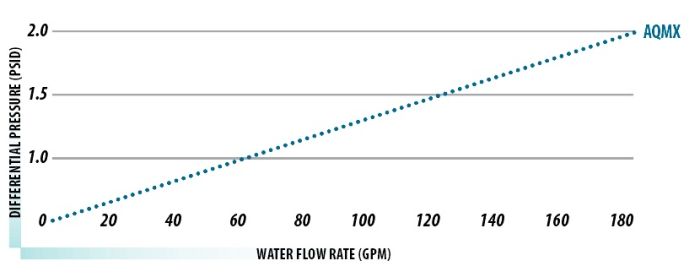

Filtration Performance
| Specification | Detail |
|---|---|
| Maximum Flow Rate | 50 GPM |
| Maximum Differential Pressure | 25 PSID @ 70°F (21°C) |
Materials & Compliance
| Specification | Detail |
|---|---|
| NSF Compliant | Meets the safety, quality, or performance requirements of an NSF/ANSI standard and has been verified through NSF’s accredited third‑party certification process. |
| Filter Media | Composite polypropylene microfiber |
| Support Material | Polypropylene |
| Hardware | Polypropylene |
| Cage | Polypropylene |
| O-Rings | EPDM |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Nominal Top Outside Diameter | 7" |
| Nominal Lengths | 30" (76.5 cm) |

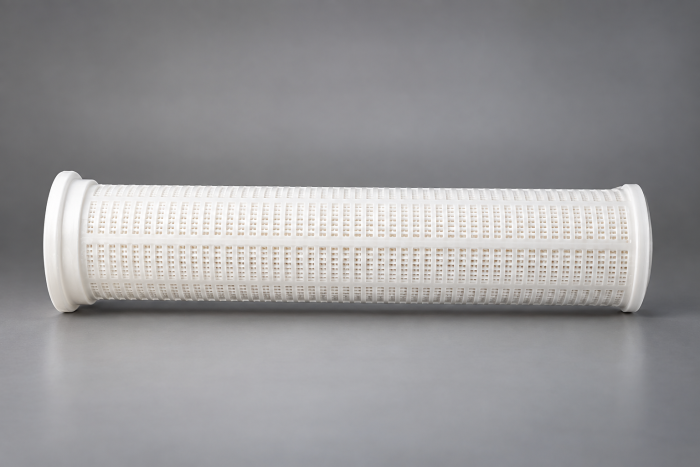

Product Overview
By combining high performance media in an Aqua-MAXX inside-out flow configuration, we have created the ultimate filter. This element combines the advantages of typical bag filtration, ease of use, and exceptional dirt holding capacity with the high efficiency and performance characteristics of cartridge filtration. The inside out flow design ensures that unwanted contaminates stay inside the element during change out, unlike typical cartridge filtration, virtually eliminating the possibility of downstream contamination. All materials of construction meet or exceed the requirements of CFR 21 for Food and Beverage contact.
Features & Benefits
Complies with ANSI/NSF Standard 53; meets the requirements of USP Plastic Class VI
Media provides reliable, consistent and repeatable filtration
Faster change-outs compared to standard high performance cartridges
Contaminants are captured inside the element, eliminating downstream contamination
Maximum flow rates of 50 GPM
Lower pressure drops yield higher flow rates and reduced processing time
Maximum pleat design for greater surface that ensures longer service life, less downtime, and reduced operating costs per element
Thermally bonded end caps
Double 261 O-ring seal ensures a hermetic seal for critical high purity applications
Compliant with FDA 21 CFR

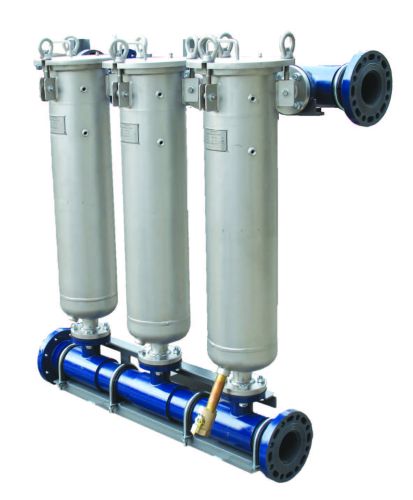

Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Food & Beverage
High Purity Water
