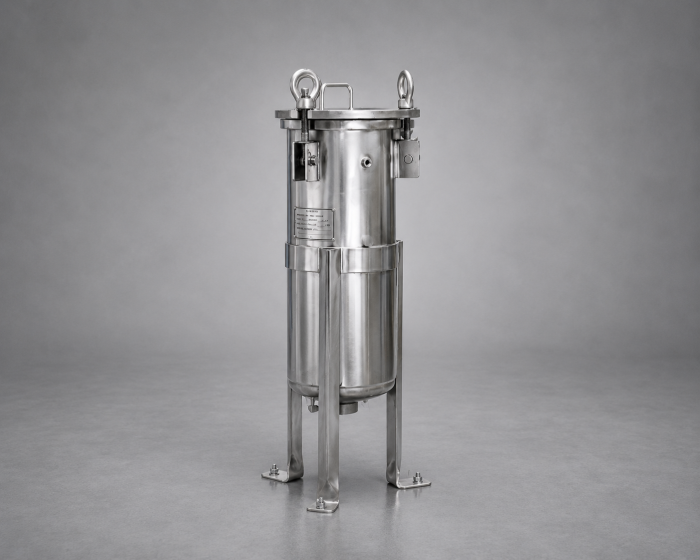

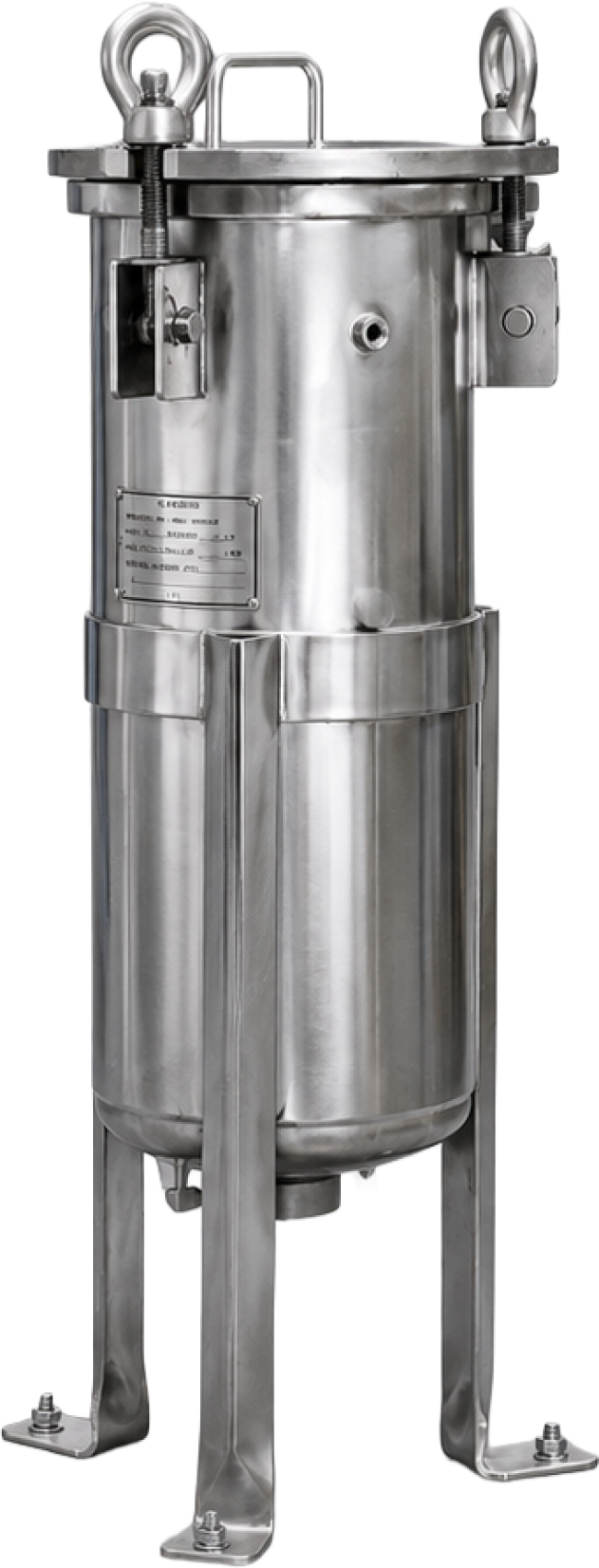

SRX / SRMX X-TRA Seal Bag/Element Vessels
The SRX X-Tra Seal vessel series was developed by our in-house engineering team for the expressed purpose of eliminating vessel-to-bag bypass, a critical element when high efficiency filtration is required. Strainrite's proprietary "Five Points of Seal" design has proven to be a major advance in filter vessel technology, performing admirably where the competition hasn't.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Housing Materials | Carbon steel (A), 304 stainless steel (B), 316 stainless steel (C) |
| Basket | Stainless steel wire mesh |
Physical Specifications
| Specification | Detail |
|---|---|
| Bag Sizes (SRX) | #1 size bag, #2 size bag |
| Bag Count (SRMX) | 2, 3, 4, 5, 6, 8, 10 |
| Maximum Operating Pressure | 150 PSI standard; up to 300 PSI available |
Advanced Features
| Feature | Benefit |
|---|---|
| Inlet/Outlet — SRX (Standard) | 2″ NPT, 2″ RFF, 3″ NPT, 3″ RFF, 4″ NPT, 4″ RFF |
| Inlet/Outlet — SRMX | 2″ NPT, 2″ RFF, 3″ RFF, 4″ RFF, 6″ RFF, 8″ RFF, 10″ RFF |
| Optional Features | Different outlet connections and orientation, higher pressure ratings, extra-length legs, heat jacketing, liquid displacers for easier servicing |
| Options (SRX) | Sanitary design (SAN), side outlet (SO), electro polish finish (EP), differential pressure gauge ports (GT), mesh-lined basket (ML), code stamped (UM), 3rd party ASME code inspected (U), swing bolts/eye nut stainless steel (SSB) |
| Options (SRMX) | Sanitary design (SAN), side in/bottom out (SIBO), mesh-lined basket (ML), code stamped (UM), 3rd party ASME code inspected (U), swing bolts/eye nut stainless steel (SSB) |
Product Overview
Featuring an effective seal on all three crucial planes of the bag, (the top, side, and bottom) as well as two additional o-rings that eliminate the likelihood of bypass along the vessel's interior wall, the SRX is truly your best choice for high efficiency bag filtration performance. The most efficient filter vessel deserves the most efficient filter bag! Using Strainrite's acclaimed Hi-Pro Micro Series FDA compliant filter bags ensures the purity of your end product.
Features & Benefits
Double o-ring basket seal eliminates bypass
Built-in volume displacer in cover
Low pressure drop
Positive cover seal
Standard 150 PSI design, available up to 300 PSI
Stainless Steel wire mesh basket
ASME code stamp available on all vessels
Easily cleaned
Covers are O-ring sealed
Large-area, heavy-duty baskets
Carbon steel, stainless steel (304) or (316) construction for housings
SRX inlet/outlet orientation: side-in bottom-out (standard), side-in side-out (optional)
SRMX inlet/outlet orientation: side-in side-out (standard), side-in bottom-out (optional)
SRMX: adjustable height tripod stand
Compatible with Strainrite's Madd-Maxx pleated hybrid elements for hermetic sealing in critical applications
