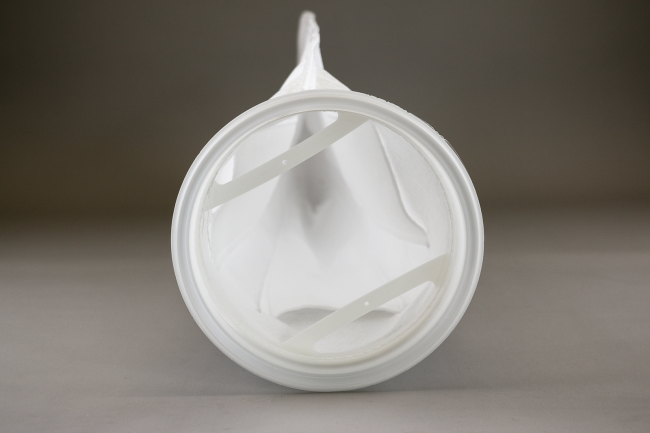

Mag-Bag - Multi-Magnet Design for Metal Removal

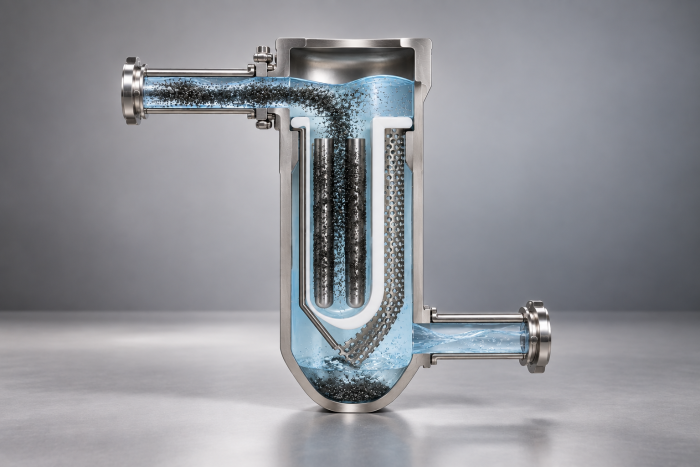

The MAG-BAG incorporates a multi-purpose design that attracts microscopic ferrous impurities along the entire length of the 12" or 24" magnetic bars. Filter life is optimized, as the ferrous particles are largely attracted to the magnet contaminate pockets, as opposed to the exit wall of the filter.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Materials | Polypropylene, Polyester |
| Finish | Singed on one side, Plain |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings | 1T, 1, 5, 10, 25, 50, 75, 100, 150, 200 |
Physical Specifications
| Specification | Detail |
|---|---|
| Size 1 | 7" x 16" |
| Size 2 | 7" x 32" |
| Ring Options |
P — Polypropylene P-Flange M — Polypropylene M-Flange S — Carbon Steel Ring SS — Stainless Steel Ring |
Product Overview
Lacking Strainrite's proprietary multi-magnet configuration, other filter bags do not provide the same extensive sphere of influence and struggle to maintain high production flow rates.
Independent field studies demonstrate ferrous containment gain greater than two times over conventional filters.
Note: Magnets not included. Contact your Strainrite distributor for a magnet quote.
Features & Benefits
Standard three pocket design accommodates 3 magnetized rods
Minimizes downtime and waste-water treatment costs
Keeps spray nozzles clean and enhances product appearance
Multi-magnet design for unsurpassed metal removal
Maximizes production capacity and product quality
Extends life of cutting tools, equipment and metal-working liquids
Traps 200% more ferrous fines
Cost-effective reusable rare earth magnets with 1" lifting loop for easy removal
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Automotive Pre-Coat
Cutting, Grinding and Boring
Pre-Cleaning Process Water Before Sensitive Operations
Plating
Parts Washers
Machining Coolants
Machining Lubricants
