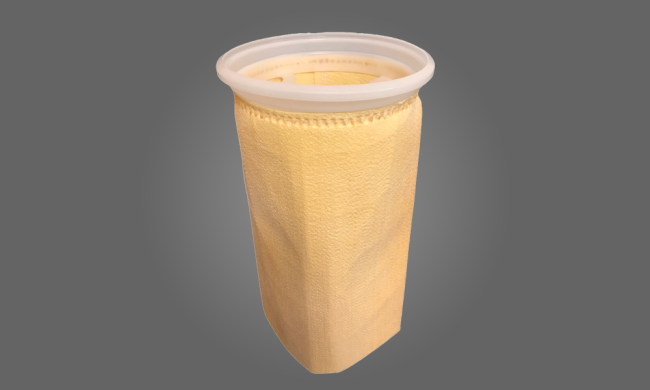

BRB-AA

Once again, The Strainrite Companies delivers true filtration innovation by combining only the positive qualities of resin-bonded cartridges with the proven advantages of a Strainrite premium quality filter bag.

Download Spec Sheet (PDF)

Technical Specifications

Materials & Compliance

Specification	Detail
Material	Resin-bonded polyester felt
Ring Options	P – Polypropylene P-flange M – Polypropylene M-flange PER – Polyester P-flange MER – Polyester M-flange Note: SHS, SSHS, PRHS handle strap rings not available for AA bags
Finish	P – Plain

Advanced Features

Specification	Detail
Configuration Options	SLAA – Single layer added area bag
AA Basket Requirement	Requires use of an AA basket. For AA bags that will not be placed in a Strainrite-manufactured AA basket, or that will be used with a basket-insert, a non-standard length bag may be required.

Physical Specifications

Specification	Detail
Micron Ratings	1T, 1, 5, 10, 25, 50, 75, 100, 200
Sizes	Size 1: 7" x 16" Size 2: 7" x 30.5"
Maximum Operating Temperature	180°F (80°C) with polypropylene hardware 250°F (121°C) with polyester hardware or metal ring

Product Overview

Resinator users gain the non-compressible media depth of a resin filter, along with the greatly enhanced solids loading capacity and cost saving features of a Strainrite gradient-density filter bag. This product excels in a wide variety of high viscosity fluid filtration applications where authoritative removal of problematic gels is required.

These "hard body" filter bags represent a significant advancement in the utilization of rigid fiber technology and illustrate the leadership role The Strainrite Companies plays in supplying vision and technical leadership when designing and manufacturing liquid filter bags.

This graduated double layer product design combines the depth loading efficiency of resin bonded cartridges with the greater dirt loading capacity of a filter bag creating the most cost effective method for filtering both low and high viscosity fluids.

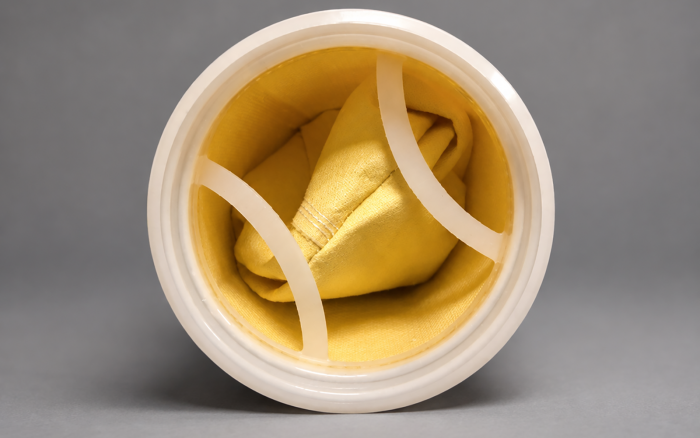

Resinator filter bags are now available in an AA (added area) configuration. This configuration provides 70% more surface area and often provides a disproportionately larger benefit. A Resinator filter bag in the AA configuration combines the benefits of a non-compressible filter medium and the extended filter life and greater throughputs of added surface area. Requires use of an AA basket.
