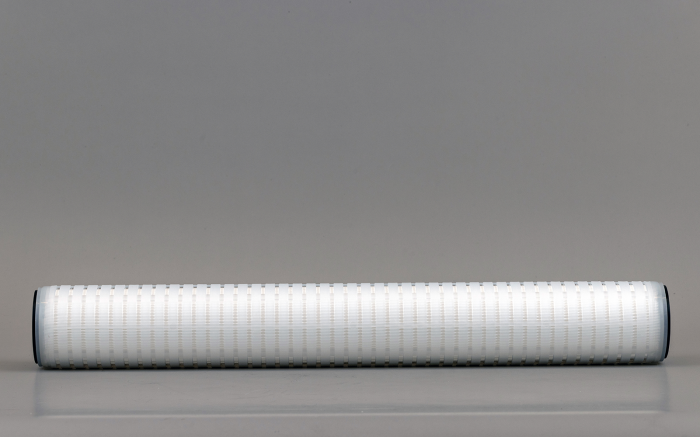

Continuous Fiber Pleat Continuous Pleat Microglass Depth
Strainrite's continuous pleat microglass filter cartridges utilize a high surface area of small denier fibers to create more void volume in a highly uniform matrix, optimizing flow rate and service life without sacrificing particle efficiency.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.2, 0.45, 0.65, 1, 5, 10 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Efficiency |
CFP0.2 — BETA1000 @ 0.8µm | BETA10 @ 0.25µm CFP0.45 — BETA1000 @ 0.9µm | BETA10 @ 0.45µm CFP0.65 — BETA1000 @ 1µm | BETA10 @ 0.65µm CFP1 — BETA1000 @ 2µm | BETA10 @ 1µm CFP5 — BETA1000 @ 10µm | BETA10 @ 5µm CFP10 — BETA1000 @ 15µm | BETA10 @ 10µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass |
| End Caps | Polypropylene |
| Pleat Support Material | Polyester |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Single packaging available. Bulk packaging in case quantities to reduce material disposal: 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | Extruded cage: 2.55" (6.48 cm) | Molded cage: 2.68" (6.81 cm) |
| Approximate Surface Area | 4 square feet per 10" |
| Lengths | 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
This revolutionary microfiber optimizes pore size geometry required to offer absolute rated filtration performance. Our high efficiency media is non-calendared at the lower micron ratings resulting in significantly reduced resistance to flow or pressure drop when compared to similarly rated polypropylene microfiber technologies.
These products are available in industrial grades that utilize epoxy binders or in FDA compliant grades, which utilize acrylic binders, and are perfect for a wide range of applications where chemical compatibility is critical.
Features & Benefits
High efficiency media provides reliable, consistent and repeatable filtration results
High surface area pleat design for greater surface area ensures longer service life, fewer change outs and reduced operating costs per cartridge
FDA Title 21 compliant for food and beverage contact
Thermally bonded construction to ensure a cleaner filtrate
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Solvent Filtration
DI/RO Prefiltration
General Water Filtration
General Chemical
Plating Solutions
Waste Water
