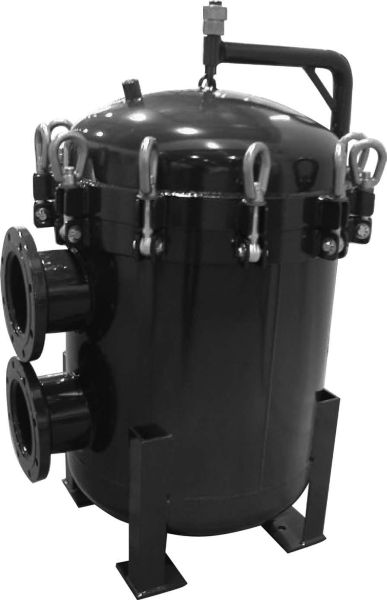

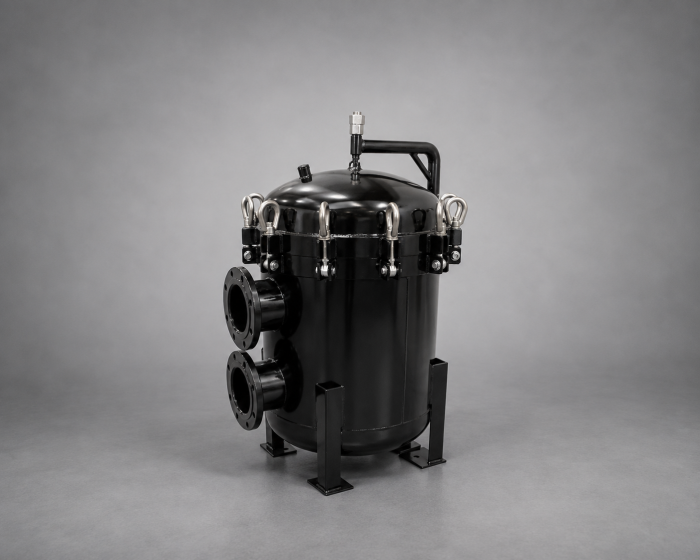

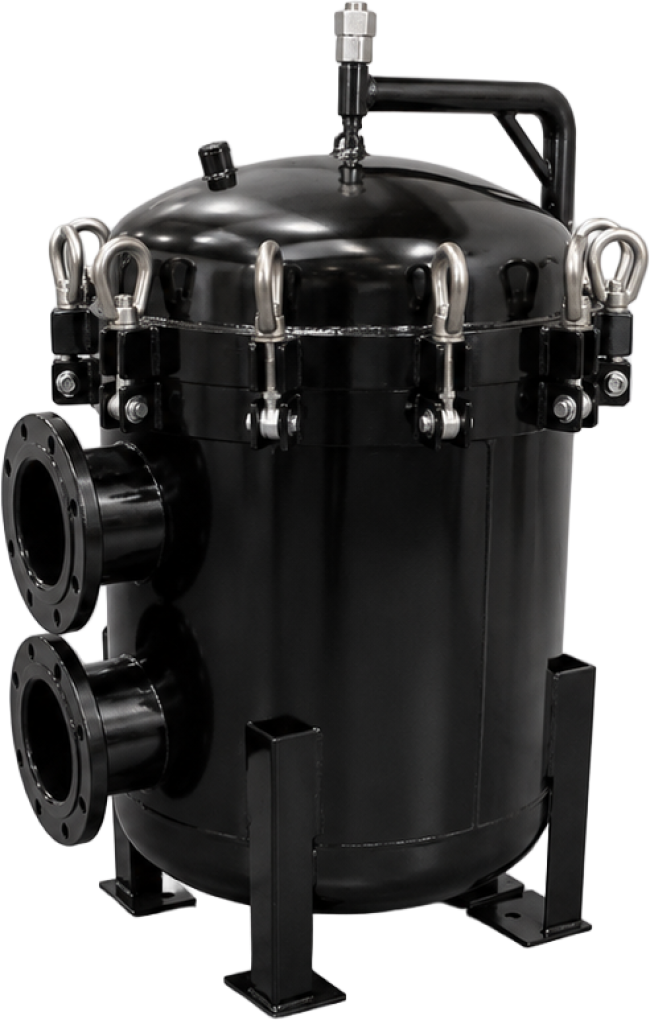

SRMB Multi-Basket Bag/Element Vessels

The SRMB multi-basket filter vessel offers large surface areas capable of handling up to 5600 gpm in a single housing. Increasing surface area allows for longer processing time prior to filter change-out.

Download Spec Sheet (PDF)

Technical Specifications

Materials & Compliance

Specification	Detail
Material Options	Carbon Steel (A), 304 Stainless Steel (B), 316 Stainless Steel (C)

Physical Specifications

Specification	Detail
Bag Count Options	2, 3, 4, 5, 6, 8, 10, 12
Inlet/Outlet Options	2″ NPT (2) 2″ RFF (2F) 3″ RFF (3F) 4″ RFF (4F) 6″ RFF (6F) 8″ RFF (8F) 10″ RFF (10F)
SRMB 2 Dimensions	Baskets: 2 \| Connection: 3″ RFF \| Overall Height (A): 55″ \| Height to Opening (B): 40″ \| Inlet to Outlet (C): 12¾″ \| Diameter (D): 16″ \| Surface Area: 9.0 sq. ft. \| Max GPM (Strainer): 600 \| Max GPM (Filter Bags): 400 \| Max Shipping Weight: 380 lbs
SRMB 3 Dimensions	Baskets: 3 \| Connection: 3″ RFF \| Overall Height (A): 55″ \| Height to Opening (B): 40″ \| Inlet to Outlet (C): 12¾″ \| Diameter (D): 18″ \| Surface Area: 13.5 sq. ft. \| Max GPM (Strainer): 900 \| Max GPM (Filter Bags): 600 \| Max Shipping Weight: 470 lbs
SRMB 4 Dimensions	Baskets: 4 \| Connection: 4″ RFF \| Overall Height (A): 55″ \| Height to Opening (B): 42″ \| Inlet to Outlet (C): 12¾″ \| Diameter (D): 24″ \| Surface Area: 18.0 sq. ft. \| Max GPM (Strainer): 1200 \| Max GPM (Filter Bags): 800 \| Max Shipping Weight: 660 lbs
SRMB 5 Dimensions	Baskets: 5 \| Connection: 6″ RFF \| Overall Height (A): 60″ \| Height to Opening (B): 42″ \| Inlet to Outlet (C): 12¾″ \| Diameter (D): 26″ \| Surface Area: 22.5 sq. ft. \| Max GPM (Strainer): 1500 \| Max GPM (Filter Bags): 1000 \| Max Shipping Weight: 775 lbs
SRMB 6 Dimensions	Baskets: 6 \| Connection: 6″ RFF \| Overall Height (A): 60″ \| Height to Opening (B): 42″ \| Inlet to Outlet (C): 12¾″ \| Diameter (D): 26″ \| Surface Area: 27.0 sq. ft. \| Max GPM (Strainer): 1800 \| Max GPM (Filter Bags): 1200 \| Max Shipping Weight: 775 lbs
SRMB 8 Dimensions	Baskets: 8 \| Connection: 8″ RFF \| Overall Height (A): 66″ \| Height to Opening (B): 47″ \| Inlet to Outlet (C): 16″ \| Diameter (D): 30″ \| Surface Area: 35.5 sq. ft. \| Max GPM (Strainer): 2400 \| Max GPM (Filter Bags): 1600 \| Max Shipping Weight: 900 lbs
SRMB 10 Dimensions	Baskets: 10 \| Connection: 8″ RFF \| Overall Height (A): 74″ \| Height to Opening (B): 52″ \| Inlet to Outlet (C): 16″ \| Diameter (D): 36″ \| Surface Area: 44.5 sq. ft. \| Max GPM (Strainer): 3000 \| Max GPM (Filter Bags): 2000 \| Max Shipping Weight: 1250 lbs
SRMB 12 Dimensions	Baskets: 12 \| Connection: 8″ RFF \| Overall Height (A): 74″ \| Height to Opening (B): 52″ \| Inlet to Outlet (C): 16″ \| Diameter (D): 36″ \| Surface Area: 54.0 sq. ft. \| Max GPM (Strainer): 3600 \| Max GPM (Filter Bags): 2400 \| Max Shipping Weight: 1350 lbs

Advanced Features

Specification	Detail
Options	BIBO – Bottom in/bottom out SIBO – Side in/bottom out ML – Mesh-lined basket U – 3rd party ASME code inspected SSB – Swing bolts/eye nut stainless steel

Product Overview

Containing anywhere from 2 to 28 bags/baskets in a single vessel, our standard side-inlet/side-outlet design offers the greatest inlet/outlet flexibility and doesn't require a platform to be built, in order to change-out or clean the filter elements or strainers.
