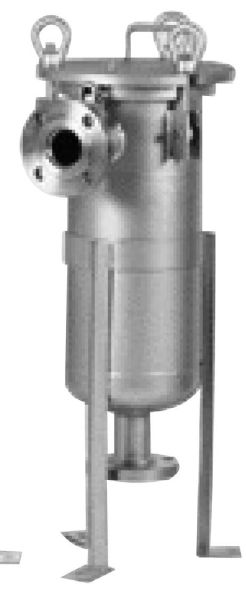

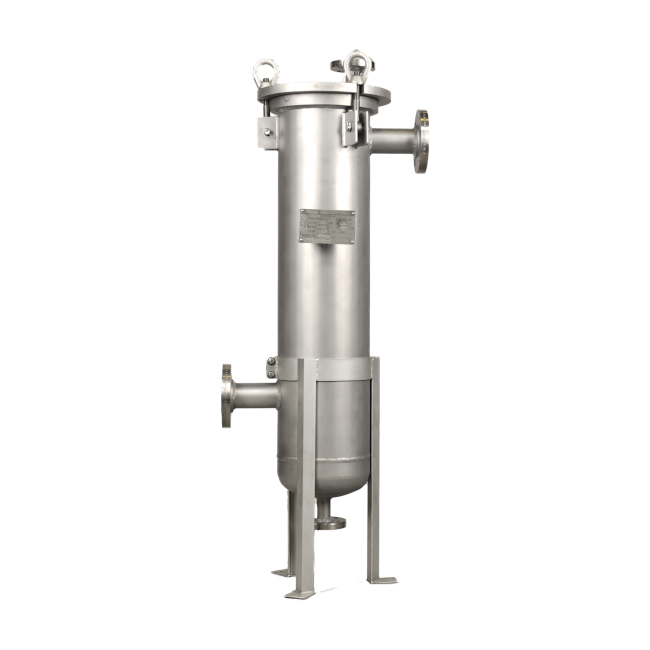

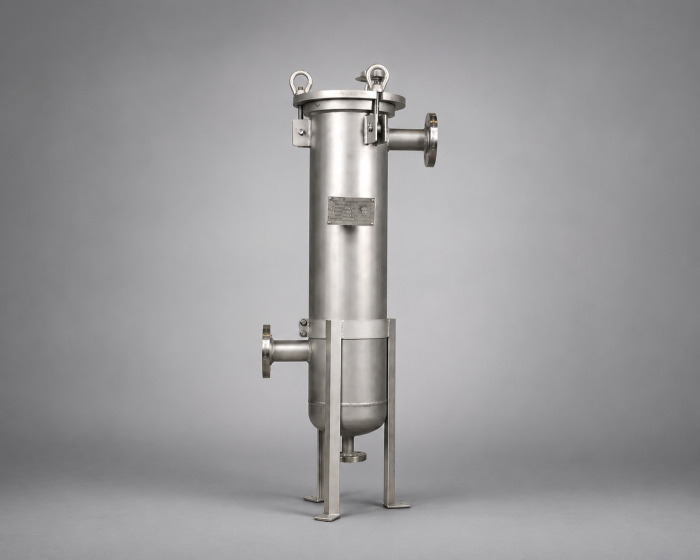

SRHD
The SRHD Heavy Duty series is designed to handle your most difficult fluid filtration requirements. Our SRHD is made from heavy duty steel components and to strict quality standards, which allows our clients the ability to change from a non-stamped to an ASME UM stamped vessel at a nominal cost.
Technical Specifications
Physical Specifications
| Specification | Detail |
|---|---|
| Bag Sizes Available | #1, #2 |
| Surface Area — SRHD 1 | 2.25 sq. ft. |
| Surface Area — SRHD 2 | 4.50 sq. ft. |
Filtration Performance
| Specification | Detail |
|---|---|
| SRHD 1 — Basket/Strainer Flow Rate | 150 gpm |
| SRHD 1 — Mesh Lined Flow Rate | 100 gpm |
| SRHD 1 — Retainer w/ Bag Flow Rate | 75 gpm |
| SRHD 2 — Basket/Strainer Flow Rate | 300 gpm |
| SRHD 2 — Mesh Lined Flow Rate | 200 gpm |
| SRHD 2 — Retainer w/ Bag Flow Rate | 150 gpm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Materials | Carbon Steel, 304 Stainless Steel, 316 Stainless Steel |
| Basket Material | 304 stainless steel wire mesh (standard) |
| O-Ring Seal Materials | Buna N, EPDM, Fluorocarbon, PTFE encapsulated |
Advanced Features
| Specification | Detail |
|---|---|
| Standard Pressure Rating | 150 PSIG |
| Optional Pressure Ratings | 300 PSI up to 1,000 PSI (contact engineering) |
| Inlet/Outlet Sizes | 0.75" to 4" NPT, RFF, or quick disconnect (minimum 2" NPT recommended for rated flow) |
| Inlet/Outlet Orientations | Side-in/bottom-out (standard single), side-in/side-out (standard Twin/Duplex), optional configurations available |
| ASME Code Stamp | Available (UM stamp) at nominal cost upgrade |
| Styles Available | Single, Twin, Duplex |
| Available Options | Sanitary design, side outlet, side-in/bottom-out, electro polish finish, differential pressure gauge ports, mesh-lined basket, code stamped, 3rd party ASME code inspected, swing bolts/eye nut stainless steel, MAXX-Flow / MAXX-Trap basket |
Product Overview
SRHD Twin and SRHD Duplex bag vessels offer economical filtration for nominally rated applications between 150 and 300 gpm.
The SRHD Twin filter system is comprised of two #2-size housings piped together and joined to a common header. This design divides flow equally between both housings and also reduces cost approximately 50% compared to a multi-bag housing holding 2 bags inside.
The SRHD Duplex filter systems offer great flexibility for continuous on-line filtration requirements. This allows for continuous operation by directing the flow from one vessel to another by opening and closing of valves. This allows one side to be serviced, while the other vessel is in use.
The SRHD series incorporates our unique radial seal design that provides a hermetic seal between the basket and vessel. Utilizing a radial seal with our retainer baskets eliminates "basket rocking", which causes bypass as the basket becomes out of round. "Basket rocking" is common in low-cost bag vessels that do not incorporate an O-ring seal and can cause unfiltered liquid bypass. The Strainrite Companies' SRHD, with a radial seal, has a machined surface that produces a positive seal to eliminate bypass.
Features & Benefits
Hermetic radial O-ring sealed retainer basket eliminates potential for bypass and "basket rocking"
Adjustable tri-pod stand offers flexibility when plumbing into an existing line
Inlet/outlet orientation: side-in bottom-out (standard), side-in side-out (optional)
Pipe sizes: 0.75" to 4" NPT, RFF or quick disconnect
Standard pressure ratings: 150 PSI
Stainless steel wire mesh basket
Swing bolt closures
Adjustable-height legs
Large-area, heavy-duty baskets
Built-in volume displacer in cover
Optional::
Sanitary construction, Higher pressure ratings, ASME code stamp, Custom pressure ratings — 300 PSI up to 1,000 PSI, Different outlet connections and orientations, Heat jacketing, Pipe or flange 1"–4", Compression device, MAXX-Flow / MAXX-Trap baskets available.
