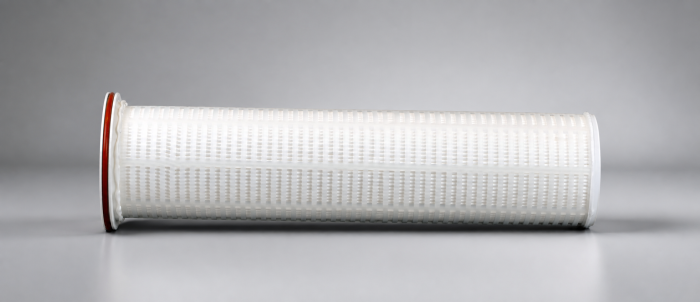

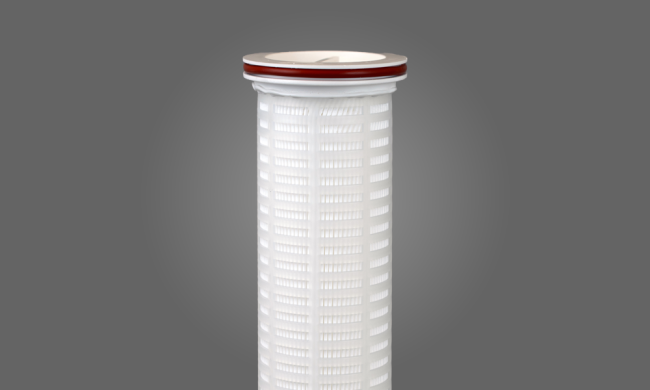

Madd MAXX MF Absolute Rated Polypropylene Hybrid Elements
Strainrite's MADD-MAXX MF filters are engineered for critical high purity applications, optimizing throughput while maintaining an absolute rated performance that is consistent and reliable. Our superior filter media is constructed on the latest continuous microfiber blowing equipment, which accurately controls fiber diameter and web design. This state-of-the-art equipment utilizes online monitoring equipment, delivering the industry's most uniform and consistent media, resulting in unparalleled product consistency.
Technical Specifications

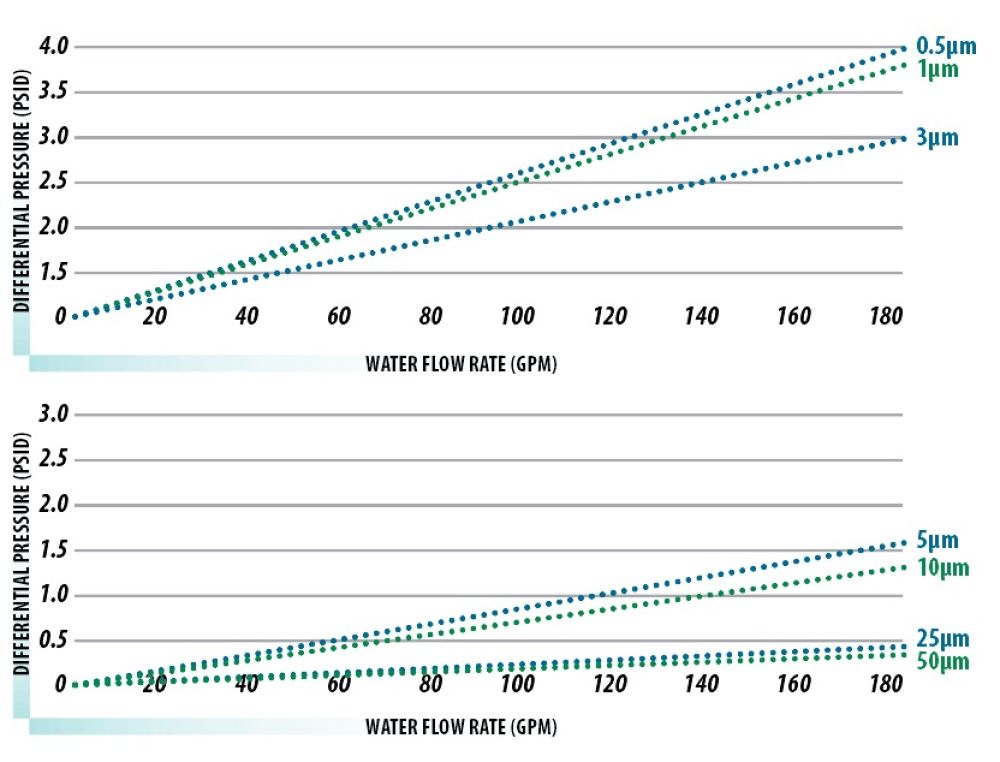

Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating | 0.5, 1, 3, 5, 10, 25, 50 |
| Maximum Differential Pressure | 25 PSID @ 70°F (21°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene microfiber |
| Hardware | Polypropylene |
| Support Material | Polypropylene |
| Cage | Polypropylene |
| O-Rings | Buna N, Fluorocarbon, EPDM, Silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Nominal Top Outside Diameter | 6.5"–7.5" |
| Nominal Surface Area |
P1 - 17 square feet P2 - 40 square feet P3 - 46 square feet P4 - 60 square feet |
| Nominal Lengths |
P1 - 12" (30.5 cm) P2 - 26" (66.3 cm) P3 - 30" (76.5 cm) P4 - 40" (102 cm) |
Product Overview
This element combines the advantages of typical bag filtration, ease of use, and exceptional dirt holding capacity with the high efficiency and performance of cartridge filtration. The inside-out flow design ensures that unwanted contaminates stay inside the element during change out, virtually eliminating the possibility of downstream contamination. Our 100% polypropylene construction provides an excellent range of chemical compatibility for your most demanding applications. All materials of construction meet or exceed the requirements of CFR 21 for food and beverage contact.
Features & Benefits
Absolute-rated media provides reliable, consistent and repeatable filtration
Faster change-outs compared to standard high performance cartridges
Contaminants are captured inside the element, eliminating downstream contamination
100% polypropylene, FDA compliant with CFR 21
Thermally bonded end caps
Single O-ring seal ensures a hermetic seal for high purity applications
Maximum pleat design for greater surface that ensures longer service life, less downtime, and reduced operating costs per element
Lower pressure drops yield higher flow rates and reduced processing time
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Food and Beverage
DI/RO Prefiltration
Edible Oils
Reagent Grade Chemicals
General Water Filtration
Wastewater
Amine Fluids
Glycol Fluids
