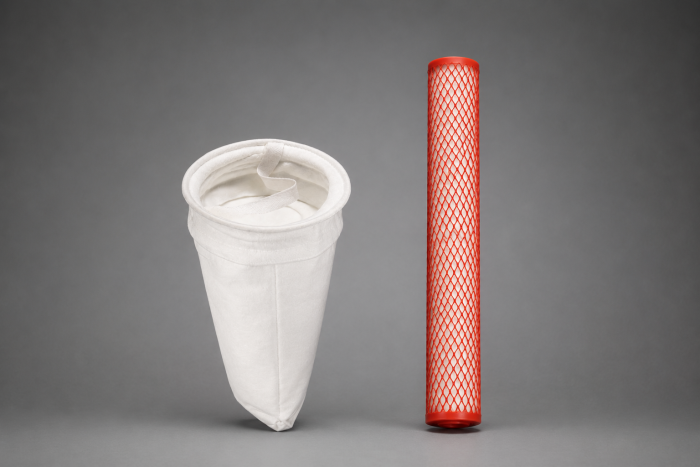

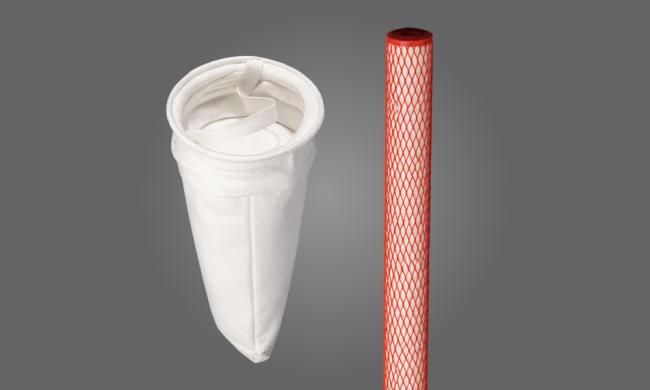

Oil Absorption Log / Oil Bag
The Strainrite Companies oil absorbing filter bags are made from polypropylene media that absorb oil. Oil bags utilize multi-layered technology to absorb trace amounts of oils from water at moderate flow rates. Typically sizes are #1 and #2 industry standards and other sizes are available upon request.
Technical Specifications
Physical Specifications
| Specification | Detail |
|---|---|
| Oil Bag Size #1 | 7" x 16" |
| Oil Bag Size #2 | 7" x 32" |
| Oil Log OE-LOG-1B | 3" dia x 15" long, capacity 190 grams |
| Oil Log OE-LOG-2B | 3" dia x 24" long, capacity 355 grams |
Materials & Compliance
| Specification | Detail |
|---|---|
| Oil Bag Material | Polypropylene oil-absorbing media (multi-layer) |
| Oil Log Media | Polypropylene melt blown microfiber and felt media |
| Oil Log Cover | Heavy polypropylene mesh |
| Oil Log Core | Polypropylene center core |
| Ring Options (Oil Bag) | Polypropylene P-flange, polypropylene M-flange, carbon steel ring, stainless steel ring |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings (Oil Bag) | 1 to 200 micron |
| Recommended Flow Rate — Oil Bag #1 | 25 gpm |
| Recommended Flow Rate — Oil Bag #2 | 50 gpm |
| Oil Capacity — Oil Bag #1 | 1,790 grams |
| Oil Capacity — Oil Bag #2 | 2,890 grams |
| Oil Log Capacity — OE-LOG-1B | 190 grams |
| Oil Log Capacity — OE-LOG-2B | 355 grams |
Product Overview
The Strainrite Companies oil absorption logs are made from polypropylene melt blown microfiber and felt media. The log is surrounded with a heavy polypropylene mesh cover with a polypropylene center core for rigidity.
These logs can either be inserted inside a filter bag or can float on top of oil contaminate drums or vats. The unique design enhances the media's ability to "wick" the free oil and grease from contaminated liquid. The only Delta P restrictions you have is based on that of the filter bag itself, as the flow of liquids passes around the oil log.
Features & Benefits
Dual-function oil/particulate removal
Multiple efficiencies available from 1 micron to 200 micron
Can be made with steel ring, M-flange or P-flange
Recommended flow rate: Oil Bag #1: 25 gpm, Oil Bag #2: 50 gpm
Oil capacity: Oil Bag #1: 1,790 grams, Oil Bag #2: 2,890 grams
Made from polypropylene melt blown microfiber and felt media (Oil Log)
Heavy polypropylene mesh cover (Oil Log)
Polypropylene center core for rigidity (Oil Log)
Markets & Applications
Automotive Paints
Produced Fluids
Plating Solutions
Parts Cleaning
