Products Filter Bags Micron-Rated Felt Bags

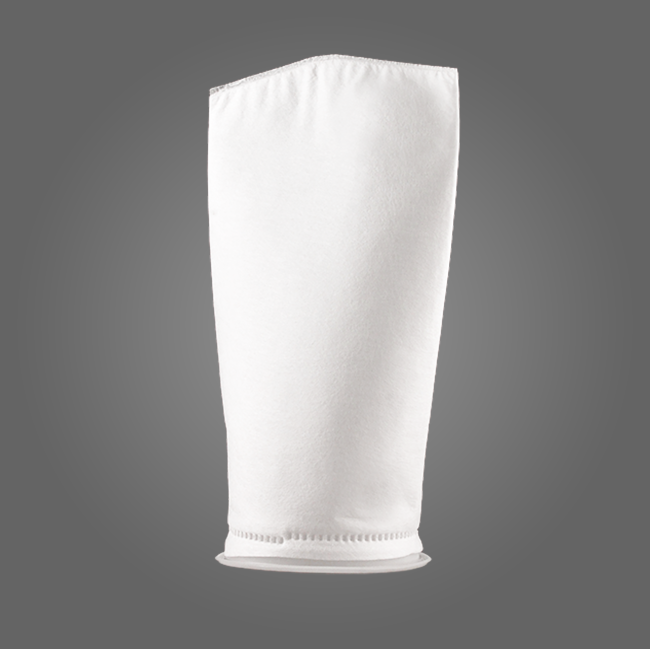

Sure-Weld Micron-Rated Welded Felt Filter Bags

The Sure-Weld felt filter bag, with our proprietary "Tri-Seal" P-flange provides a distinct advantage compared to conventional sewn filter bag with metal snap rings or industry standard poly flanges. Using state-of-the-art welding technology specifically designed to bond needle punched textile fabrics, we are able to offer the strongest most reliable welded filter bags on the market.

Download Spec Sheet (PDF)

Sure-Weld Micron-Rated Welded Felt Filter Bags

Technical Specifications

Filtration Performance

Specification	Detail
Available Micron Ratings (Polypropylene)	0.5*, 1T, 1, 3, 5, 10, 25, 50, 75, 100, 150, 200
Available Micron Ratings (Polyester)	0.5*, 1T, 1, 3, 5, 10, 25, 50, 75, 100, 150, 200
Available Micron Ratings (Nomex)	1, 5, 10, other microns available on request
Available Micron Ratings (Nylon)	Available on request

Materials & Compliance

Specification	Detail
Material Options	Polypropylene felt (SP), polyester felt (AP), Nomex (HT), nylon (N)
Polypropylene Chemical Compatibility	Acids: Excellent (200°F) Alkali: Excellent (200°F) Oxidizing agents: Excellent (200°F) Solvents: Average (200°F)
Polyester Chemical Compatibility	Weak acids: Good (300°F) Strong acids: Good (300°F) Weak alkali: Poor (300°F) Strong alkali: Poor (300°F) Solvents: Very good (300°F) Petroleum products: Very good (300°F)

Physical Specifications

Specification	Detail
Size Options	Size 1: 7" x 16" Size 2: 7" x 32" Size 3: 4.08" x 8"* Size 4: 4.08" x 14"* Size 25: 4" x 9"* Size 30: 4.118" x 10"* Size 50: 4" x 21"* Size 65: 4.118" x 22"*
Ring Options	P: Polypropylene P-flange M: Polypropylene M-flange PER: Polyester P-flange MER: Polyester M-flange DS: Draw string (not available in Sure-Weld) S: Carbon steel ring (not available in Sure-Weld) SS: Stainless steel ring (not available in Sure-Weld) PR: Polypropylene ring (not available in Sure-Weld) N: No ring (not available in Sure-Weld) Z: Polypropylene Z-flange (fits size 25, 50 bags only; not available in Sure-Weld)
Finish Options	S: Singed P: Plain B: Singed both sides (not available in Sure-Weld) C: Cerex cover (not available in Sure-Weld) N: Nylon mesh cover (not available in Sure-Weld)
Options	WE: Sure-Weld, HS: Handle-strap, AS: Fully stitched

Product Overview

Our Sure-Weld filters come with the security of an overlap side seam, which eliminates the "bump" that occurs with conventional sewn snap ring filters. By welding to a "Tri-Seal" P-flange our fully welded filter bags offer unparalleled seal security, which delivers superior filtrate consistency.
