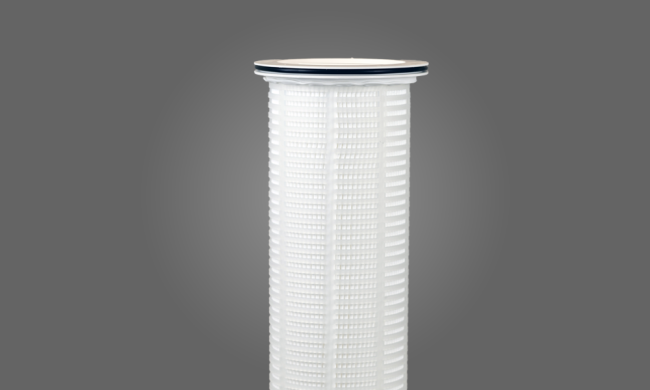

Madd MAXX GF Absolute Rated Microglass Hybrid Elements
Strainrite's MADD-MAXX GF filters are engineered for critical high purity applications, optimizing throughput while maintaining an absolute rated performance that is consistent and reliable. Our microglass filter elements feature a media structure with high surface area and increased void volume, as well as optimized pore size geometry.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating | 0.5, 1, 3, 5, 10, 15 |

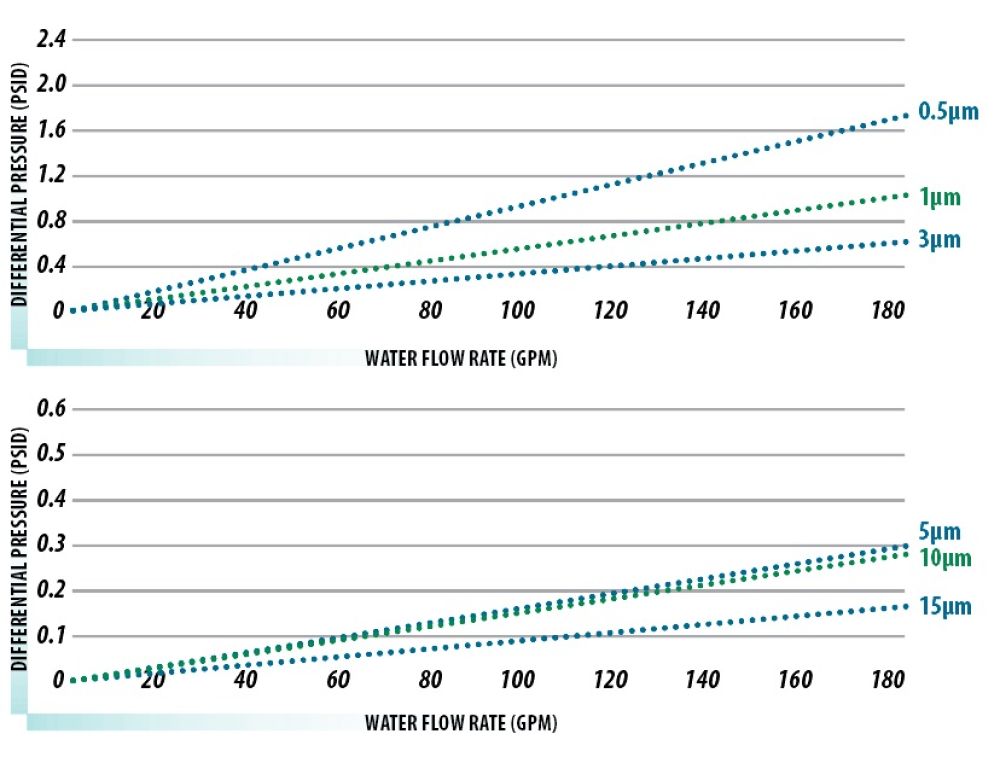

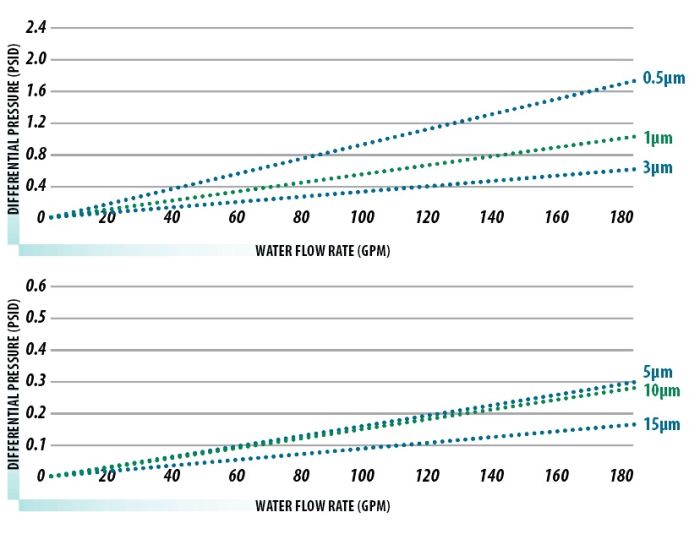

| Maximum Differential Pressure | 25 PSID @ 70°F (21°C) |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass |
| Hardware | Polypropylene, Polyester |
| Support Material | Polypropylene, Polyester |
| Cage | Polypropylene, Polyester |

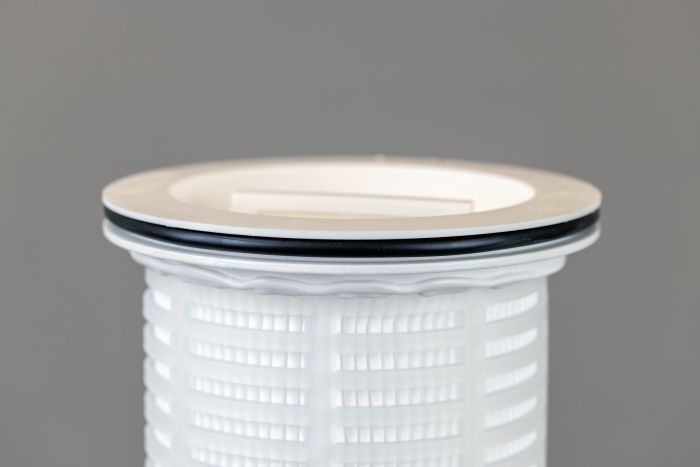

| O-Rings | Buna N, Fluorocarbon, EPDM, Silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Temperature |
180°F (82°C) continuous duty polypropylene 300°F (149°C) continuous duty polyester |
| Nominal Top Outside Diameter | 6.5" - 7.5" |
| Nominal Surface Area | P1 - 17 square feet | P2 - 40 square feet | P3 - 46 square feet | P4 - 60 square feet |
| Nominal Lengths | P1 - 12" (30.5 cm) | P2 - 26" (66.3 cm) | P3 - 30" (76.5 cm) | P4 - 40" (102 cm) |
Product Overview
Precision blowing of fine denier fibers results in a highly uniform matrix that optimizes element flow rate and service life. This advanced fine fiber technology outperforms all competing microfiber technologies. MADD-MAXX GF filter elements increase filtration efficiency of any existing bag filter vessel versus conventional filter bags.
MADD-MAXX GF pleated elements are the preferred choice for filtering beverages such as beer and wine because they do not remove flavor enhancing proteins. We utilize acrylic binders that meet the requirements of CFR 21 for food and beverage contact. Our standard elements utilize an epoxy binder, providing the MADD-MAXX with a greater range of chemical compatibility in a wider range of applications.
Features & Benefits
Absolute-rated media provides reliable pore size control resulting in repeatable filtration performance
Non-fiber releasing materials with minimal extractables providing high purity filtrate
Lower pressure drops yield higher flow rates and reduced processing time
Wide chemical compatibility
Maximum pleat design coupled with non-calendered microfiber matrix offers greater surface area, ensuring longer service life, less downtime, and reduced operating costs per element
Standard grade utilizes an epoxy binder, FDA grade utilizes an acrylic binder
Thermally bonded construction, eliminating particle bypass
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Reagent Grade Chemicals
General Water Filtration
Wastewater
Amine Fluids
Glycol Fluids
Food and Beverage
DI/RO Prefiltration
Edible Oils
