Products Filter Bags Micron-Rated Mesh Bags

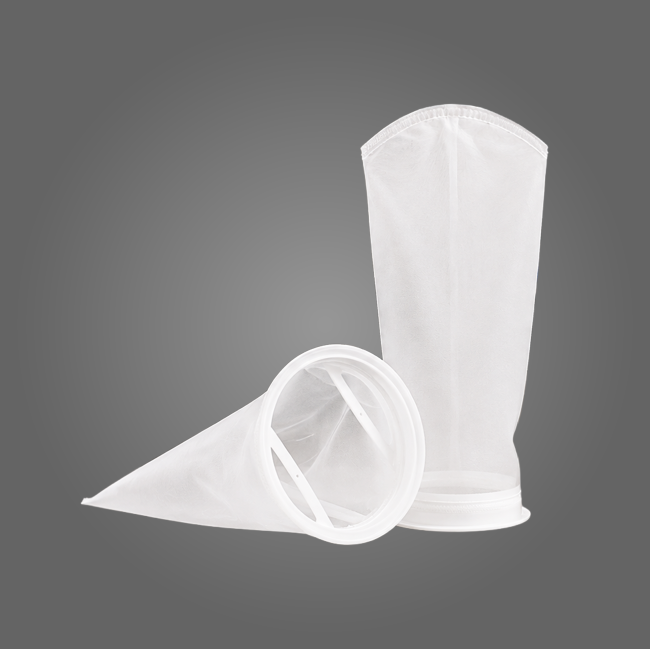

Monofilament Micron-Rated Mesh Bags

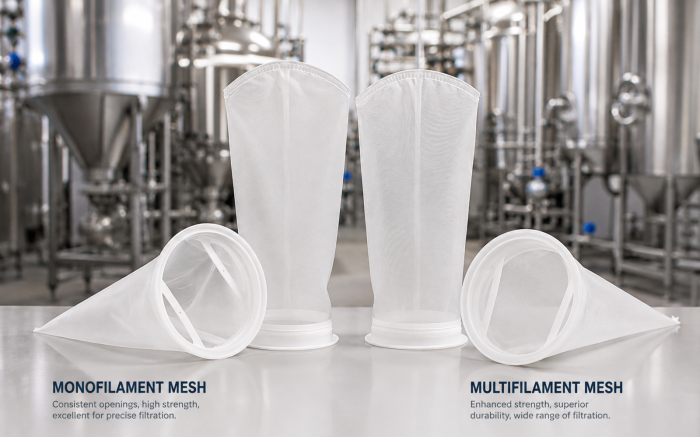

Monofilament mesh filter bags are manufactured in a wide range of micron ratings using a single filament weave. Single filament woven media provides two distinct advantages over multi-filament media, excellent fabric strength and perfectly uniformed openings.

Download Spec Sheet (PDF)

Technical Specifications

Materials & Compliance

Specification	Detail
Available Materials	Nylon monofilament (NMO), polyester monofilament (PEMO), polypropylene monofilament (POMO)
Compliance	Nylon monofilament is FDA and EU compliant

Physical Specifications

Specification	Detail
Micron Ratings (NMO, PEMO, POMO)	1, 5, 10, 25, 35, 50, 75, 100, 125, 150, 200, 250, 300, 400, 600, 800
Available Sizes	Size 1: 7" x 16" Size 2: 7" x 32" Size 3: 4.08" x 8" Size 4: 4.08" x 14" Size 25: 4" x 9" Size 30: 4.118" x 10" Size 50: 4" x 21" Size 65: 4.118" x 22"
Ring Options	Polypropylene P-flange, polypropylene M-flange, polyester P-flange, polyester M-flange, draw string, carbon steel ring, stainless steel ring, polypropylene ring, no ring, polypropylene Z-flange (sizes 25 and 50 only)
Style Options	Standard, automotive
Finish	Plain (P)
Options	HS handle-strap

Product Overview

Monofilament mesh is available in 1 through 800 microns as standard and larger for special orders. For applications where clients require no fiber migration at a high level of efficiency, mono-filament material is a perfect fit.

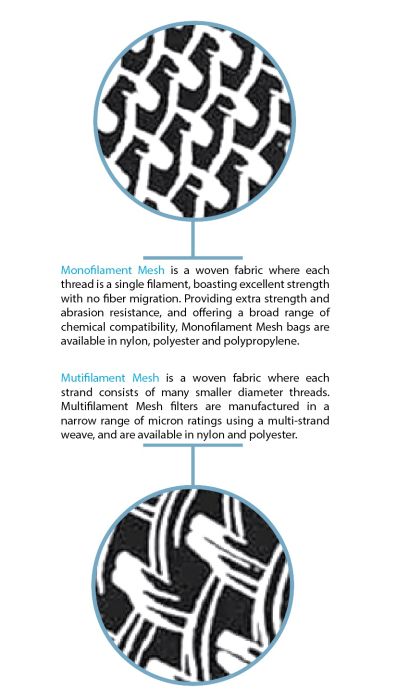

Monofilament mesh is a woven fabric where each thread is a single filament, boasting excellent strength with no fiber migration. Providing extra strength and abrasion resistance, and offering a broad range of chemical compatibility, monofilament mesh bags are available in nylon, polyester and polypropylene.
