SRMS

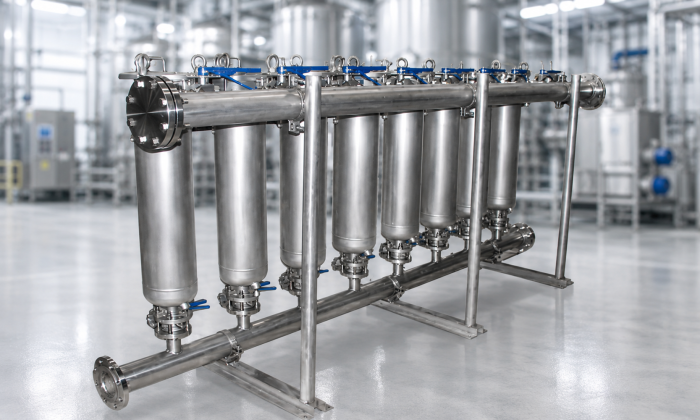

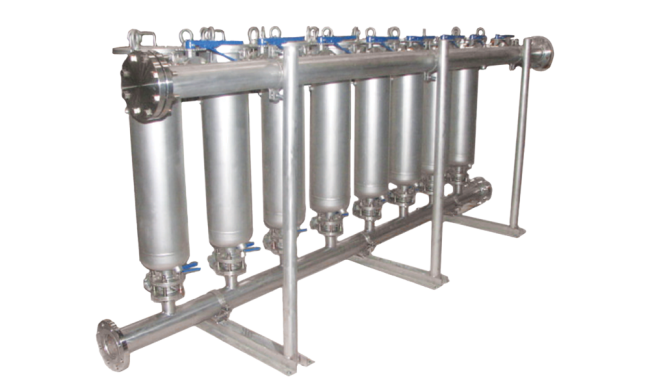

Strainrite's SRMS Manifold Filtration Systems consist of two or more filter vessels piped in series or parallel. Strainrite offers countless configurations and flow designs depending on the user's specific needs. The standard design is to configure the vessels in parallel with isolation valves on each vessel.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Materials | Carbon Steel, 304 Stainless Steel, 316 Stainless Steel |
Physical Specifications
| Specification | Detail |
|---|---|
| Vessel Count | 2, 3, 4, 5, 6, 8, 10 |
| Branch Size | 2" pipe, 3" pipe |
| Header Size | 2" header, 3" header, 4" header, 6" header |
| Vessel Type | SRHD, SRID |
Advanced Features
| Specification | Detail |
|---|---|
| Valve Options | No valves, valves |
| Options |
EP – Electro polish finish MLB – Mesh-lined basket UM – Code stamped U – 3rd party ASME code inspected SSB – Swing bolts/eye nut stainless steel DPG – Differential manifold pressure gauge ports |
Product Overview
A four-vessel system can also be configured in a box design, which allows for graduated filtration and continuous flow. Given the modular nature of manifold systems, throughput capability can be easily expanded or contracted as needed, and the footprint is adaptable to available space.
Contact our engineering personnel to configure the ideal system for your application.
Features & Benefits
-in volume displacer in cover (SRHD) 150 PSI design, available to 300 PSI
Inlet/outlet orientation: side-in/bottom-out (standard)
Low pressure drop
Stainless steel wire mesh basket
Positive cover seal
Easily cleaned
ASME code stamp available on all SRHD-style vessels
