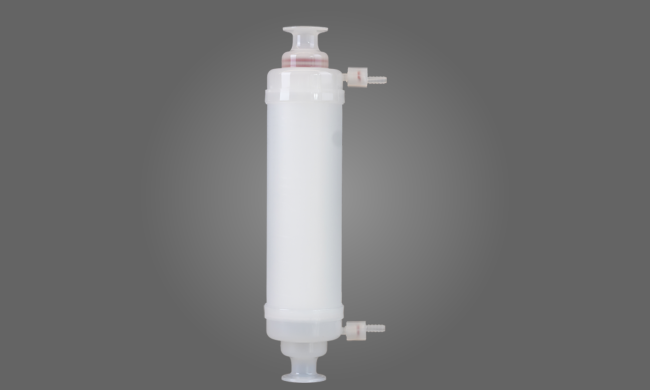

MAXX-Cap

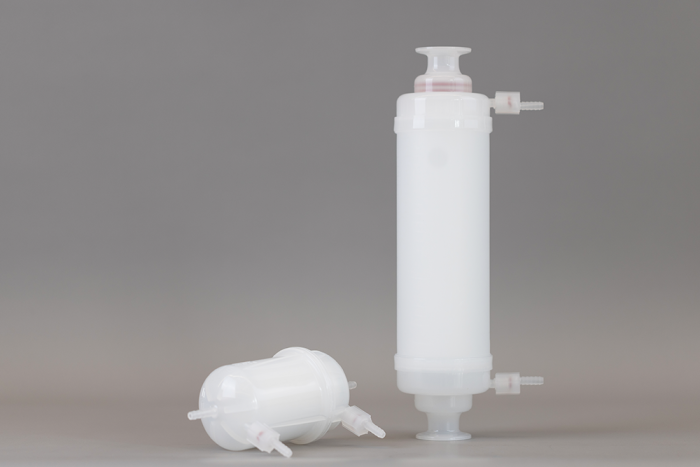

The Strainrite MAXX-Cap capsule is made of ultrapure polypropylene using FDA compliant materials. The MAXX-Cap was designed for single-use and multi-use applications. Strainrite's depth filters and our complete line of membranes can be installed in our proprietary capsule design.

Download Spec Sheet (PDF)

Technical Specifications

Filtration Performance

Specification	Detail
Maximum Pressure	70 psi @ 70°F (21.1°C)
Maximum Operating Temperature	180°F (82°C) continuous duty

Materials & Compliance

Specification	Detail
Membrane Media	Polyethersulfone, polysulfone, nylon
Pleated Depth Media	Borosilicate microglass, polypropylene microfiber
Pleat Support Material	Polypropylene, polyester
Capsule Hardware	Polypropylene
End Caps	Polypropylene
Cartridge Seals	Buna N, fluorocarbon, EPDM, silicone
Cage/Core	Polypropylene
Capsule Vent Seals	Buna N, fluorocarbon, EPDM, silicone
Construction Method	Thermal bond
Toxicity	Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact

Advanced Features

Specification	Detail
Sterilization	Autoclave: may be autoclaved 3 times for 60 minutes. Not in-line steam sterilizable.
Packaging Economy	Bulk packaging in case quantities to reduce material disposal: 5 inch - individually boxed, 6 case / 9 case quantity 10 inch - individually boxed, 6 case / 12 case quantity 20 inch - individually boxed, 6 case quantity 30 inch - individually boxed, 6 case quantity 40 inch - individually boxed

Physical Specifications

Specification	Detail
Outside Diameter	3.5" (8.89 cm)
Nominal Lengths	5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm)

Product Overview

Our proprietary design utilizes an inlet and outlet vent for confident start up and safe efficient processing. Strainrite offers a wide array of materials from the innovative SG to our charged modified CN as well as absolute and nominal media like polypropylene and microglass. Strainrite capsules will also accept our sterile air and vent product line, the Vent MAXX and Vent Rite.

MAXX-Cap is available in sizes from 5" to 40". Strainrite offers the advantages of a capsule with low internal void space, that reduces valuable product loss by reducing your process costs. All Strainrite capsules are adaptable for use with sanitary fittings that can be autoclaved. Strainrite MAXX-Cap capsules may be integrated into existing capsule applications.

Made of 100% polypropylene, Strainrite's capsule design incorporates thermal bonding. Thermal bonding provides an integral fit that requires no glues, binders, surfactants or adhesives. This design ensures low extractable filtrate when incorporated with our low extractable 100% clean room manufactured cartridges.
