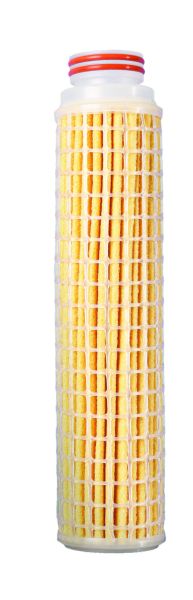

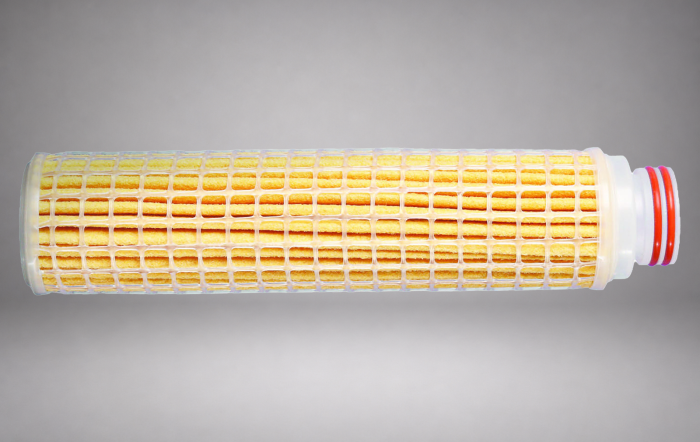

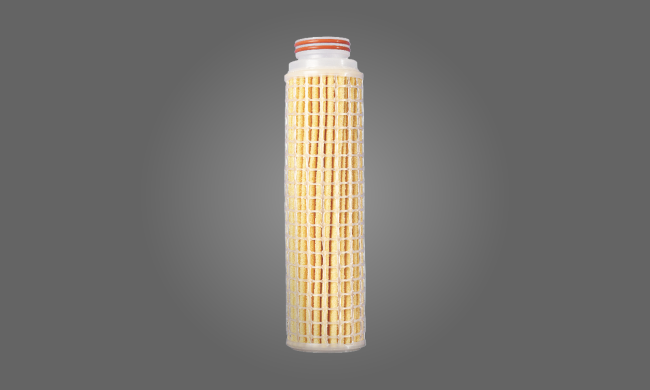

CRB Pleat Continuous Resin-Bonded Polyester Depth
Strainrite's continuous resin-bonded depth filter cartridges are manufactured using long staple polyester fibers, in a specific blend of fiber diameters, and offer the broadest range of micron rated cartridges, while virtually eliminating fiber migration. Utilizing our proprietary resin coating process, we are able to take well defined micron rated depth media and treat the material, converting it from a soft, compressible fabric, to a highly advanced rigid fiber technology.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Nominal Rated Retention | 1, 5, 10, 25, 50, 75, 100, 200 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 250°F (121°C) continuous duty |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Phenolic resin-impregnated polyester material |
| End Caps | Polypropylene, polyester |
| Cage/Core | Polypropylene, polyester |
| Construction Method | Thermal bond |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy | Single packaging available. Bulk packaging in case quantities to reduce material disposal: 9.75–10 inch - 24 per carton, 19.5–20 inch - 12 per carton, 29.35–30 inch - 12 per carton, 39–40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | Extruded cage: 2.55" (6.48 cm), molded cage: 2.68" (6.81 cm) |
| Approximate Surface Area | 3 square feet per 10" |
| Lengths | 9.75" (24.8 cm), 10" (25.4 cm), 19.5" (49.6 cm), 20" (50.8 cm), 29.25" (74.4 cm), 29.5" (76.2 cm), 30" (76.2 cm), 39" (99.4 cm), 40" (102 cm) |
Product Overview
This unique rigid fiber depth filter cartridge is engineered to take advantage of targeted depth media in an optimized pleated configuration, to maximize solids loading, gel removal capacity, and filter life. CRB cartridges contain more than 3.5 ft² of surface area per 10" segment, as compared to approximately 0.5 ft² of surface area per 10" segment in a typical molded or wound resin bonded cartridge. Increased surface area reduces flow velocity, which increases filter life exponentially due to a reduction in particle penetration, promoting increased dirt holding capacity and filter life.
These exceptional pleated cartridges are perfect for both aqueous and non-aqueous liquids. CRB fibers are already fully impregnated, diminishing problematic swelling caused by fluid absorption. This prevents the CRB from prematurely blinding off, making it superior to common untreated filters.
Features & Benefits
Virtually no fiber migration, due to the utilization of long polyester heat set fibers
Longer filter life also reduces labor time associated with change-outs
Higher surface area compared to industry standard resin bonded cartridges, which provides longer filter life, reduced disposal cost and lower cost per gallon to filter
Extremely high flow rates, due to a substantial increase in surface area
High integrity one piece construction
No epoxies, glues or adhesives
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Machine Tool Coolants
Oil Well Completion Fluids
Oils
Hydraulic Fluids
Highly Viscous Fluids
Heavy Brine Solutions
Inks
Adhesives
Coatings
Resins
