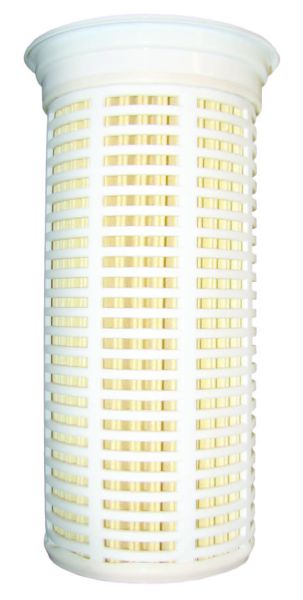

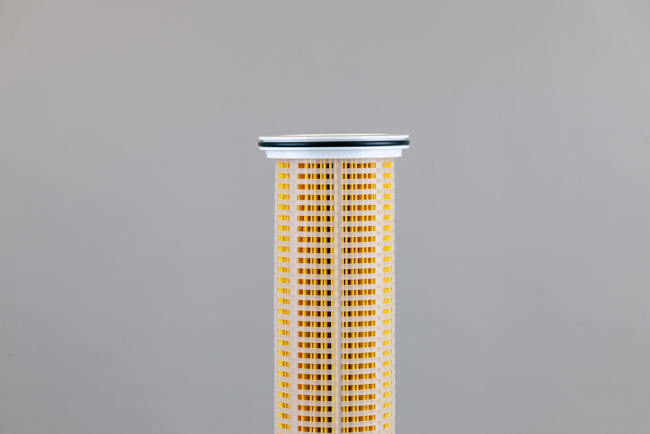

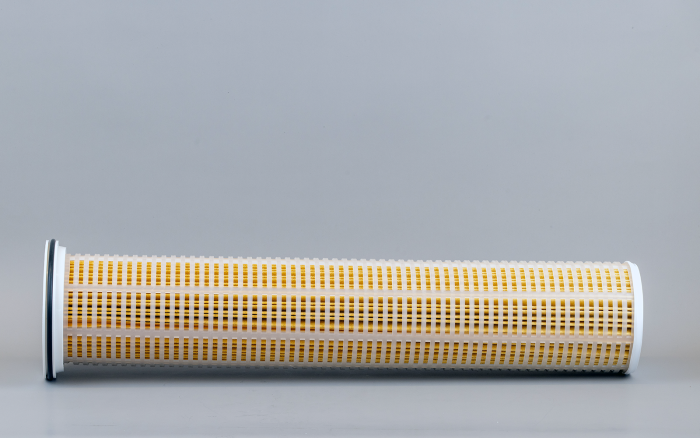

Visc-MAXX Resin-Bonded Polyester Felt Hybrid Element
Combining the advantages of resin-bonded cartridges, noncompressible media, and enhanced depth filtration, with the proven inside out flow advantages of bag filtration, makes the Visc-MAXX the optimum alternative to cartridge filtration.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating | 1T, 1, 5, 10, 25, 50, 75, 100, 200 |
| Maximum Differential Pressure | 25 PSID @ 70°F (21°C) |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Phenolic treated long-fiber polyester |
| Hardware | Polypropylene, polyester |
| Cage | Polypropylene, polyester (P-flange top and M-flange top only) |
| O-Rings | Buna N, fluorocarbon, EPDM, silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Temperature |
170°F (77°C) continuous duty polypropylene 250°F (121°C) continuous duty polyester |
| Nominal Top Outside Diameter | 6.75" – 7.45" |
| Nominal Surface Area | P1 - 8 square feet | P2 - 18 square feet | P3 - 22 square feet | P4 - 30 square feet |
| Nominal Lengths | P1 - 12" (30.5 cm) | P2 - 26" (66.3 cm) | P3 - 30" (76.5 cm) | P4 - 40" (102 cm) |
Product Overview
The Visc-MAXX utilizes a phenolic treated polyester large fiber material in a gradient density pleat design to create the perfect resin bonded filter.
Our unique patent protected textile provides unsurpassed gel and particle removal due to maximized surface area and the true non-compressible depth design.
A chronic complaint of conventional resin-bonded cartridge users is post-filter fiber migration, which results in compromised product and a need to re-filter. Our proprietary textile eliminates these problems entirely. Cages can be designed with specific applications in mind. Choices include polypropylene, polyester and phenolic-treated polyester.
Features & Benefits
No fiber migration due to the utilization of lengthy heat set fibers
Increased surface area means longer filter life and reduced disposal cost
Longer filter life reduces labor time associated with change-outs
Higher productivity due to longer run times
Gradient density design, preventing premature blinding of final filtration layer
Thermally bonded end caps eliminate bypass
One P1 size element replaces (40) 10" equivalent resin bonded cartridges
Markets & Applications
Coolants
Glycol Fluids
Amine Fluids
Fine Chemicals
Plating Solutions
Petrochemicals
Cooling Towers
Down Well Injections
Cutting Fluids
Adhesives
Inks, Paints and Coatings
