SRVB

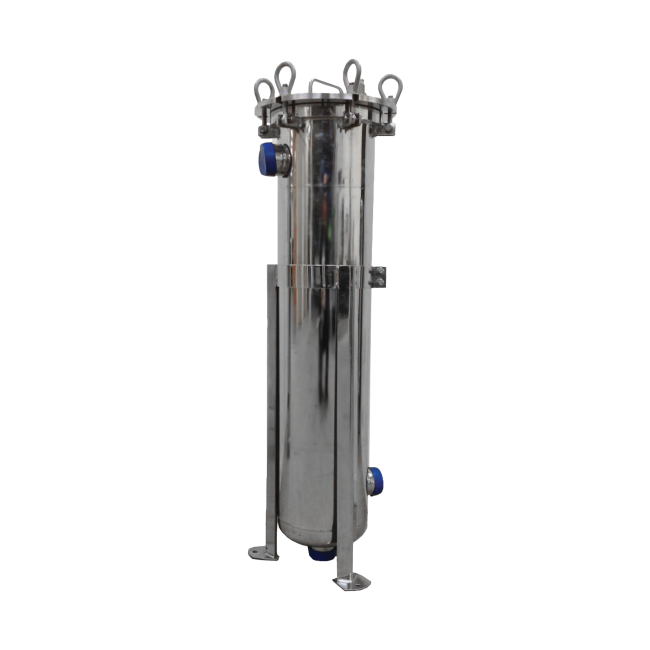

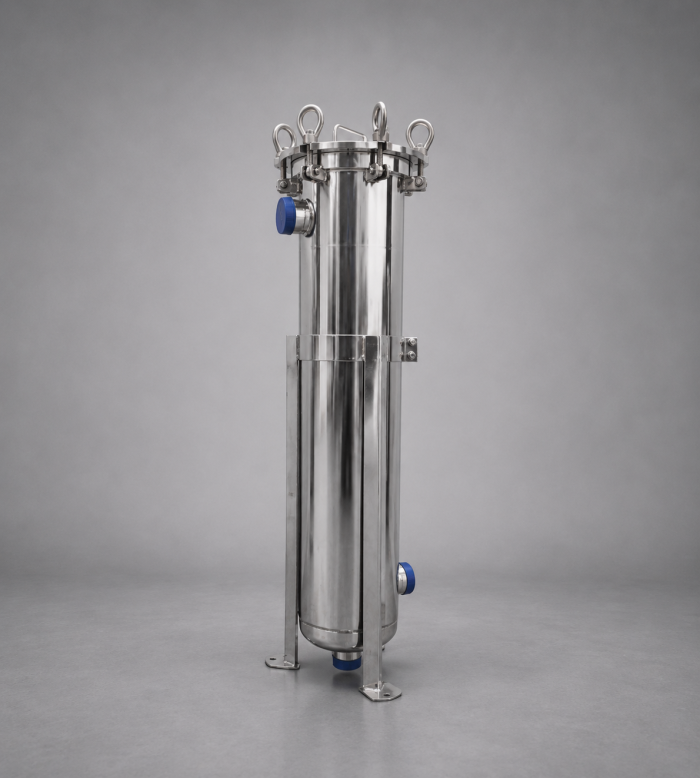

The SRVB Value Design vessels provide economical filtration of a wide variety of liquids in a lightweight, externally polished stainless steel design, with features including a swing bolt secured, quick opening cover and an internal positive pressure bag hold-down device. The SRVB vessels accommodate one standard
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Maximum Allowable Pressure | 150 psi (10.3 bar) |
| Maximum Allowable Temperature | 300°F (149°C) |
Materials & Compliance
| Specification | Detail |
|---|---|
| Material | 304 stainless steel (polished and passivated) |
| O-Ring Options | Fluorocarbon (standard), Buna N, EPDM |
| Closure Hardware | Stainless steel |
Physical Specifications
| Feature | Benefit |
|---|---|
| Bag Count | Single bag, four bags, or six bags |
| Bag Size | #1 (special request only) or #2 |
| Inlet/Outlet Connections | 2" NPT, 2" RFF, 4" RFF, 6" RFF (six bag count only) |
Product Overview
SRVB multi-bag vessels accommodate four or six standard #2 bags. These vessels are manufactured from polished and passivated 304 stainless steel and rated for 150 psi (10.3 bar).
Features & Benefits
SRVB Single Bag: NPT option offers dual 2" outlet ports on bottom and side locations
SRVB Single Bag: Mounting legs are adjustable, providing flexibility for installation height and orientation volumes
SRVB Multi-Bag: Bottom in-line connection design
Swing bolted o-ring closure seal provides quick & positive seal with easy access to the vessel interior and filter bag
FNPT threaded and ANSI B16.5 flanged connections are available in specific models
Fluorocarbon seals are standard with other material options available
Standard threaded FNPT vent & drains
Standard stainless steel closure bolt hardware
Polished exterior & pickle passivate interior/exterior for enhanced corrosion resistance
