SRX / SRMX
X-TRA Seal Bag/Element Vessels
Absorb-Rite ®

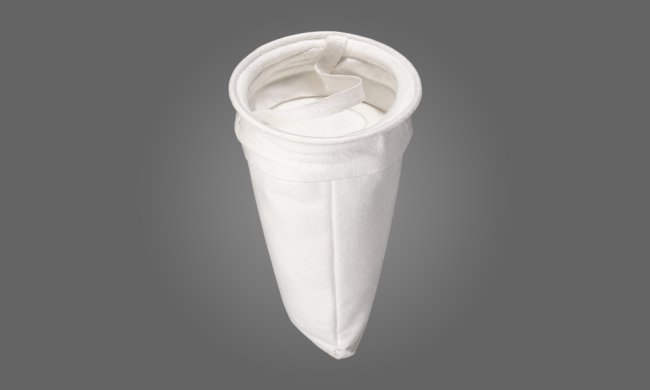

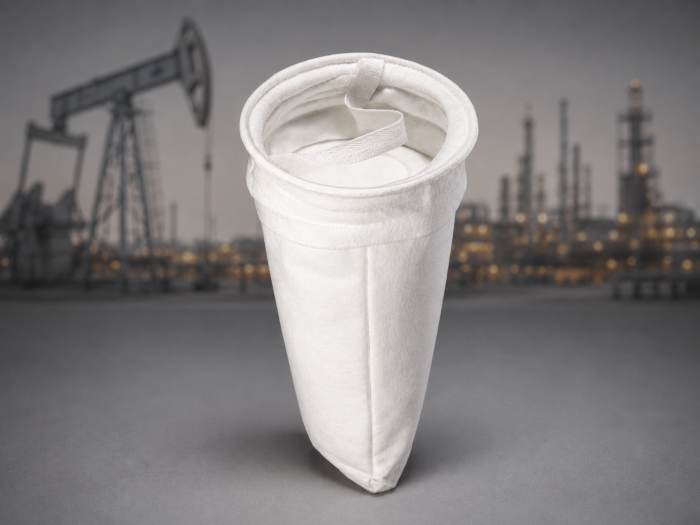

The Absorb-Rite® filter bag from The Strainrite Companies substantially reduces oil and grease from aqueous based liquids. The Absorb-Rite® bag offers a unique two-in-one design that forces the liquid through the entire length of the filter, therefore uniformly utilizing all the absorbent media.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings | 1, 5, 10, 25, 50, 75, 100, 200 |
| Flow Rate |
#2 Size = 5 gpm #1 Size = 2½ gpm Estimate flows depending upon ppm oil and viscosity |
Materials & Compliance
| Specification | Detail |
|---|---|
| Materials | Polypropylene felt |
| Finish | Singed |
| Ring Options | Polypropylene P-Flange, Polypropylene M-Flange, Carbon Steel Ring, Stainless Steel Ring, Polypropylene Ring, Polypropylene Z-Flange (fits size 25, 50 bags only) |
Product Overview
Typically, this unique filter absorbs 10-15 times its weight in oil. The Absorb-Rite® offers in excess of 50% more absorbency than competing brands.
Absorb-Rite® filter bags are available to fit all bag filter housings. Anywhere oil or grease must be separated and removed from an industrial stream, Absorb-Rite® bags are designed to fill the need. Best results at low flow rates to achieve longer contact time.
Features & Benefits
Unique three layer construction results in maximum exposure time at minimum flow rate
The top disc pre-filter material removes dirt and other particulate material prior to the adsorption of hydrocarbons
Designs available to remove particles in the 1-200 micron range
Higher hydrocarbon removal capacity than other filter bags on the market
Higher capacity than most other bags on the market
Standard bags fit SRID and SRHD filter vessels (fit competitor housings as well)
Designed to minimize contamination during changeover
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Glycols
Wastewater
Cutting Oil Removal
Electroplating
Pickling Liquids
Liquid Fertilizers
