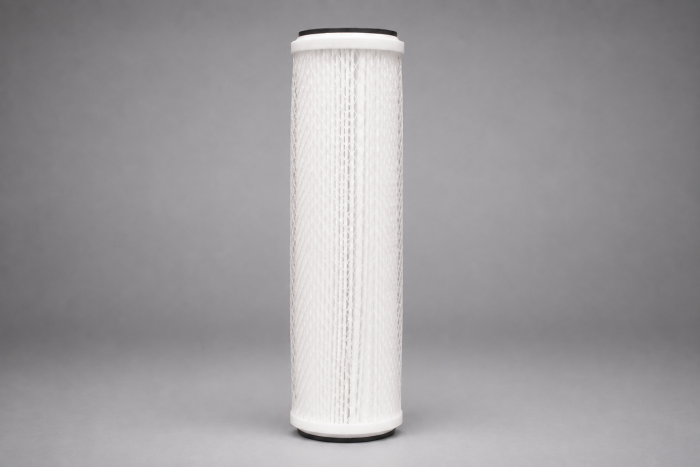

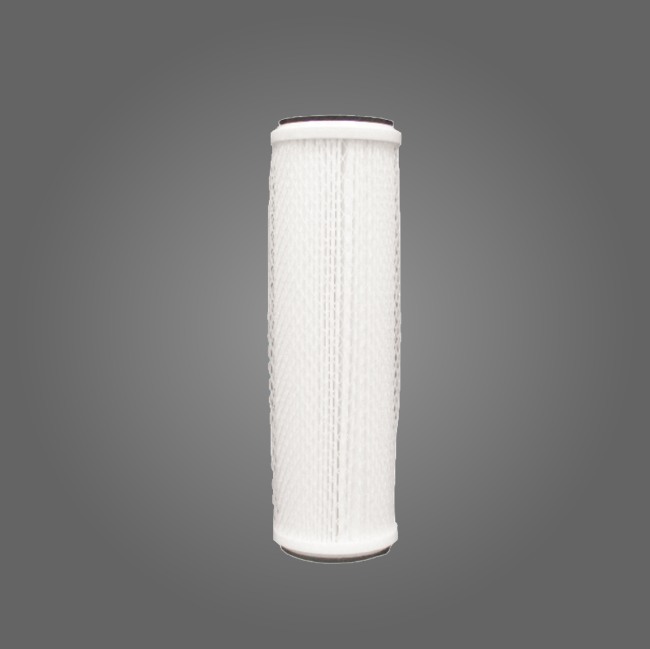

Continuous Microglass Pleat Value Series
Strainrite's Glass Pleat Value Series (GPVS) filter cartridges utilize a high surface area of small denier fibers to create more void volume in a highly uniform matrix, optimizing flow rate and service life without sacrificing particle efficiency. This revolutionary microfiber optimizes pore size geometry required to offer absolute rated filtration performance.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.2, 0.45, 1, 3, 5, 20 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 275°F (135°C) continuous duty |
| Efficiency |
GPVS0.2 — BETA1000 @ 0.8µm | BETA10 @ 0.25µm GPVS0.45 — BETA1000 @ 0.9µm | BETA10 @ 0.45µm GPVS0.65 — BETA1000 @ 1µm | BETA10 @ 0.65µm GPVS1 — BETA1000 @ 2µm | BETA10 @ 1µm GPVS5 — BETA1000 @ 10µm | BETA10 @ 5µm GPVS10 — BETA1000 @ 15µm | BETA10 @ 10µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass |
| End Caps | Polypropylene |
| Pleat Support Material | Polyester |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
Advanced Features
| Specification | Detail |
|---|---|
| Cage Design | Netting |
| Packaging Economy |
Single packaging available. Bulk packaging in case quantities to reduce material disposal: 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.55" (6.48 cm) |
| Approximate Surface Area | 4.5 square feet per 10" |
| Lengths | 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Our high efficiency media is non-calendared at the lower micron ratings resulting in significantly reduced resistance to flow or pressure drop when compared to similarly rated polypropylene microfiber technologies. These products are perfect for a wide range of applications where chemical compatibility is critical.
Features & Benefits
Recommended when chemical compatibility and temperature are critical factors
High efficiency media provides reliable, consistent and repeatable filtration results
High surface area pleat design for greater surface area ensures longer service life, fewer change outs and reduced operating costs per cartridge
Thermally bonded construction to ensure a cleaner filtrate

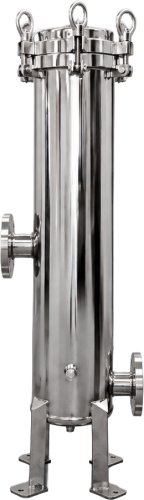

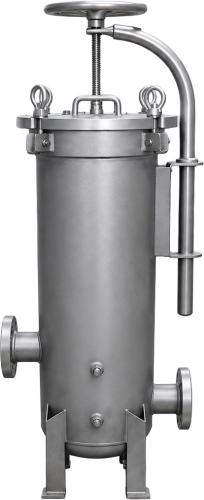

Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Solvent Filtration
DI/RO Prefiltration
General Water Filtration
General Chemical
Plating Solutions
Waste Water
Oil and Gas Production
