Poly-MAXX G / Pur-Pleat G Nominally Rated Polypropylene Depth Cartridges
Strainrite's nominally rated polypropylene depth cartridges are designed to reduce overall filtration costs when compared to spunbonded, stringwound, and nominally-rated pleated cartridges. This polypropylene media is designed and manufactured on state-of-the-art meltblowing equipment to Strainrite's strict specifications for high solids-loading requirements for a variety of prefiltration applications.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.25, 0.5, 1, 2.5, 5, 8, 12, 20, 30, 50 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Efficiency |
PPG0.25/PMXG0.25 — BETA5000 @ 0.25µm PPG0.5/PMXG0.5 — BETA5000 @ 0.5µm PPG1/PMXG1 — BETA5000 @ 1µm PPG2.5/PMXG2.5 — BETA5000 @ 2.5µm PPG5/PMXG5 — BETA5000 @ 5µm PPG8.0/PMXG8 — BETA5000 @ 8µm PPG12/PMXG12 — BETA5000 @ 12µm PPG20/PMXG20 — BETA5000 @ 20µm PPG30/PMXG30 — BETA5000 @ 30µm PPG50/PMXG50 — BETA5000 @ 50µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene microfiber |
| End Caps | Polypropylene |
| Pleat Support Material | Polypropylene |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | PPG: 2.55" (6.48 cm) | PMXG: 2.7" (6.87 cm) |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
These filters are constructed using the latest high-speed thermal bonding equipment in a clean environment to ensure superior product cleanliness and thermal and chemical compatibility. All of these depth cartridges are manufactured using 100% virgin polypropylene materials that comply with FDA Title 21 of The Code of Federal Regulations for food and beverage contact.
The Poly-MAXX G now offers a Special Pleat option in micron ratings of 0.25, 0.5, 1. This option provides expected surface area improvements of as much as 25%. This optimized pleat geometry option was developed for the filtration of process fluids that require a high degree of particle retention and/or constant bacterial barrier for effective sterilization.
Features & Benefits
Maximized pleat design for greater surface area, ensuring longer service life, fewer change outs and reduced operating costs
FDA Title 21 compliant for food and beverage contact

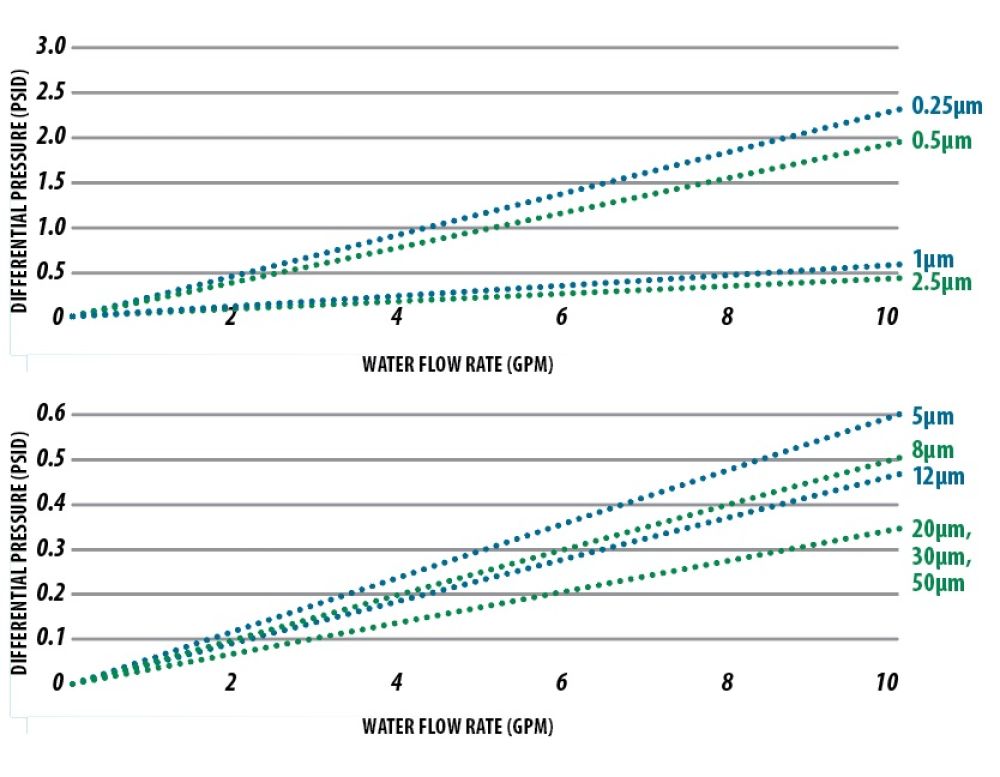

Lower pressure drops, which yield higher flow rates and reduced processing time
100% polypropylene construction offers a wide range of chemical compatibility
Thermally bonded construction ensures a cleaner filtrate
Special Pleat Option: Optimized pleat geometry
Special Pleat Option: Expected surface area improvements of as much as 25%
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Solvent Filtration
DI/RO Prefiltration
Wine Clarification
Water Filtration
Liquefied Sugar
Waste Water
