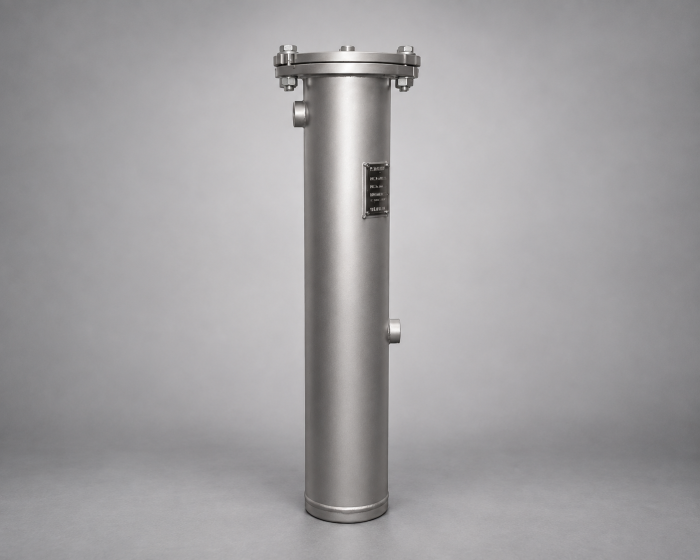

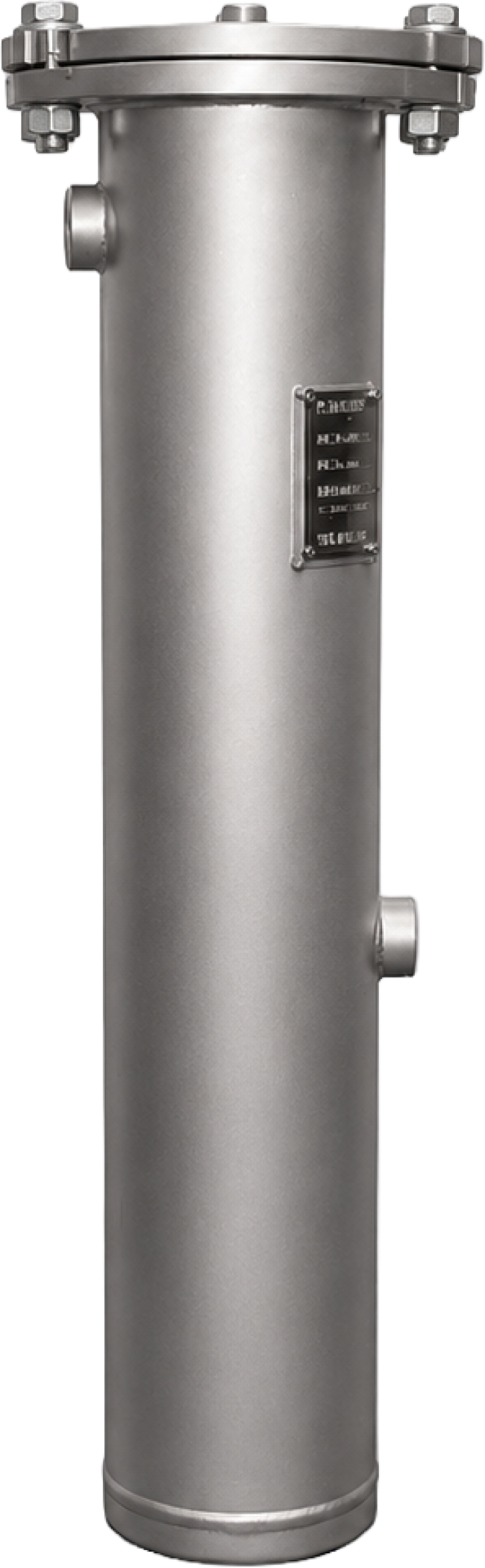

SRL Low Flow Bag/Element Vessel
The SRL Low Flow Vessel is versatile in its ability to function as a strainer or add a filter bag and convert it to a liquid filtration housing unit. The SRL series vessels come in two standard sizes, tailored to your throughput requirements. The SRL 1-25 is rated for 30 gpm, and the SRL 1-50 at 65 gpm. All sizes are available in three different closure designs for ease of cleaning/replacing and for easy removal without specific tools.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Material | Carbon Steel (A), 304 Stainless Steel (B), 316 Stainless Steel (C) |
Physical Specifications
| Specification | Detail |
|---|---|
| Bag Sizes Accepted | #3, #4, #25, #50 (metal ring or Z-flange only) |
| Inlet/Outlet Sizes |
1" NPT, 1" RFF, 1" Triclover 1.5" NPT, 1.5" RFF, 1.5" Triclover 2" NPT, 2" RFF, 2" Triclover |
| Closure Options | Band Clamp (100 psi), Swing Bolt (100–300 psi), Swing Away (100 psi) |
| Flow Rate | SRL 1-25: 30 gpm; SRL 1-50: 65 gpm |
Advanced Features
| Feature | Benefit |
|---|---|
| Filter Styles Accepted | Bag filter of indicated size; accepts ring collar only |
| Optional Features |
Sanitary design (SAN) Side outlet - side out/same side (SO) Electro polish finish (EP) Differential pressure gauge ports (GT) Mesh-lined basket (ML) Code stamped - swing bolt only (UM) |
Product Overview
Unfiltered liquid enters the housing above the bag or basket and flows through. Because solids are contained inside the bag or basket, removal is made easy when service is required. Basket strainers and bag filters are selected to comply with specific application requirements.
Features & Benefits
Inlet/outlet orientation: side-in bottom-out
Low pressure drop
Positive cover seal
Easily cleaned
Heavy duty perforated basket
Pipe sizes from 0.5" to 2" NPT, RFF or quick disconnect
0.25\" NPT vent tap
Optional inlet/outlet orientation: side-in side-out
Epoxy coating, electro-polish & fuse coating available
Higher pressure ratings available
Compression devices available
Custom designs available
Sanitary construction available
Mesh-lined basket for straining applications: 50 micron & higher
Band clamp, swing bolt & swing away closures available in both sizes
ASME code stamp available on swing bolt design
Accepts ring collar only
