AQ2

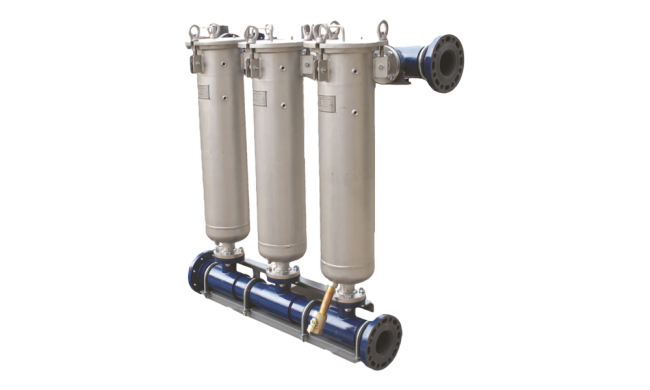

Strainrite's AquaRite Vessel was developed by our in-house engineering team for the expressed purpose of eliminating vessel-to-bag bypass, a critical element when high efficiency filtration is required. Strainrite's proprietary "Five Points of Seal" design has proven to be a major advance in filter vessel technology, performing admirably where the competition hasn't.
Technical Specifications
General Information
| Specification | Detail |
|---|---|
| Vessel | Strainrite AquaRite Vessel |
| Inlet/Outlet |
2 — 2" NPT 2F — 2" RFF |
| Options |
PE — AquaRite HPM Filter Bag Housing PE — AquaMAXX Element Housing |
| Inlet/Outlet Orientation | Side-in, bottom-out (standard) |
| Optional Features | Different outlet connections, flange connections, extra-length legs, pre-fab plex units |
Product Overview

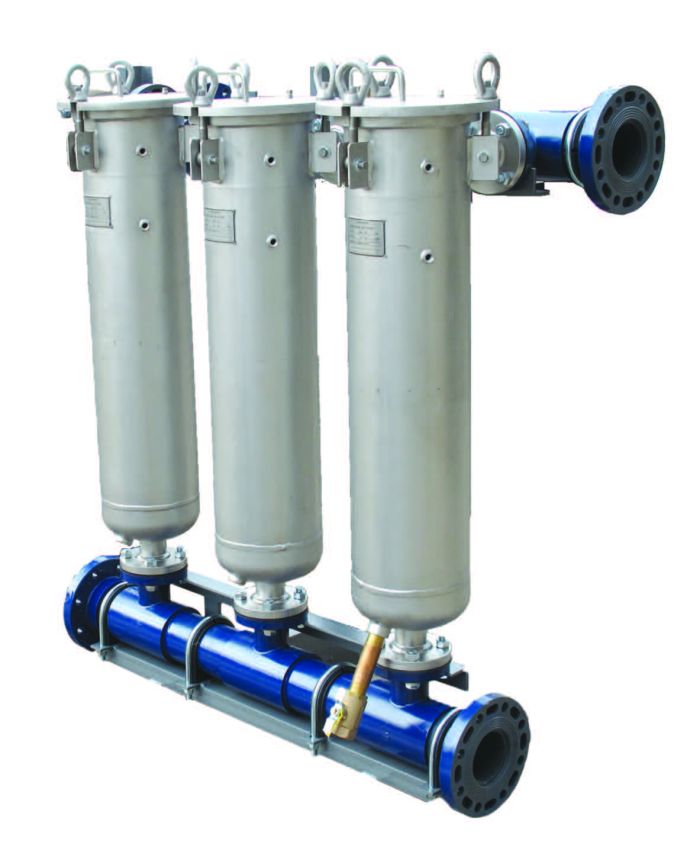

Featuring an effective seal on all three crucial planes of the bag, (the top, side, and bottom) as well as two additional o-rings that eliminate the likelihood of bypass along the vessel’s interior wall, the AquaRite is truly your best choice for potable water filtration performance.
The most efficient filter vessel deserves the most efficient filter! Using Strainrite’s acclaimed, FDA-Compliant Aqua-Rite Hi-Pro Micro Filter Bags ensure the purity, and now our Aqua-MAXX Pleated Elements ensure the purity of your end product.
Aqua-MAXX / Aqua-Rite Hi-Pro Micro
Aqua-Rite Vessels have been successfully used in potable water applications across the U.S. and Canada. AquaRite vessels are perfectly designed to hermetically seal AquaMAXX-PFA & AquaMAXX-FFA hybrid elements and Aqua-MAXX Hi-Pro Micro -HPM99-CC-2SR & -HPM99 -CCX-2SR bags.
Features & Benefits
Double o-ring basket seal, which eliminates bypass
Low pressure drop
Positive cover seal
Easily cleaned
Stainless steel wire mesh basket
Adjustable height legs
Built-in volume displacer in cover
Standard 150 psi design
304 Stainless Steel construction
Markets & Applications
Potable Water
