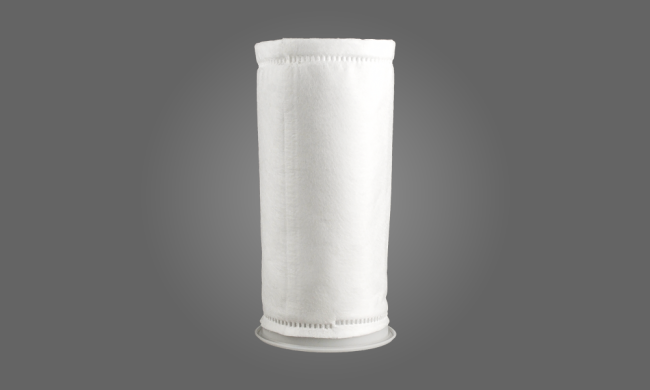

AA Needle Punch Felt
Added Area AA bags provide 65% more surface area and frequently provide a vastly disproportionate benefit – life advantages of 4-5 x have been reported (actual benefit for a given application must be assessed on a case-by-case basis).
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Material Options |
SP: Polypropylene felt AP: Polyester felt POXL: Extended life polypropylene PEXL: Extended life polyester BRB: Resin-bonded polyester felt |
| Finish | S: Singed, P: Plain |
| Ring Options |
P: Polypropylene P-flange M: Polypropylene M-flange PER: Polyester P-flange MER: Polyester M-flange S: Carbon steel ring SS: Stainless steel ring |
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Ratings (AP) | 1T, 1, 5, 10, 25, 50, 75, 100, 200 |
| Micron Ratings (SP) | 1T, 1, 5, 10, 25, 50, 75, 100, 200 |
| Micron Ratings (POXL) | 1, 5, 10, 25, 50, 75, 100 |
| Micron Ratings (PEXL) | 1, 5, 10, 25, 50, 75, 100 |
| Micron Ratings (BRB) | 1T, 1, 5, 10, 25, 50, 75, 100, 200 |
Physical Specifications
| Specification | Detail |
|---|---|
| Size 1 Diameter | 7.000 inches |
| Size 1-AA Length | 30.5 inches |
| Size 1-AA Total Area | 4.03 square feet |
| Size 2 Diameter | 7.000 inches |
| Size 2-AA Length | 30.5 inches |
| Size 2-AA Total Area | 7.69 square feet |
| Standard Size 1 Total Area | 2.44 square feet |
| Standard Size 2 Total Area | 4.66 square feet |
| Available Sizes | 1: 7" x 16", 2: 7" x 32" |
Product Overview
The Strainrite Companies offer the widest range of needle punch felt filters in the market. We have formed long term strategic partnerships with North America's largest and most respected needle punch manufacturers.
All of our fabrics are manufactured on state-of-the art high speed needling equipment that continuously monitor key specifications in real time resulting in the most uniform and consistent fabric across the entire web in our industry. By combining our technically advanced converting process with industry's most reliable media The Strainrite Companies offers The AA, a felt filter bag that leads in product quality, reliability and repeatability.
Features & Benefits
65% more surface area than your standard size 2 bag filter
Up to 50% more flow than your standard size 2 bag filter
Lower total costs due to higher solids loading capabilities
Reduced labor costs from fewer change-outs
Smaller housing foot-print in new application
Lower hold-up volume (67% less)
Bags are fully welded, available in both 100% polypropylene and 100% polyester construction

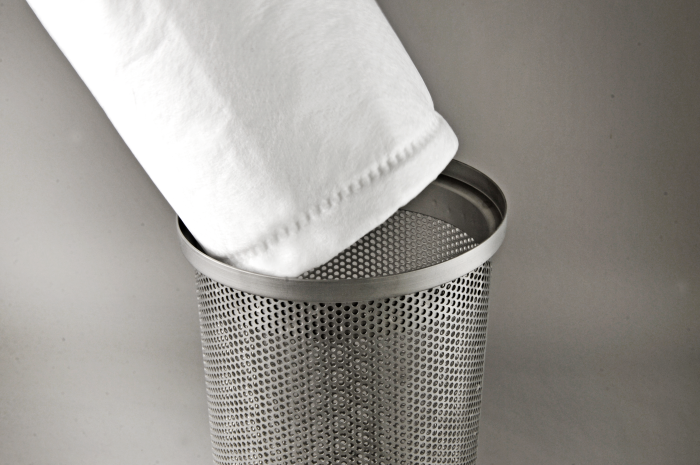

Drop-in replacement for DuoFlo™ and Hayflow™ (no basket change required)
Utilizes both Strainrite P-flange (Polyloc™) and M-Flange (Sentinel™)
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Inks, Paints & Coatings
Edible Oils
Process Water
Wastewater
Food & Beverage Industry
