Clari-MAXX Multi-Layer Polypropylene Microfiber Hybrid Elements
Strainrite continues its tradition of state-of-the-art advanced filtration innovation with the Clari-MAXX, a unique polypropylene depth filter that utilizes long strand small and large diameter fibers to provide a high solids loading, absolute-rated, pleated depth filter. This binder-free depth media is excellent for removing gels and offers five times the surface area compared with industry standard non-pleated depth filters. The increased surface area provides higher flow rates at reduced pressure, and results in increased filter life.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating | 1.5, 3, 4.5, 10, 20, 30, 70 |
| Recommended Change-Out | 35 psid |
| Maximum Differential Pressure | 25 PSID @ 70°F (21°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Multi-layer polypropylene microfiber |
| End Caps | Polypropylene |
| Support Material | Polypropylene |
| Molded Cage | Polypropylene |
| O-Rings | Buna N, Fluorocarbon, EPDM, Silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 6" (15.2 cm) |
| Nominal Surface Area | P1 - 12 square feet | P2 - 23 square feet | P3 - 26 square feet | P4 - 48 square feet |
| Nominal Lengths | P1 - 14" (35.7 cm) | P2 - 26" (66.3 cm) | P3 - 30" (76.5 cm) | P4 - 40" (102 cm) |
Product Overview
Our 100% polypropylene construction provides an excellent range of chemical compatibility for your most demanding applications. All polypropylene construction materials are CFR 21 listed for direct food contact, which makes this filter ideal for a broad range of applications.
Features & Benefits
Exquisitely controlled, state of the art media provides reliable, consistent and repeatable filtration
Faster change-outs compared to standard high performance cartridges
Contaminants are captured inside the element, eliminating downstream contamination
Thermally bonded end caps
Direct replacement for Pall Marksman™
Lower pressure drops yield higher flow rates and reduced processing time
Maximum pleat design for greater surface that ensures longer service life, less downtime, and reduced operating costs per element
Single O-ring seal ensures a hermetic seal for high purity applications
100% polypropylene, FDA compliant with CFR 21
Custom length options to accommodate existing baskets

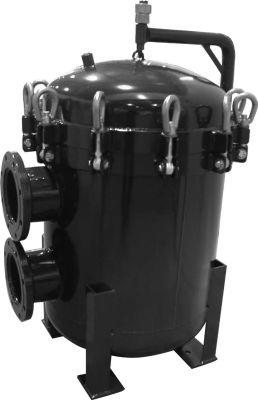

Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Coatings
Chemicals
Electronics
Food and Beverage
Ink and Paint
Potable Water
