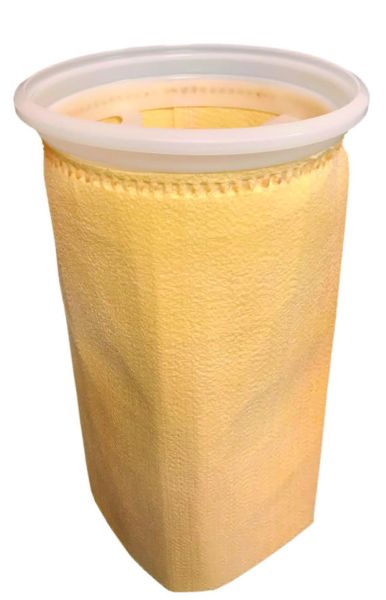

BRB Resinator Resin Bonded Felt Filter Bags

Once again, The Strainrite Companies delivers true filtration innovation by combining only the positive qualities of resin-bonded cartridges with the proven advantages of a Strainrite premium quality filter bag.

Download Spec Sheet (PDF)

BRB Resinator Resin Bonded Felt Filter Bags

Technical Specifications

Materials & Compliance

Specification	Detail
Material	Resin-bonded polyester felt
Ring Options	P – Polypropylene P-flange M – Polypropylene M-flange PER – Polyester P-flange MER – Polyester M-flange SHS – Carbon steel ring w/ handle strap SSHS – Stainless steel ring w/ handle strap PRHS – Polypropylene ring w/ handle strap
Finish	P – Plain

Advanced Features

Specification	Detail
Configuration Options	SL – Single layer standard bag Double layer standard bag (no code)

Physical Specifications

Specification	Detail
Micron Ratings	1T, 1, 5, 10, 25, 50, 75, 100, 200
Sizes	Size 1: 7" x 16" Size 2: 7" x 30.5"
Maximum Operating Temperature	180°F (80°C) with polypropylene hardware 250°F (121°C) with polyester hardware or metal ring

Product Overview

Resinator users gain the non-compressible media depth of a resin filter, along with the greatly enhanced solids loading capacity and cost saving features of a Strainrite gradient-density filter bag. This product excels in a wide variety of high viscosity fluid filtration applications where authoritative removal of problematic gels is required.

These "hard body" filter bags represent a significant advancement in the utilization of rigid fiber technology and illustrate the leadership role The Strainrite Companies plays in supplying vision and technical leadership when designing and manufacturing liquid filter bags.

This graduated double layer product design combines the depth loading efficiency of resin bonded cartridges with the greater dirt loading capacity of a filter bag creating the most cost effective method for filtering both low and high viscosity fluids.
