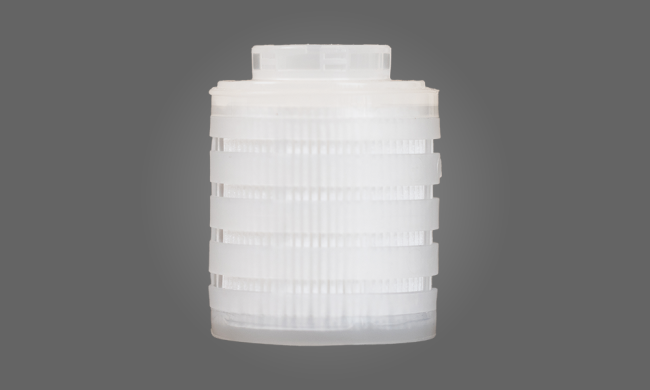

Brevi-MAXX

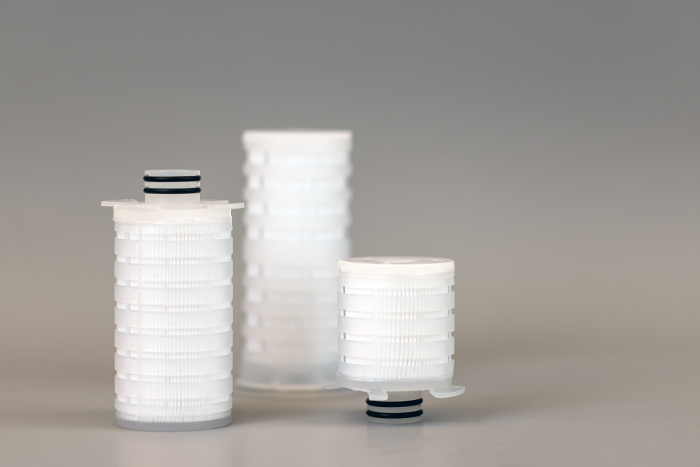

Strainrite's Brevi-MAXX series of pleated filter cartridges offer a compact-size cartridge filter for smaller applications. Nearly all of our standard cartridge filter media, including membranes (PES polyethersulfone membrane, charged nylon, PTFE membrane and more) and pre-filtration materials (including polypropylene and glass fiber) can be placed into this 2.25" diameter configuration. This is an ideal format for smaller batches, lower flow rates, and smaller footprint compared to other traditional cartridges.

Download Spec Sheet (PDF)

Technical Specifications

Filtration Performance

Specification	Detail
Maximum Differential Pressure	Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C)
Maximum Operating Temperature	180°F (82°C) continuous duty polypropylene; 275°F (135°C) continuous duty polyester

Materials & Compliance

Specification	Detail
Filter Media	See filter media/micron rating chart (polyethersulfone, polysulfone, nylon 6,6, charged nylon, PTFE, polypropylene, microglass)
End Caps / Cage / Core	Polypropylene
Pleat Support Material	Polypropylene
End Cap Insert	Polypropylene
Seals	Buna N, Fluorocarbon, EPDM, Silicone
Construction Method	Thermal bond
Toxicity	Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact

Advanced Features

Specification	Detail
Sterilization	Cartridge can be sterilized via steam or autoclave: 20 times at 275°F (135°C). Cartridge may be sanitized in place with common sanitizing agents; contact factory for chemical compatibility.
Packaging Economy	Bulk packaging in case quantities to reduce material disposal: A (2 inch - 6 per carton) \| B (4 inch - 6 per carton)

Physical Specifications

Specification	Detail
Outside Diameter	2.25 inch (57 mm)
Nominal Lengths	A = 2 inch (5.1 cm), B = 4 inch (10.2 cm)
Approximate Surface Area	2" (A) - BRE, BRS, BRN, BRCN, BRT = 1.28 sq.ft. (.119 sq.m) 2" (A) - BRE-SG (sterilizing grade) = 1.02 sq.ft. (.095 sq.m) 2" (A) - BRVM, BRVR = 1.28 sq.ft. (.199 sq.m) 2" (A) - BRPA, BRPG = 1.05 sq.ft. (.098 sq.m) 2" (A) - BRGA, BRGG = 0.78 sq.ft. (.073 sq.m) 4" (B) - BRE, BRS, BRN, BRCN, BRT = 2.32 sq.ft. (.216 sq.m) 4" (B) - BRE-SG (sterilizing grade) = 1.86 sq.ft. (.173 sq.m) 4" (B) - BRVM, BRVR = 2.32 sq.ft. (.216 sq.m) 4" (B) - BRPA, BRPG = 1.91 sq.ft. (.177 sq.m) 4" (B) - BRGA, BRGG = 1.42 sq.ft. (.132 sq.m)

Product Overview

The smaller size of the Brevi-MAXX helps to reduce hold up and increase yield of valuable products compared to larger sized filters. Pilot plant trials easily scale up from this size to other formats. Utility applications where "drops" are made to various points-of-use might use a Brevi-MAXX filter at each POU. This is also a nice compact size for OEM equipment. Depending on the specifics of the application, this size filter might typically be used for liquid flow rates <2 lpm, compressed air flow rates of <25 SCFM or for tank venting at flow rates of <10 CFM. These filters also retrofit many competitors' smaller housings.
