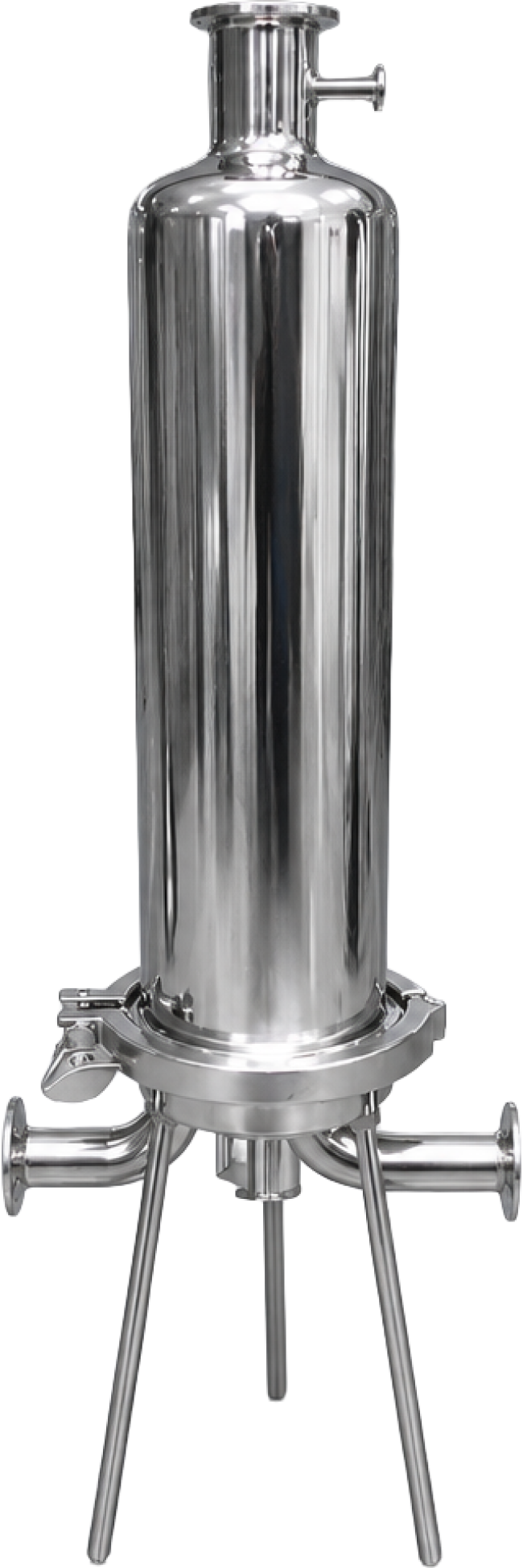

SRCT / SRVT

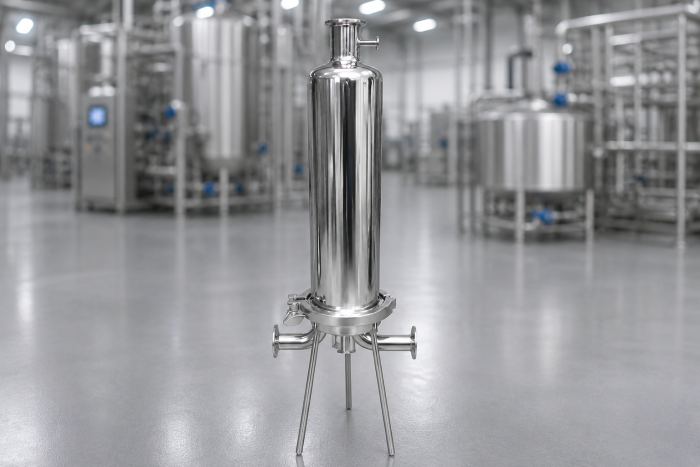

The SRCT and SRVT sanitary cartridge vessels offer the aesthetics and operational durability of stainless steel at affordable prices. The SRCT's innovative design ensures optimal cleanability in critical areas and can accommodate either 10", 20" or 30" cartridges in a single cartridge housing and 20", 30" or 40" filter cartridges in a multi-cartridge vessel.
Technical Specifications
Materials & Compliance
| Specification | Detail |
|---|---|
| Construction Materials | 316L Stainless Steel |
Advanced Features
| Specification | Detail |
|---|---|
| Sterilization | In-line steam, autoclave, or hot water |
| Finish | Electropolished (SRCT) |
| End-Cap Options | C6: Flat/226; C7: Fin/226 |
| Inlet/Outlet — SRCT | 1TC: 1" Tri-Clover (1-cartridge housing only); 2TC: 2" Tri-Clover; 3TC: 2" Tri-Clover (not available with 1-cartridge housing) |
| Inlet/Outlet — SRVT | 1TC: 1" Tri-Clover (1-cartridge housing only); 1.5TC: 1.5" Tri-Clover (3,5,7-cartridge housing only); 2TC: 2" Tri-Clover (12-cartridge housing only) |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Pressure — SRCT Single | 145 psi (67°F) |
| Maximum Differential Pressure — SRCT Multi | 25 PSID |
| Maximum Operating Pressure — SRVT | 100 psi (200°F) |
| Cartridge Count — SRCT | 1, 3, 5, 8, 12, 18, 24, 30 round cartridges |
| Cartridge Count — SRVT | 1, 3, 5, 7, 12 round cartridges |
| Element Length — SRCT | 10", 20", 30", 40" (40" multi-cartridge only) |
| Element Length — SRVT | 10" (1-cartridge housing only), 20" (1-cartridge housing only), 30" |
Product Overview
SRCT filters are designed specifically for liquid filtration in the food and beverage industry, offering microbiological safety, corrosion resistance and durability.
SRVT filters offer the same innovative design with a 100 PSI maximum operating pressure at 200°F.
Features & Benefits
SRCT single cartridge::
Maximum operating pressure 145 psi (67°F), electropolished finish ensures optimal cleanability in critical areas, stainless steel legs, sterilization using in-line steam, autoclave or hot water, fitted for code 7 filter cartridge,
SRCT multi-cartridge::
Maximum differential pressure 25 PSID, filter cartridge life 0–25 PSID, electropolished finish ensures optimal cleanability in critical areas, stainless steel legs, sterilization using in-line steam, autoclave or hot water, fitted for code 7 and code 6 filter cartridges,
SRVT single & multi-cartridge::
Maximum operating pressure 100 psi (200°F), 316 stainless steel, removable cartridge plates for cleaning, bleeder valve vents and drains, silicone gaskets, holds 226/Fin (C7) cartridges.
Markets & Applications
Food & Beverage
