High-Purity Liquid Filtration for Microelectronics & Semiconductor Manufacturing

Strainrite engineers purpose-built membrane cartridges, depth filters, filter bags, and high-purity vessels for the most demanding wet process, UPW, chemical distribution, and plating applications in semiconductor, HDD, and advanced packaging fabrication.

The global semiconductor liquid filtration market is valued at approximately USD 448–530 million and is projected to reach USD 824 million to USD 1.24 billion at a CAGR of 9.5–9.8%. Driven by the CHIPS Act’s $52.7 billion in federal investment, AI/HPC chip demand pushing 300mm fab equipment spending past $150 billion, and the relentless advance to 3nm and 2nm process nodes, every wet process step—from ultrapure water (UPW) polishing and chemical distribution to CMP slurry management and ECD copper plating—demands filtration capable of removing particles at the nanometer scale. A single particle on a wafer can cause the failure of multiple integrated circuits, and for a typical 300mm fab producing 40,000 wafers per month, a 10% yield improvement translates to approximately $50–80 million in additional annual revenue. Strainrite’s microelectronics-grade filtration products—including the PES-E membrane cartridge developed specifically for the semiconductor industry—deliver the particle retention, ultra-low extractables, and broad chemical compatibility that advanced fabrication requires.

Key Filtration Stages in Microelectronics & Semiconductor Manufacturing

Microelectronics fabrication—spanning semiconductor wafer processing, HDD media manufacturing, and advanced packaging—requires filtration at every wet process stage. From incoming ultrapure water generation through final point-of-use chemical delivery, each step demands particle removal ratings from 0.02 to 40 microns, ultra-low metallic extractables at parts-per-trillion levels, and validated bacterial barrier integrity. Strainrite’s microelectronics product line addresses the full process flow.

01

UPW Generation & Distribution Filtration

Ultrapure water is the lifeblood of semiconductor manufacturing—a typical 300mm fab consumes 2–4 million gallons per day. UPW must meet SEMI F63 specifications: resistivity >18.2 MΩ·cm at 25°C, TOC <1 ppb, and particles >0.1µm at <1/mL measured at the point of use. A TOC excursion can cost $125,000 per hour in production losses. Strainrite’s Mem-Pleat E / Pur-MAXX E (PES) and Mem-Pleat S / Pur-MAXX S (polysulfone) membrane cartridges provide absolute-rated retention from 0.03 to 1.2µm for RO prefiltration, DI polishing, and final POU delivery. The PES-E cartridge—purpose-built for microelectronics—is 18 megohm DI flushed with Strainrite’s double rinse process to ensure extremely low extractables. Pur-Pleat / Poly-MAXX absolute-rated polypropylene depth cartridges protect upstream RO membranes from particulate fouling.

02

Wet Etch, Clean & Chemical Distribution Filtration

Front-end and back-end wet processes—including single-wafer etch and clean, batch wet etch, and pre-sputter cleaning—use aggressive acids (HF, H₂SO₄, HCl), bases (NH₄OH), and oxidizers at elevated temperatures. Chemical distribution systems must deliver these chemistries to production tools with ionic metal levels below 0.1 ppb and zero particle adders. Metallic contamination from iron, copper, and nickel creates deep-level traps in silicon that degrade device performance. Strainrite’s Mem-Pleat T / Pur-MAXX T (PTFE) membrane cartridges provide 0.1–0.2µm absolute-rated filtration with broad chemical resistance for hot DI water, photoresists, and electronic-grade solvents. Mem-Pleat CN / Pur-MAXX CN (charged nylon) cartridges use electrostatic adsorption to remove negatively charged contaminants—including colloidal silica—smaller than the membrane’s rated pore size, providing dual-mechanism retention critical for high-purity chemical delivery.

03

ECD Copper Plating & CMP Slurry Filtration

Electrochemical deposition (ECD) copper plating—the primary method for filling interconnect trenches and vias—requires continuous inline filtration of recirculated plating electrolyte to prevent voids and inclusions in copper fill. CMP slurry filtration must selectively remove oversized particles and agglomerates without disrupting the abrasive nanoparticle distribution essential for polishing action. Both processes demand filters with ultra-low extractables to avoid contaminating process chemistry. Strainrite’s PES-E cartridges (50–1200nm absolute retention) deliver the particle removal efficiency and chemical compatibility required for high-flow recirculated ECD plating baths and low-flow single-wafer plating applications. SPMF high-efficiency filter bags (1–25µm absolute, all-polypropylene construction) and Accu-Rite ultra-efficient bags provide cost-effective prefiltration for CMP slurry systems and bulk chemical handling.

04

HDD Media Manufacturing & Disk Lubrication Filtration

Hard disk drive media manufacturing demands filtration performance equivalent to semiconductor wafer fabs. Pre-sputter etch and clean processes use DI water and dilute acids to prepare aluminum disk surfaces for nickel plating—requiring particle-free substrates before zinc application. Disk lubrication applies solvent-based lubes with low surface tension to prevent stictional damage between head slider and media while protecting magnetic layers from corrosion. With HDD fly heights at less than 10 nanometers, even a single nanometer-scale particle can cause catastrophic head-disk interference. The global HDD market is projected to grow at a 6.12% CAGR, with 61% of demand driven by hyperscale data centers. Strainrite’s PES-E and Mem-Pleat T / Pur-MAXX T cartridges filter solvents, DI water, and process chemicals to the purity levels these applications demand, while Mem-Pleat N / Pur-MAXX N (nylon 6,6) cartridges handle reagent-grade chemicals without additives, resins, or surfactants.

Engineered for Ultra-Low Extractables and Nanometer-Scale Particle Control

Engineered for Ultra-Low Extractables and Nanometer-Scale Particle Control

Microelectronics fabrication environments demand filtration equipment that contributes zero contamination to the process stream. At advanced nodes (3nm and below), critical particle sizes approach 10–15 nanometers—below the detection limit of conventional liquid particle counters. Strainrite’s microelectronics-grade products are manufactured with materials that meet USP Class VI biological reactivity requirements for ultra-low extractables and volatiles. The PES-E cartridge utilizes Strainrite’s proprietary double rinse process and is 18 megohm DI flushed, ensuring that the filter itself does not introduce ionic, organic, or particulate contamination to ultrapure process fluids. All membrane cartridges are 100% integrity tested and available in Electronics (E) grade with multiple seal options including FEP-encapsulated fluorocarbon and PTFE for compatibility with aggressive wet-process chemistries. SRC industrial-duty and SRCT sanitary cartridge vessels provide the high-purity housing options required for cleanroom integration.

Quality & Regulatory Compliance for Microelectronics Filtration

Semiconductor and microelectronics manufacturers operate within the most stringent contamination control framework in any industry. Filtration products must meet multiple overlapping standards—from SEMI specifications governing UPW purity and chemical distribution component cleanliness to ISO cleanroom classifications and USP biocompatibility requirements. Strainrite’s manufacturing and quality systems are designed to meet these demands with full traceability, validated processes, and documented compliance.

ISO 9001:2015 Certified Manufacturing & SEMI Standards Compliance

Strainrite’s manufacturing facilities are ISO 9001:2015 certified with documented quality management systems covering incoming material inspection, in-process controls, and final product testing. Products are manufactured to support compliance with critical SEMI standards including SEMI F63 (UPW specifications: >18.2 MΩ·cm resistivity, TOC <1 ppb, particles <1/mL at POU), SEMI F57 (polymer component purity for UPW and chemical distribution systems), and SEMI F40 (preparation protocols for chemical testing of distribution components). The PES-E cartridge line is specifically designed for the semiconductor industry with Electronics (E) grade construction and 18 megohm DI flush as standard.

USP Class VI Compliance & Extractables Control

Strainrite’s PES-E membrane cartridges meet USP Biological Reactivity Test, In Vivo for Class VI–121°C plastics—the most stringent biocompatibility classification, requiring passing systemic toxicity, intracutaneous reactivity, and implantation testing. This ensures ultra-low extractables and volatiles critical for filters contacting process chemicals, UPW, and photoresist in semiconductor manufacturing. All PES-E cartridges undergo Strainrite’s double rinse process and are flushed with 18 megohm DI water to minimize ionic, organic, and particulate extractables. Products are CFR 21 food/beverage compliant and sterilizable via steam/autoclave (20 cycles at 275°F / 135°C) for applications requiring validated sterilization-in-place.

Strainrite Filtration Solutions for Microelectronics & Semiconductor

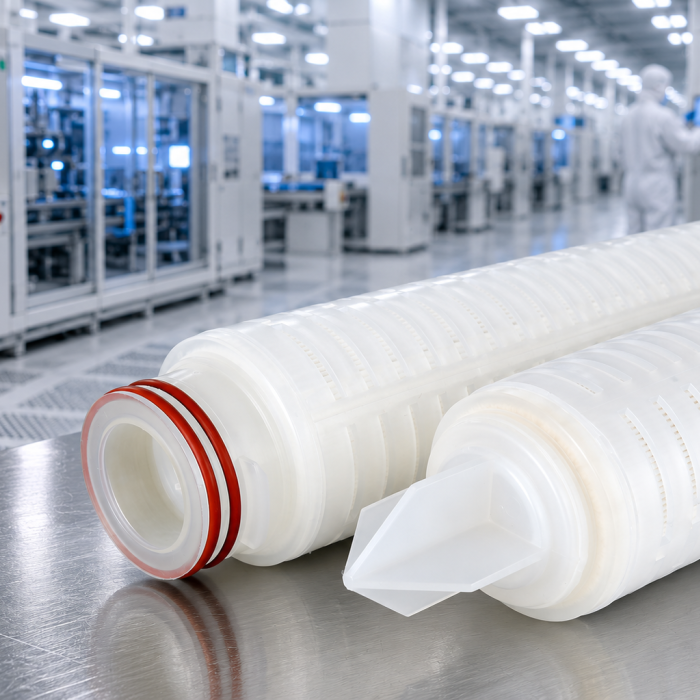

PES-E Polyethersulfone Membrane Cartridges

Purpose-built for microelectronics; 50–1200nm absolute retention; hydrophilic asymmetric PES membrane; 18 megohm DI flushed; double rinse process; USP Class VI; 100% integrity tested; Electronics (E) grade; broad chemical compatibility for UPW, high-purity chemicals, and DI water systems.

Mem-Pleat S & Pur-MAXX S Polysulfone Membrane Cartridges

0.03–0.65µm absolute retention; high-purity aqueous chemical filtration; DI water point-of-use and pre/post filter applications; available with DI flush option.

Mem-Pleat T & Pur-MAXX T PTFE Membrane Cartridges

0.1–0.2µm absolute retention; hot deionized water, photoresists, and electronic-grade solvents; full fluoropolymer chemical resistance for aggressive wet etch and clean processes.

Mem-Pleat E & Pur-MAXX E Polyethersulfone Membrane Cartridges

0.04–1.2µm absolute retention; deionized water systems and general high-purity water filtration; low extractables and integrity tested.

Mem-Pleat CN & Pur-MAXX CN Charged Nylon Membrane Cartridges

0.04–1.2µm retention with positive zeta potential for electrostatic removal of silica colloids, fine particles, and negatively charged contaminants below rated pore size; reagent-grade chemical filtration.

Mem-Pleat N & Pur-MAXX N Nylon 6,6 Membrane Cartridges

0.1–1.2µm absolute retention; fine chemicals and reagent-grade chemicals; no additives, resins, or surfactants.

Pur-Pleat & Poly-MAXX Absolute-Rated Polypropylene Depth Cartridges

1–70µm; RO/DI prefiltration; USP Class VI; all-polypropylene construction for chemical compatibility.

SPMF High-Efficiency Filter Bags

1–25µm absolute; all-polypropylene; FDA/EC listed; bulk chemical handling and plating bath prefiltration.

SPMF High-Efficiency Filter Bags

1–25µm absolute; all-polypropylene; FDA/EC listed; bulk chemical handling and plating bath prefiltration.

Accurite Ultra-Efficient Filter Bags

1.5–25µm absolute; polypropylene support; microelectronics and high-purity process applications.

SRC Industrial-Duty Cartridge Vessels

High-purity vessel option for Clarity and membrane cartridge housings.

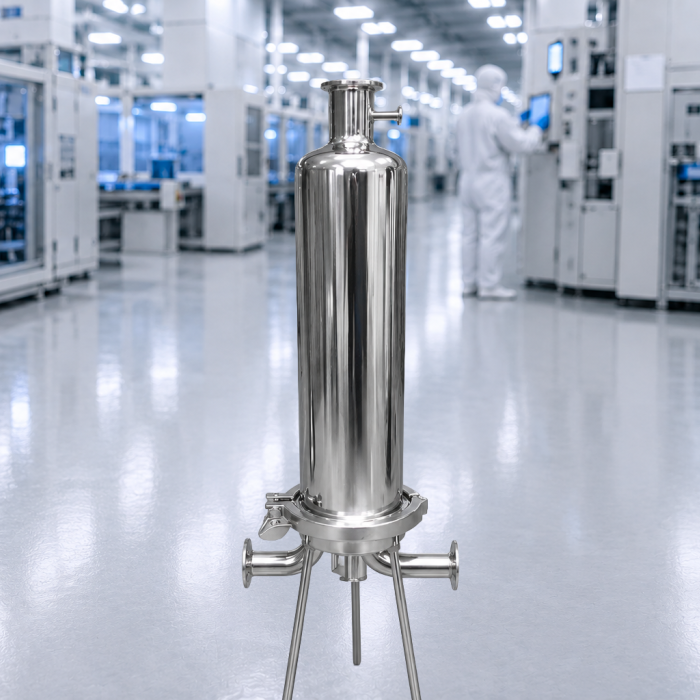

SRCT Sanitary Cartridge Vessels — Sanitary

grade vessels for pharmaceutical and semiconductor-grade cartridge applications.

Technical Resources for Microelectronics Filtration

Downloadable PDF

Microelectronics & Semiconductor Filtration Selection Guide — Recommended filter media, micron ratings, and cartridge/bag configurations for UPW, chemical distribution, wet etch, CMP, ECD plating, and HDD manufacturing applications.

Downloadable PDF

Microelectronics-Grade Membrane Cartridge Data Sheet — Complete specifications including retention ratings, chemical compatibility, extractables data, DI flush protocols, and ordering information for Strainrite’s purpose-built semiconductor filtration cartridge.
