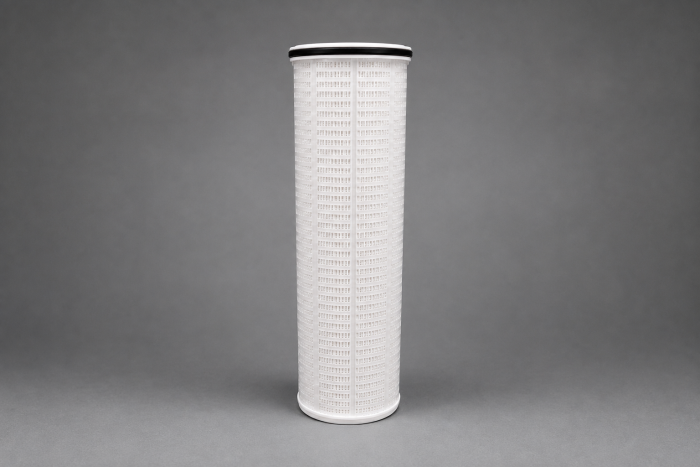

MAXX-Flow 6.75 inch OD Housing Polypropylene or Microglass Hybrid Elements
MAXX-Flow filters are engineered for critical high purity applications by optimizing throughput while maintaining absolute rated performance that is both predictable and repeatable. Our polypropylene filter media is constructed on the latest continuous microfiber blowing equipment, which accurately controls fiber diameter and web design.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating |
MF: 2, 4.5, 6, 10, 20, 40, 70, 90 GF: 2, 6, 10, 20, 30 |
| Maximum Differential Pressure | 35 PSID @ 70°F (21°C) |
| Maximum Flow Rates | 20" - 175 gpm | 40" - 350 gpm | 60" - 500 gpm |
| Recommended Change-Out | 25 psid |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass, polypropylene microfiber |
| End Caps | Polypropylene, polyester |
| Support Material | Polypropylene, polyester |
| Molded Cage | Polypropylene, polyester |
| O-Rings | Buna N, fluorocarbon, EPDM, silicone, FEP encapsulated silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Nominal Top Outside Diameter | 6.75" (17.1 cm) |
| Lengths | 20" (50.8 cm) | 40" (101.6 cm) | P1 - 12" (30.5 cm) | P2 - 26" (66.3 cm) |
Product Overview
This state-of-the-art equipment utilizes online monitoring equipment, delivering the industry's most uniform and consistent media, resulting in unparalleled product consistency. Our microglass filter elements feature a media structure with high surface area and increased void volume, as well as optimized pore size geometry.
Precision blowing of fine denier fibers results in a highly uniform matrix that optimizes element flow rate and service life. This advanced fine fiber technology outperforms all competing microfiber technologies.
This hybrid filter easily works with most standard 6.75" outside diameter housing.
Features & Benefits
Large diameter pleat configuration for high flow rates
High dirt holding capability due to extensive surface area
99% rated filter media for consistent and repeatable performance
Thermally bonded construction
Capable of flow rates up to 500 GPM per filter
Injection molded cage for superior strength and element integrity
Inside-out filter retains all contaminants inside the filter during changeouts
