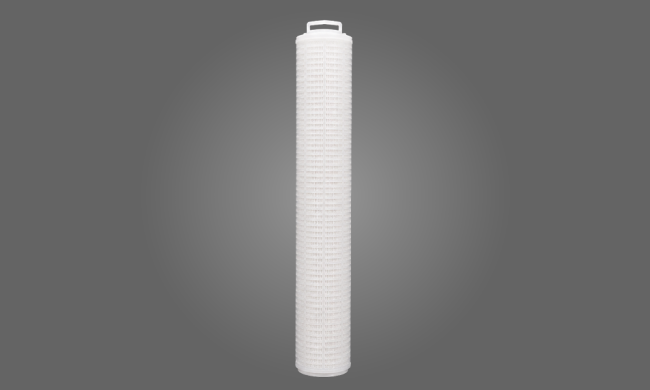

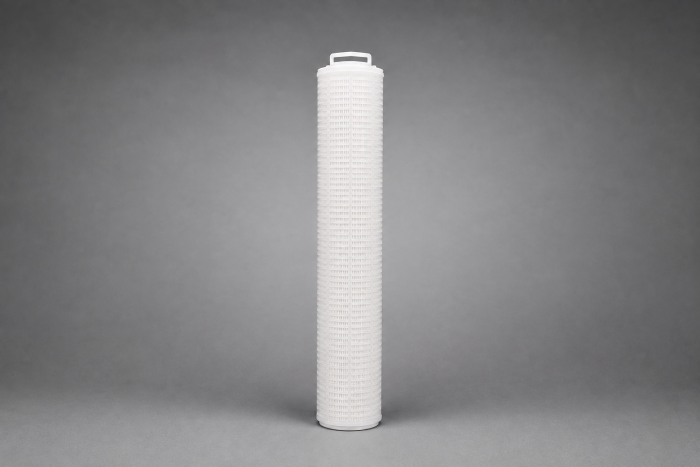

MAXX-Pro 6.5 inch OD Housing Outside-In Flow Polypropylene with 226 O-Rings
The Strainrite Companies is proud to add the MAXX-Pro to our family of large pleat geometry products. The MAXX-Pro filters are high efficiency, outside to inside flow direction liquid filtration cartridges designed for applications with high contaminant removal requirements. These filters are a direct replacement for the 3M 740™ series and others.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Micron Rating | 1, 2, 5, 10, 15, 25, 40, 70 |

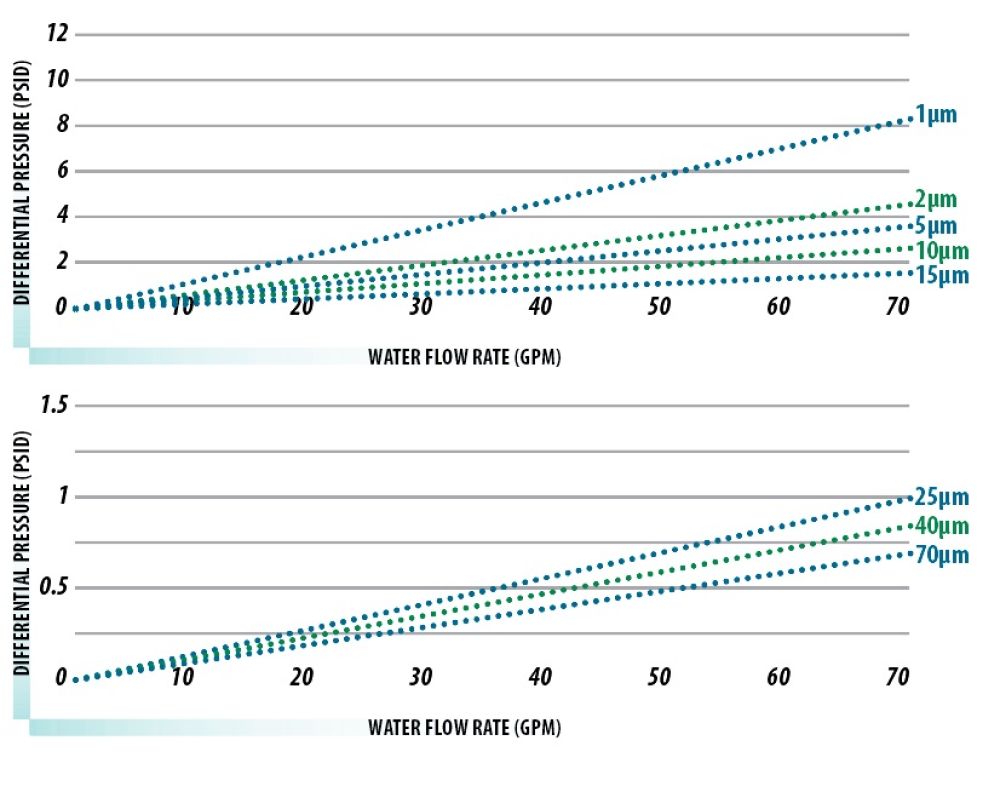

| Maximum Flow Rates | 40" - 60-80 gpm |
| Recommended Change-Out | 35 psid |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene microfiber |
| End Caps | Polypropylene |
| Support Material | Polypropylene, polyester |
| Molded Cage | Polypropylene |
| O-Rings | Buna N, fluorocarbon, EPDM, silicone, FEP encapsulated silicone |
| Construction Method | Thermal bond |
Physical Specifications
| Specification | Detail |
|---|---|
| Nominal Top Outside Diameter | 6.5" (16.5 cm) |
| Lengths | 40" (101.6 cm) | 60" (152.4 cm; consult factory for availability) |
Advanced Features
| Specification | Detail |
|---|---|
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
Product Overview
MAXX-Pro cartridges are for use in filter housings that accept 6.5" (165 mm) outside diameter filter cartridges with 226 O-ring connections. The large diameter, ultra high surface area pleated cartridges are designed to provide the optimum combination of particle removal efficiency and contaminant holding capability with comparatively low flow resistance. Microfiber forms the basis of the filtration media utilized in MAXX-Pro filter cartridges.
Strainrite's manufacturing processes allow for tightly controlled specifications resulting in a filter media with consistent and predictable particle retention characteristics. MAXX-Pro cartridges are offered in micron grades ranging from 1 μm to 70 μm, and are typically used to remove solid contaminants.
Features & Benefits
Large diameter pleat configuration for high flow rates
High dirt holding capability due to extensive surface area
99% rated filter media for consistent and repeatable performance
Injection molded cage for superior strength and element integrity
Thermally bonded construction
Variable pleat geometry ensures maximized usable surface area
MAXX-Pro 226 O-Ring: Extremely low risk of by pass for high quality fluids
MAXX-Pro 226 O-Ring: No loose parts to assemble for easy installation
MAXX-Pro 226 O-Ring: No springs or caps to lose, reduces the risk of by pass
MAXX-Pro 226 O-Ring: Broad chemical compatibility for many applications
MAXX-Pro 226 O-Ring: Convenient handle for easy removal
Markets & Applications
Amines
Hydrocarbon
Chemical Plants
Pipeline Fuels
Process Water
Wastewater
Utility Water
Cooling Water
