Pur-MAXX SG / Mem-Pleat SG Sterilizing Grade Polyethersulfone
Strainrite's sterilizing grade pleated polyethersulfone membrane cartridges are engineered to meet the highest standards of microorganism control for sterile fluids. These filter elements are validated for complete removal of Brevundimonas diminuta (ATCC 19146) at test concentrations of 107 CFU/cm2 (Colony Forming Units).
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Absolute Rated Retention | 0.2 |
| Maximum Differential Pressure |
Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty polypropylene |
| Integrity Test Values |
Pore size: 0.2-SG Bubble point: 50 psig Test pressure: 40 psig Air diffusion: ≤16 mL/min |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polyethersulfone |
| End Caps / Cage / Core | Polypropylene |
| Pleat Support Material | Polypropylene |
| Reinforcing Ring | 316 Stainless Steel |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone |
| Construction Method | Thermal bond |
| Toxicity | Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact |
| USP Physiochemical Tests for Plastics |
Ultrapure water extracts from multiple lots of cartridges were tested and shown to have values that comply with USP limits. Non volatile residue: <2 mg (USP limit: <15 mg) Heavy metals: <1 ppm (USP limit: <1 ppm) Residue on ignition: <2 mg (USP limit: <5 mg) Buffering capacity: <1 mL (USP limit: <10 mL) |
Advanced Features
| Specification | Detail |
|---|---|
| Sterilization | Cartridge can be sterilized via steam or autoclave: 20 times at 275°F (135°C). Cartridge may be sanitized in place with common sanitizing agents; contact factory for chemical compatibility. |
| Packaging Economy | Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | MPESG: 2.55" (6.48 cm) | PRMXESG: 2.7" (6.87 cm) |
| Approximate Surface Area | 6.5 square feet per 10" equivalent |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
This product is ideally suited for applications where microorganism contamination causes product defects or extra processing time due to increase fluid instability. These cartridges are produced utilizing a unique multi-pleated configuration integrating highly asymmetric and hydrophilic polyethersulfone membrane with exceptional pleat support materials. This novel multi-pleated approach increases cartridge life, strength and durability, and allows our filter cartridges to withstand multiple sterilization cycles without sacrificing product integrity.
These cartridges comply with FDA CFR Title 21 and USP Biological Reactivity for Class VI Plastics. By combining these ultra pure components with the low protein binding features of highly asymmetric hydrophilic polyethersulfone membrane makes them perfect for applications in the biopharmaceutical and bottled water industries.
Features & Benefits
Validated 0.2 µm absolute rated membrane configuration
High surface area membrane offers excellent life and flux rates while providing absolute filtration
Absolute-rated dual layer membrane provides reliable, consistent and repeatable filtrate quality

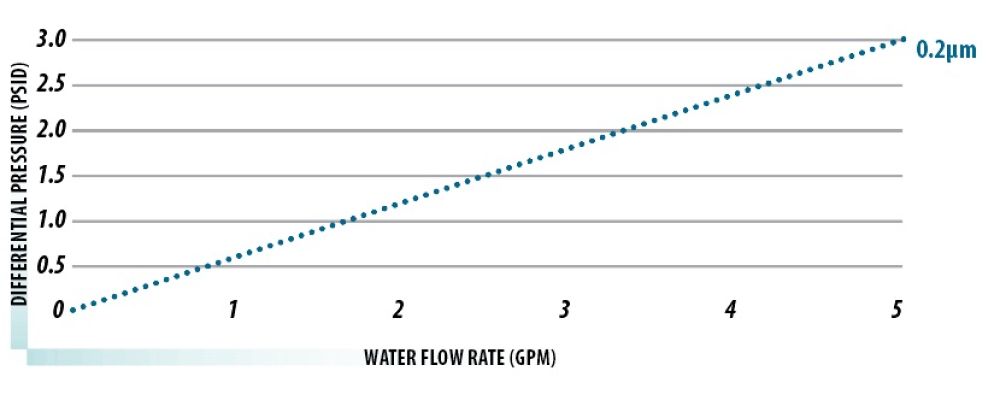

Low pressure drops yield higher flow rates and reduced processing time
Non-fiber shedding polypropylene support materials eliminate fiber migration
Pleat design for greater surface area — longer service life, fewer change outs and reduced operating costs
100% thermally bonded construction
Integrity tested
High strength design allowing for extended use and multi autoclave and hot water sanitization cycles
316 SS reinforced end treatments
All materials of construction are FDA compliant with CFR Title 21 and are bio-safe in accordance with USP Class VI
Validation guide available on request
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Final Filtration of WFI and CIP Water
Vaccines
Buffer Solutions
Cell Culture Purification
Diagnostics
Large Volume Parenterals
