PES-E
Strainrite's PES-E was developed for the microelectronics industry where a high degree of particle retention and/or constant bacterial barrier for effective sterilization is required.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Absolute Rated Retention (Nanometers) | 50, 100, 200, 450, 650, 800, 1200 |
| Maximum Differential Pressure |
Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty polypropylene |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polyethersulfone |
| End Caps | Polypropylene |
| Pleat Support Material | Polypropylene |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact |
Advanced Features
| Specification | Detail |
|---|---|
| Sterilization | Cartridge can be sterilized via steam or autoclave: 20 times at 275°F (135°C). Cartridge may be sanitized in place with common sanitizing agents; contact factory for chemical compatibility. |
| DI Water Specifications | All cartridges are 18 megohm flushed |
| Packaging Economy | Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton, 10 inch - 24 per carton, 20 inch - 12 per carton, 30 inch - 12 per carton, 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.7" (6.87 cm) |
| Approximate Surface Area | 6.8 square feet per 10" equivalent |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Hydrophilic asymmetric polyethersulfone membranes ensure excellent flow rates, broad chemical compatibility, low protein binding, low extractability, high mechanical strength, and temperature resistance in a variety of applications in the microelectronics industry. The PES-E is 100% integrity testable and utilizes Strainrite's double rinse process to ensure extremely low extractables. Polyethersulfone offers a broad range of chemical compatibility and temperature performance.
The PES-E meets USP Biological Reactivity Test, in vivo for class VI-121°C plastics. Sterilizable using industry recognized and accepted methods.
Features & Benefits
High surface area membrane offers excellent life and flux rates while providing absolute filtration
Absolute-rated membrane provides reliable, consistent and repeatable filtrate quality

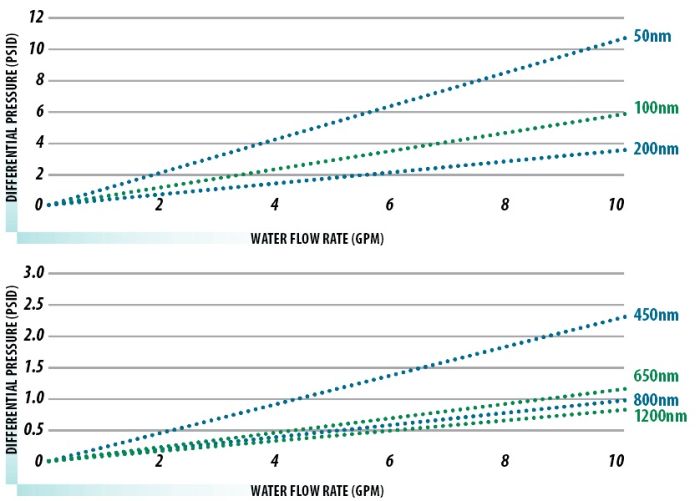

Low pressure drops yield higher flow rates and reduced processing time
Non-fiber shedding polypropylene support materials eliminate fiber migration
Integrity testable
Maximum pleat design for greater surface area, ensuring longer service life, fewer change outs and reduced operating costs per element
Thermally bonded construction without the use of adhesives or binders, resulting in lower extractables
High strength design allowing for extended use
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Semiconductor
Electronics
Deionized Water Systems
High Purity Chemical Filtration
Liquid Clarification
General Water Filtration
