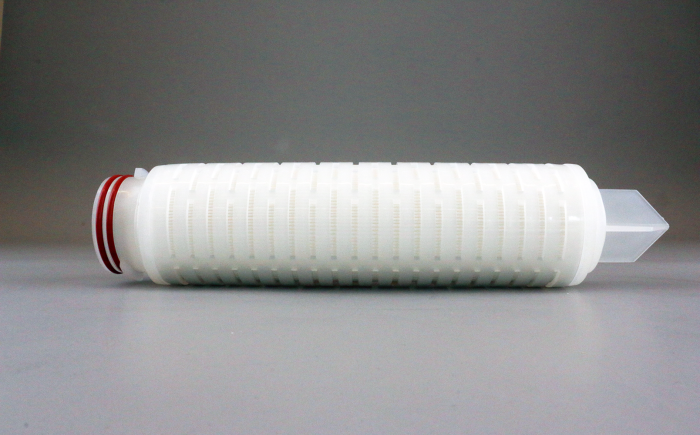

Ink-Jet Select IKS Dual-Density Polypropylene for Ink-Jet Inks
Strainrite's Ink-Jet Select IKS filter is another example of Strainrite's continued tradition of providing industry leading filtration solutions. Ink-Jet Select filters feature a graded pore density to maximize filter life and performance. IKS filters incorporate our proprietary melt blown, micro- and nano-fiber technology to achieve industry leading performance for both pigment and dye based ink-jet inks.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.3, 0.5, 1, 3, 5, 10, 15, 20, 40, 70, 90 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Efficiency |
IKS0.3 — BETA100 @ 0.3µm IKS0.5 — BETA100 @ 0.5µm IKS1 — BETA100 @ 1µm IKS3 — BETA100 @ 3µm IKS5 — BETA100 @ 5µm IKS10 — BETA100 @ 10µm IKS15 — BETA100 @ 15µm IKS20 — BETA100 @ 20µm IKS40 — BETA100 @ 40µm IKS70 — BETA100 @ 70µm IKS90 — BETA100 @ 90µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene micro/nano-fiber composite |
| End Caps | Polypropylene |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.68" (6.81 cm) |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
The Ink-Jet Select filters are manufactured without binders or resins, in our class 10,000 clean room resulting in an extremely clean non-fiber shedding filter. Due to our utilization of the unique graded pore density depth media this element is outstanding for removing gels, compared to traditional pleated polypropylene filters.
Features & Benefits
Absolute-rated media provides reliable, consistent and repeatable filtration results
Lower pressure drops, which yield higher flow rates and reduced processing time
100% polypropylene construction offers a wide range of chemical compatibility
Graded pore density pleat design to optimize service life, fewer change outs and reduced operating costs per cartridge
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Pigment Based Ink-Jet Inks
Dye Based Ink-Jet Inks
High Viscosity Ink-Jet Inks
Gel Removal
