Products Pleated Filter Cartridges Ink, Paint, Coatings & Household Chemicals

Ink-Jet IKP Polypropylene for Ink-Jet Inks

Strainrite's Ink-Jet IKP filter is another example of Strainrite's continued tradition of providing industry leading filtration solutions. IKP filters offer more surface area and less depth than the dual-density IKS filters to achieve industry leading performance as a final filter for pigment and dye based inkjet inks.

Download Spec Sheet (PDF)

Ink-Jet IKP Polypropylene for Ink-Jet Inks

Technical Specifications

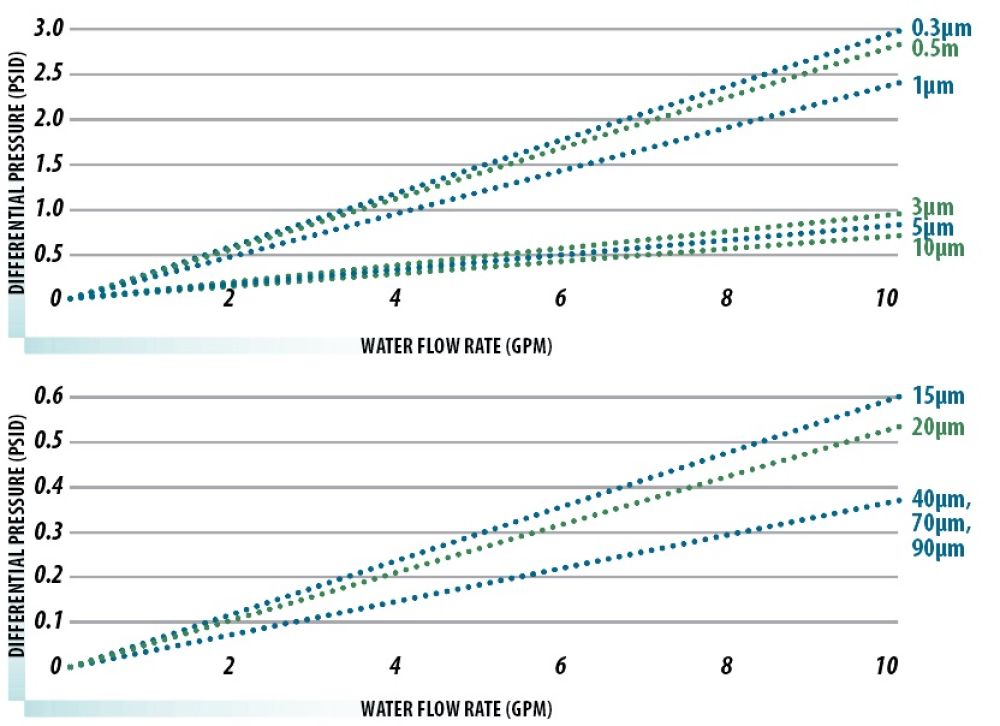

Filtration Performance

Specification	Detail
Retention Rating	0.3, 0.5, 1, 3, 5, 10, 15, 20, 40, 70, 90
Maximum Differential Pressure	Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C)
Maximum Operating Temperature	180°F (82°C) continuous duty

Materials & Compliance

Specification	Detail
Filter Media	Polypropylene
End Caps	Polypropylene
Cage/Core	Polypropylene
Seals	Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard
Construction Method	Thermal bond
Toxicity	All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520

Advanced Features

Specification	Detail
Packaging Economy	Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton \| 10 inch - 24 per carton \| 20 inch - 12 per carton \| 30 inch - 12 per carton \| 40 inch - 9 per carton

Physical Specifications

Specification	Detail
Outside Diameter	2.68" (6.81 cm)
Lengths	5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm)

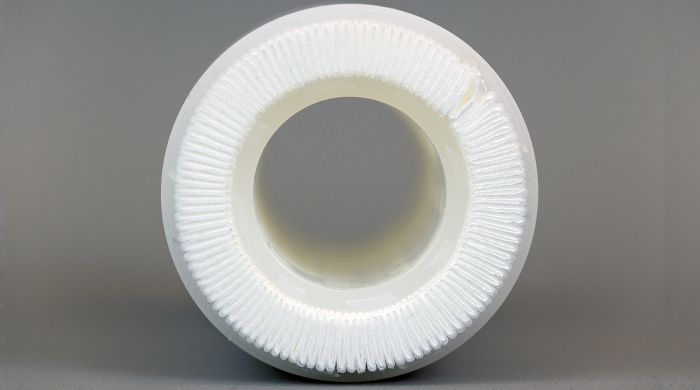

Product Overview

The Ink-Jet IKP filters are manufactured without binders or resins, in our class 10,000 clean room resulting in an extremely clean non-fiber shedding filter.
