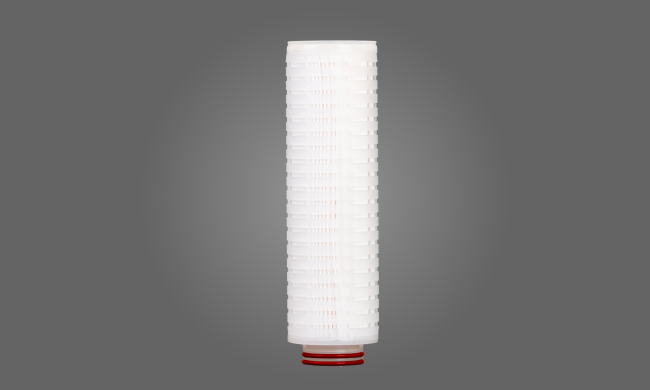

Ink-Jet IKG Microglass for Ink-Jet Inks
The Ink-Jet IKG filter is another example of Strainrite's continued tradition of providing industry leading filtration solutions.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | 0.5, 1, 3, 6, 10, 20, 40 |
| Maximum Differential Pressure | Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty polypropylene; 275°F (135°C) continuous duty polyester |
| Efficiency |
IKG0.5 — BETA100 @ 0.5µm IKG1 — BETA100 @ 1µm IKG3 — BETA100 @ 3µm IKG6 — BETA100 @ 6µm IKG10 — BETA100 @ 10µm IKG20 — BETA100 @ 20µm IKG40 — BETA100 @ 40µm |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Borosilicate microglass |
| End Caps | Polypropylene, polyester |
| Pleat Support Material | Polypropylene, polyester |
| Cage/Core | Polypropylene, polyester |
| Seals | Buna N, fluorocarbon, EPDM, silicone, FEP encapsulated fluorocarbon, FEP encapsulated silicone, PTFE foam, PTFE hard |
| Construction Method | Thermal bond |
| Toxicity | All components meet all relevant USP XXII Class VI test for biological safety and FDA requirements for contact with food and beverage per 21CFR177.1520 |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.68" (6.81 cm) |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
The Ink-Jet IKG filters are assembled without binders or resins, in our class 10,000 clean room, resulting in an extremely clean non-fiber shedding filter. Due to our utilization of the unique graded pore density depth media this element is outstanding for removing gels, compared to traditional pleated polypropylene filters.
Features & Benefits
Absolute-rated media provides reliable, consistent and repeatable filtration results
Lower pressure drops, which yield higher flow rates and reduced processing time
Thermally bonded construction ensures a cleaner filtrate while minimizing extractables
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Pigment Based Ink-Jet Inks
Dye Based Ink-Jet Inks
High Viscosity Ink-Jet Inks
Gel Removal
