Endo-MAXX CN Charged Nylon for Endotoxin Reduction
Strainrite's Endo-MAXX CN was developed for the filtration of fluids that require a high degree of particle and bacterial retention while achieving a two and a half log reduction of endotoxin.
Technical Specifications

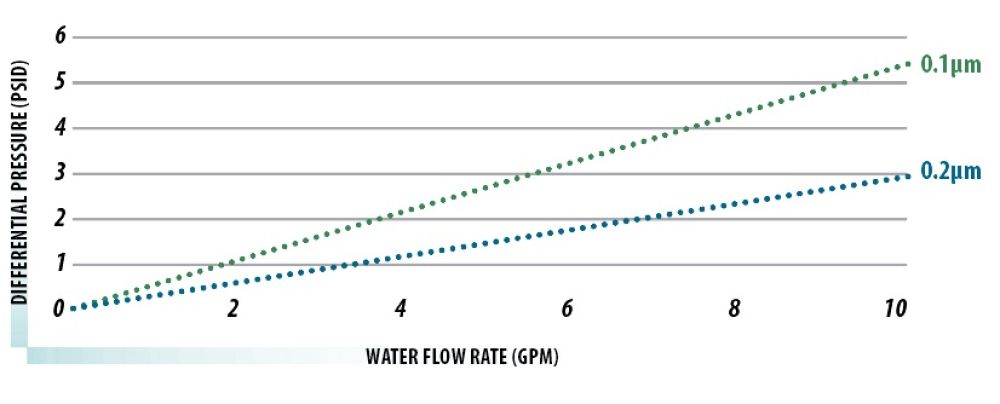

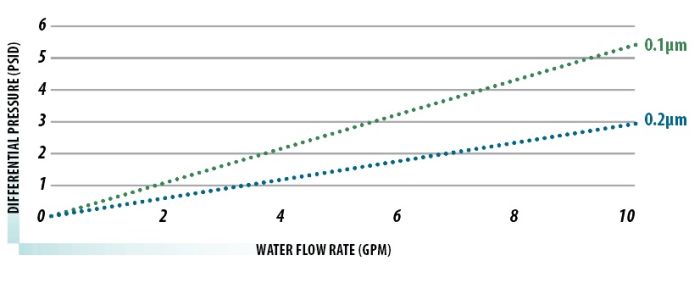

Filtration Performance
| Specification | Detail |
|---|---|
| Absolute Rated Retention | 0.1, 0.2 |
| Maximum Differential Pressure |
Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
| Endotoxin Reduction | The Endo-MAXX CN cartridge media has been third party verified to deliver a >2 log reduction of bacterial endotoxin using the gel-clot characterization method |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Charged Nylon 6,6 cast on Polyester |
| End Caps | Polypropylene |
| Pleat Support Material | Polypropylene, Polyester |
| Cage/Core | Polypropylene |
| Seals | Buna N, Fluorocarbon, EPDM, Silicone, FEP Encapsulated Fluorocarbon, FEP Encapsulated Silicone, PTFE Foam, PTFE Hard |
| Construction Method | Thermal bond |
| Toxicity | Cartridge materials meet USP Class VI and CFR 21 for food and beverage contact |
Advanced Features
| Specification | Detail |
|---|---|
| Sterilization | Cartridge can be sterilized via steam or autoclave: 20 times at 275°F (135°C). Cartridge may be sanitized in place with common sanitizing agents; contact factory for chemical compatibility. |
| Packaging Economy | Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.7" (6.87 cm) |
| Approximate Surface Area | 6.8 square feet per 10" equivalent |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Hydrophilic charged nylon membrane provides excellent flow rates, broad chemical compatibility, low extractability, high mechanical strength, and temperature resistance in a variety of industries for the biopharmaceutical and dialysis processes.
The Endo-MAXX CN meets USP Biological Reactivity Test, in vivo for class VI-121°C plastics. Sterilizable using industry recognized and accepted methods.
Features & Benefits
Integrity tested endotoxin removal filter
Absolute-rated membrane provides reliable, consistent and repeatable filtrate quality
Maximum pleat design for greater surface area, ensuring longer service life, fewer change outs and reduced operating costs per element
All materials of construction are FDA compliant with CFR Title 21, pharmaceutical grades are bio-safe in accordance with USP Class VI
Thermally bonded construction without the use of adhesives or binders, resulting in lower extractables
Positive zeta potential for removal of charged particles smaller than the absolute retention rating of the filter
Markets & Applications
Endotoxin Removal
High Purity Water
