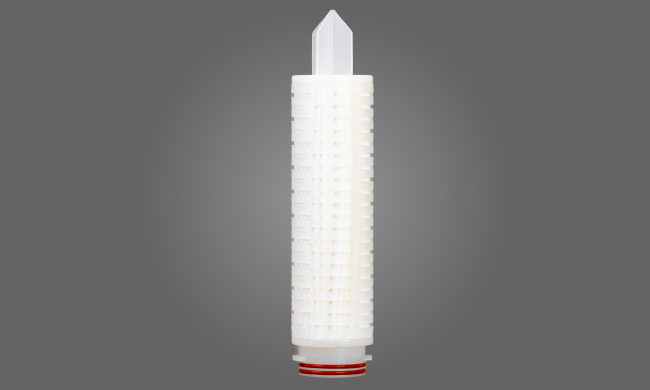

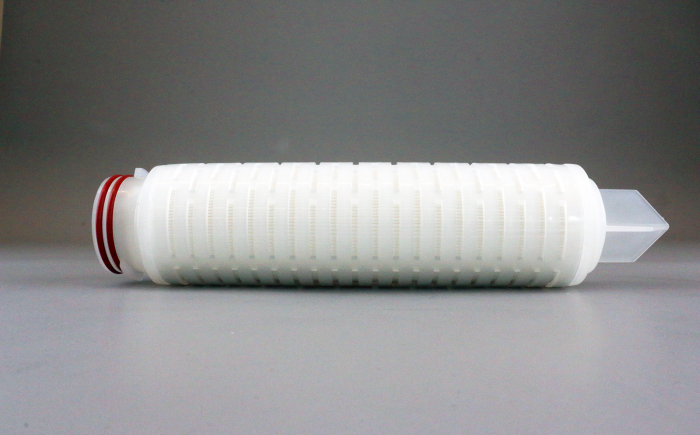

Aqua-Pro Cartridge Polypropylene for Drinking Water
Strainrite's Aqua-Pro Cartridge filters are engineered to produce the highest purity drinking water, by optimizing throughput while maintaining absolute rated performance that is both predictable and repeatable.
Technical Specifications
Filtration Performance
| Specification | Detail |
|---|---|
| Retention Rating | Crypto-Barrier |
| Maximum Differential Pressure |
Forward: 75 psid (5.1 bar) @ 75°F (24°C), 40 psid (2.8 bar) @ 180°F (82°C) Reverse: 50 psid (3.4 bar) @ 75°F (24°C) |
| Maximum Operating Temperature | 180°F (82°C) continuous duty |
Materials & Compliance
| Specification | Detail |
|---|---|
| Filter Media | Polypropylene |
| End Caps | Polypropylene |
| Pleat Support Material | Polypropylene |
| Cage/Core | Polypropylene |
| Seals | EPDM, Silicone |
| Construction Method | Thermal bond |
Advanced Features
| Specification | Detail |
|---|---|
| Packaging Economy |
Bulk packaging in case quantities to reduce material disposal: 5 inch - 48 per carton | 10 inch - 24 per carton | 20 inch - 12 per carton | 30 inch - 12 per carton | 40 inch - 9 per carton |
Physical Specifications
| Specification | Detail |
|---|---|
| Outside Diameter | 2.7" (6.87 cm) |
| Inside Diameter | 1.0" (2.54 cm) |
| Lengths | 5 inch (12.7 cm), 10 inch (25.4 cm), 20 inch (50.8 cm), 30 inch (76.2 cm), 40 inch (102 cm) |
Product Overview
Utilizing state-of-the-art online monitoring equipment and superior control over fiber diameter and web design, our continuous composite microfiber material delivers the industry's most uniform and consistent results.
Aqua-Pro Cartridge filters bring the strongest line of defense against waterborne diseases traced to cryptosporidium and giardia cysts. These organisms, potentially lethal to those with weakened or underdeveloped immune systems, are highly resistant to conventional water treatment processes such as chlorination, but are no match for the Aqua-Pro Cartridge filters, at an absolute 1 micron designed to exceed the ANSI/NSF Standard 53 of 99.95% for the removal of cysts.
Features & Benefits
Performance tested and verified by outside lab to comply with NSF/ANSI Standard 53 for reduction of cryptosporidium and giardia cysts
Meets the requirements of USP plastic Class VI
High surface area – high flow rates and long on-line service
Constructed entirely of polypropylene
Complies with FDA Title 21 of the Code of Federal Regulations Sections 174.5, and 177.1520, as applicable for food and beverage contact
Double O-ring style ends for the highest seal integrity
Various O-ring materials and configurations – easily retrofits most systems
Recommended Vessels
Vessels and housings recommended for use with this product.
Markets & Applications
Food and Beverage Applications
Drinking Water
