Bag and Large Diameter Hybrid Element Vessels

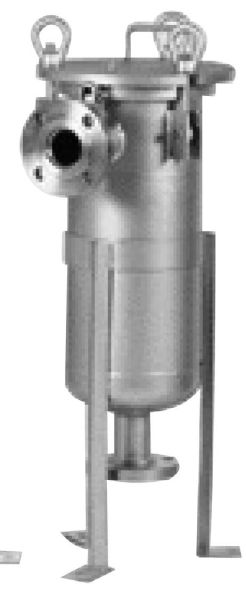

The SRHD Heavy Duty series is designed to handle your most difficult fluid filtration requirements. Our SRHD is made from heavy duty steel components and to strict quality standards, which allows our clients the ability to change from a non-stamped to an ASME UM stamped vessel at a nominal cost. The SRHD series incorporates our unique radial seal design that provides a hermetic seal between the basket and vessel. Utilizing a radial seal with our retainer baskets eliminates "basket rocking", which causes bypass as the basket becomes out of round. "Basket rocking" is common in low cost bag vessels that do not incorporate an O-ring seal and can cause unfiltered liquid bypass. The Strainrite Companies' SRHD, with a radial seal, has a machined surface that produces a positive seal to eliminate bypass. SRHD vessels incorporate a combination of unique qualities that places us at the top of single bag vessel design. Standard features include: a recessed basket, volume displacer welded to top cover, and a 304 stainless steel wire mesh basket to name a few. Our standard wire mesh baskets increase available filtration surface area up to 30% compared to cheaper perforated retainer baskets.

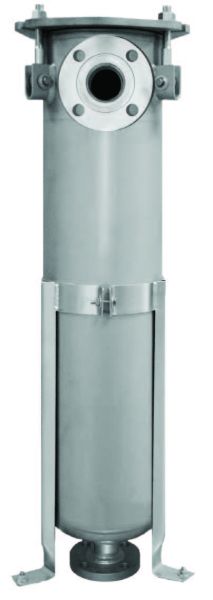

The SRID Industrial Duty series incorporates our unique radial seal design that provides a hermetic seal between the basket and vessel. Utilizing a radial seal with our retainer baskets eliminates "basket rocking", which causes bypass as the basket becomes out of round. "Basket rocking" is common in low cost bag vessels that do not incorporate an O-ring seal and can cause unfiltered liquid bypass. The SRID, with a radial seal, has a machined surface that produces a positive seal to eliminate bypass.

The SRL Low Flow Vessel is versatile in its ability to function as a strainer or add a filter bag and convert it to a liquid filtration housing unit. The SRL series vessels come in two standard sizes, tailored to your throughput requirements. The SRL 1-25 is rated for 30 gpm, and the SRL 1-50 at 65 gpm. All sizes are available in three different closure designs for ease of cleaning/replacing and for easy removal without specific tools.

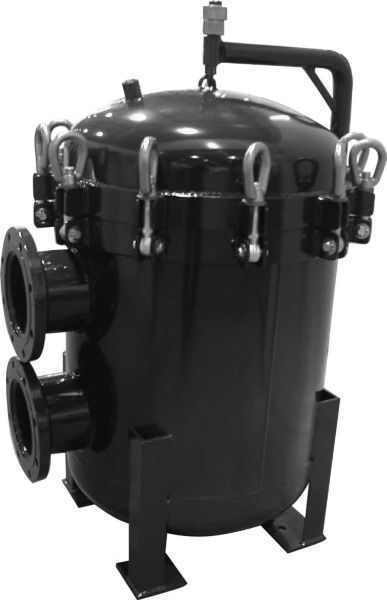

The SRMB multi-basket filter vessel offers large surface areas capable of handling up to 5600 gpm in a single housing. Increasing surface area allows for longer processing time prior to filter change-out.

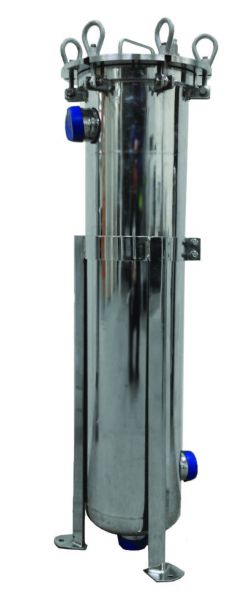

The SRVB Value Design vessels provide economical filtration of a wide variety of liquids in a lightweight, externally polished stainless steel design, with features including a swing bolt secured, quick opening cover and an internal positive pressure bag hold-down device. The SRVB vessels accommodate one standard

The SRX X-Tra Seal vessel series was developed by our in-house engineering team for the expressed purpose of eliminating vessel-to-bag bypass, a critical element when high efficiency filtration is required. Strainrite's proprietary "Five Points of Seal" design has proven to be a major advance in filter vessel technology, performing admirably where the competition hasn't.
